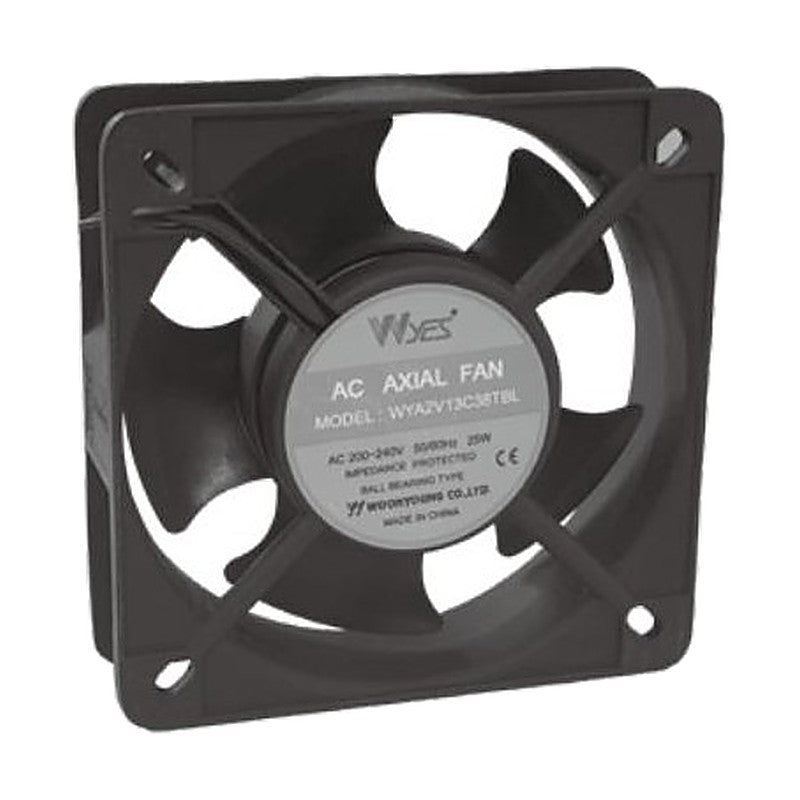

Woonyoung A13C38T Series AC Cooling Fan, 136 x 136 x 38 mm

Woonyoung A13C38T Series AC Cooling Fan, 136 x 136 x 38 mm

Square 136 x 136 x 38 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 136 x 136 x 38 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Shaded pole induction motor
  • Lead wire: AWG#22 UL1569 (optional)
  • Operating temperature -10 to +65 C

Specifications

Size 136 x 136 x 38 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Shaded pole induction motor
Terminals 0.5 mm
Lead wire AWG#22 UL1569 (optional)
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Speed 2600/3050 rpm
Noise 46/53 dBA
Air flow 192/233 m3/h (113/137 CFM)
WYA1V13C38TBT Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.34 A | Power: 25 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
WYA2V13C38TBT Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.2/0.15 A | Power: 25/18 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
WYA2V13C38TBL Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.2/0.15 A | Power: 25/18 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
Cooling FansWoonyoung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A13C38T Series AC Cooling Fan, 136 x 136 x 38 mm

Brand Woonyoung·Cooling Fans

Available part numbers (3)

WYA1V13C38TBT, WYA2V13C38TBT, WYA2V13C38TBL

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V13C38TBTVoltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.34 A | Power: 25 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
WYA2V13C38TBTVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.2/0.15 A | Power: 25/18 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
WYA2V13C38TBLVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.2/0.15 A | Power: 25/18 W | Speed: 2600/3050 rpm | Noise: 46/53 dBA | Air flow: 192/233 m3/h (113/137 CFM) | Bearing: Ball bearing | Weight: 550 g
