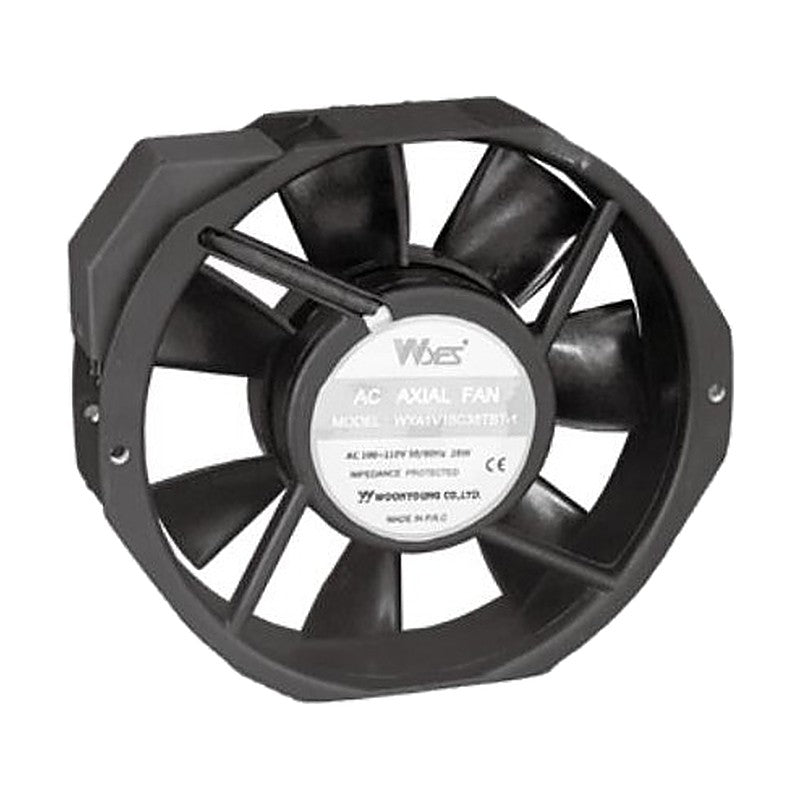

Woonyoung A15C38T Series AC Cooling Fan, 172 x 150 x 38 mm

Woonyoung A15C38T Series AC Cooling Fan, 172 x 150 x 38 mm

Square 172 x 150 x 38 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 172 x 150 x 38 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Impedance protected
  • Lead wire: 2 wire, AWG#22 UL1015
  • Operating temperature -10 to +65 C

Specifications

Size 172 x 150 x 38 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Impedance protected
Terminals 0.5 mm
Lead wire 2 wire, AWG#22 UL1015
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Noise 56/60 dBA
Air flow 314/358 m3/h (185/211 CFM)
Weight 680 g
WYA1V15C38TBT Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.3/0.31 A | Power: 28/33 W | Speed: 2700/2850 rpm | Noise: 56/60 dBA | Air flow: 314/358 m3/h (185/211 CFM) | Bearing: Ball bearing | Weight: 680 g
WYA2V15C38TBT Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.18/0.18 A | Power: 33/35 W | Speed: 2750/3100 rpm | Noise: 56/60 dBA | Air flow: 314/358 m3/h (185/211 CFM) | Bearing: Ball bearing | Weight: 680 g
Cooling FansWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A15C38T Series AC Cooling Fan, 172 x 150 x 38 mm

Brand Woonyoung·Cooling Fans

Available part numbers (2)

WYA1V15C38TBT, WYA2V15C38TBT

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V15C38TBTVoltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.3/0.31 A | Power: 28/33 W | Speed: 2700/2850 rpm | Noise: 56/60 dBA | Air flow: 314/358 m3/h (185/211 CFM) | Bearing: Ball bearing | Weight: 680 g
WYA2V15C38TBTVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.18/0.18 A | Power: 33/35 W | Speed: 2750/3100 rpm | Noise: 56/60 dBA | Air flow: 314/358 m3/h (185/211 CFM) | Bearing: Ball bearing | Weight: 680 g
