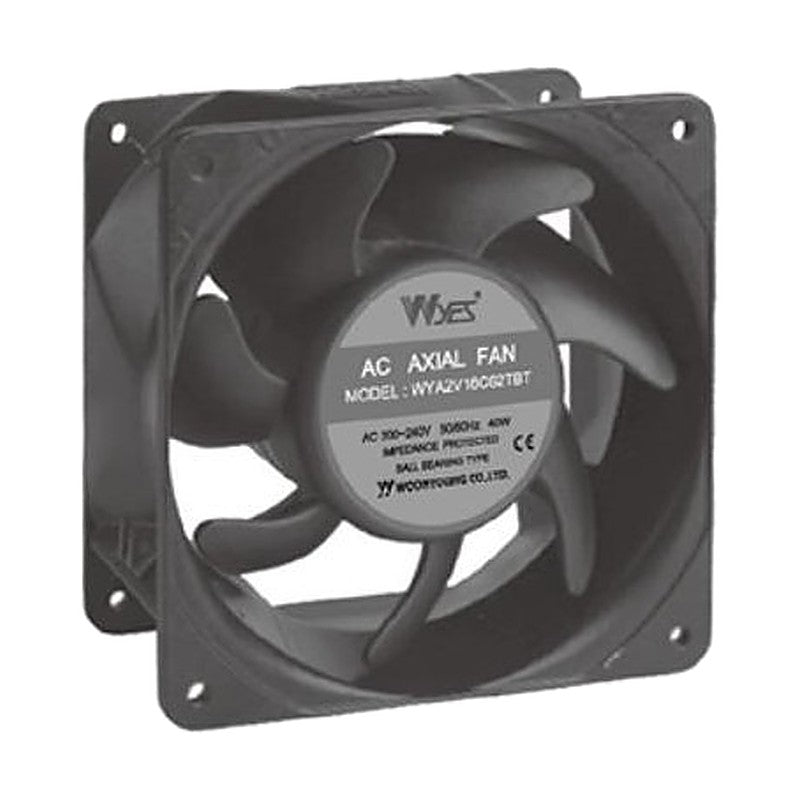

Woonyoung A16C62T Series AC Cooling Fan, 160 x 160 x 62 mm

Woonyoung A16C62T Series AC Cooling Fan, 160 x 160 x 62 mm

Square 160 x 160 x 62 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 160 x 160 x 62 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Capacitor run motor
  • Lead wire: 2 wire, AWG#22 UL1015
  • Operating temperature -10 to +65 C

Specifications

Size 160 x 160 x 62 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Capacitor run motor
Terminals 0.5 mm
Lead wire 2 wire, AWG#22 UL1015
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Speed 2750/3100 rpm
Noise 54/59 dBA
Air flow 408/465 m3/h (240/275 CFM)
WYA1V16C62TBT-1C Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.38/0.37 A | Power: 42/40 W | Speed: 2750/3100 rpm | Noise: 54/59 dBA | Air flow: 408/465 m3/h (240/275 CFM) | Bearing: Ball bearing | Weight: 1200 g
WYA2V16C62TBT-1C Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.15/0.17 A | Power: 32/38 W | Speed: 2750/3100 rpm | Noise: 54/59 dBA | Air flow: 408/465 m3/h (240/275 CFM) | Bearing: Ball bearing | Weight: 1200 g
Cooling FansWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A16C62T Series AC Cooling Fan, 160 x 160 x 62 mm

Brand Woonyoung·Cooling Fans

Available part numbers (2)

WYA1V16C62TBT-1C, WYA2V16C62TBT-1C

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V16C62TBT-1CVoltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.38/0.37 A | Power: 42/40 W | Speed: 2750/3100 rpm | Noise: 54/59 dBA | Air flow: 408/465 m3/h (240/275 CFM) | Bearing: Ball bearing | Weight: 1200 g
WYA2V16C62TBT-1CVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.15/0.17 A | Power: 32/38 W | Speed: 2750/3100 rpm | Noise: 54/59 dBA | Air flow: 408/465 m3/h (240/275 CFM) | Bearing: Ball bearing | Weight: 1200 g
