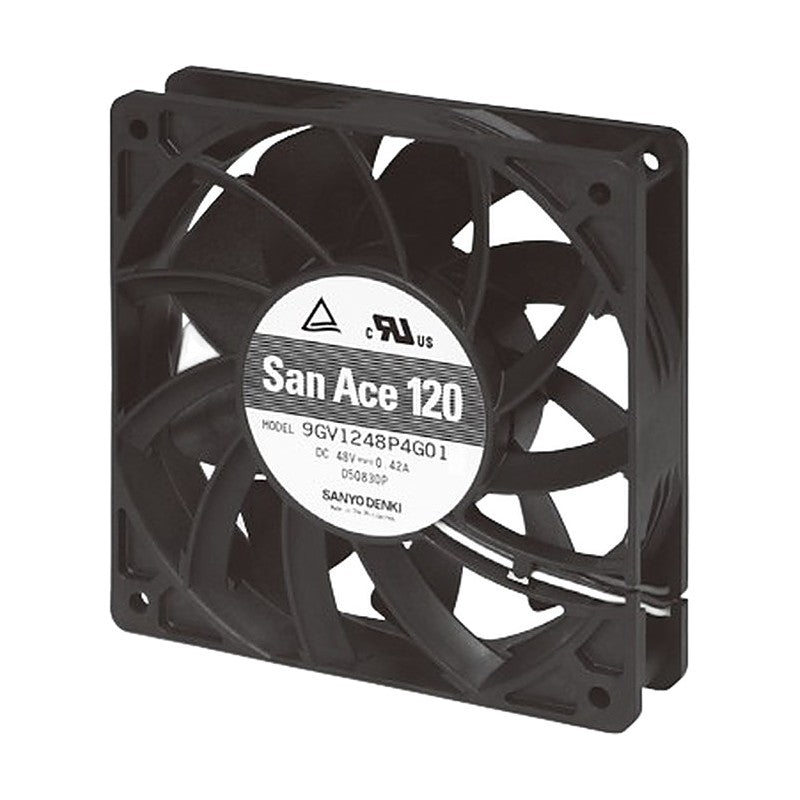

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (GV Type)

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (GV Type)

The San Ace 120 GV Type is a DC axial cooling fan in a 120x120x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,650 to 5,100 min-1 with maximum air flow up to 4.83 m3/min and maximum static pressure up to 224 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

PWM duty cycle 100 / 0 %
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 260 g
9GV1212P4G01 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 1.68 / 0.18 A | Rated input: 20.16 / 2.16 W | Speed: 5,100 / 1,650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1224P4G01 Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.84 / 0.13 A | Rated input: 20.16 / 3.12 W | Speed: 5100 / 1650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1248P4G01 Rated voltage: 48 V | Operating voltage range: 40.8 to 60.0 V | PWM duty cycle: 100 / 0 % | Rated current: 0.42 / 0.07 A | Rated input: 20.16 / 3.36 W | Speed: 5,100 / 1,650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1248P4H01 Rated voltage: 48 V | Operating voltage range: 40.8 to 60.0 V | PWM duty cycle: 100 / 0 % | Rated current: 0.33 / 0.07 A | Rated input: 15.84 / 3.36 W | Speed: 4,600 / 1,650 min-1 | Max air flow: 4.35 / 1.56 m3/min (154 / 55.1 CFM) | Max static pressure: 182 / 23.5 Pa (0.73 / 0.09 inchH2O) | Noise: 55 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120 DC Axial Fan 120x120x25 mm (GV Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9GV1212P4G01, 9GV1224P4G01, 9GV1248P4G01, 9GV1248P4H01

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GV1212P4G01Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 1.68 / 0.18 A | Rated input: 20.16 / 2.16 W | Speed: 5,100 / 1,650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1224P4G01Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.84 / 0.13 A | Rated input: 20.16 / 3.12 W | Speed: 5100 / 1650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1248P4G01Rated voltage: 48 V | Operating voltage range: 40.8 to 60.0 V | PWM duty cycle: 100 / 0 % | Rated current: 0.42 / 0.07 A | Rated input: 20.16 / 3.36 W | Speed: 5,100 / 1,650 min-1 | Max air flow: 4.83 / 1.56 m3/min (171 / 55.1 CFM) | Max static pressure: 224 / 23.5 Pa (0.90 / 0.09 inchH2O) | Noise: 58 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
9GV1248P4H01Rated voltage: 48 V | Operating voltage range: 40.8 to 60.0 V | PWM duty cycle: 100 / 0 % | Rated current: 0.33 / 0.07 A | Rated input: 15.84 / 3.36 W | Speed: 4,600 / 1,650 min-1 | Max air flow: 4.35 / 1.56 m3/min (154 / 55.1 CFM) | Max static pressure: 182 / 23.5 Pa (0.73 / 0.09 inchH2O) | Noise: 55 / 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 260 g
