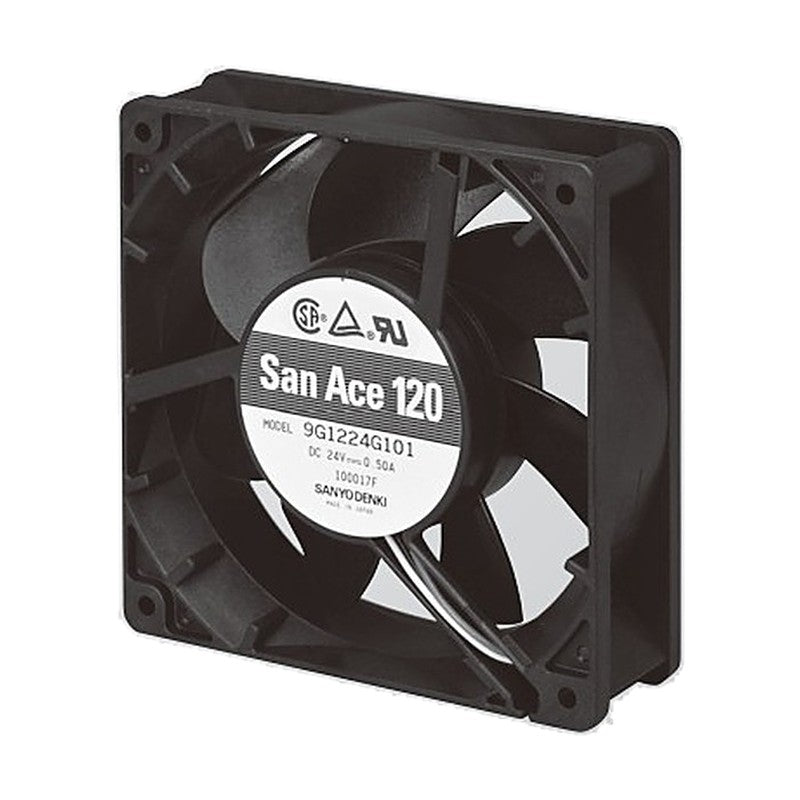

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (G Type)

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (G Type)

The San Ace 120 G Type is a DC axial cooling fan in a 120x120x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,950 to 3,600 min-1 with maximum air flow up to 3.88 m3/min and maximum static pressure up to 135 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x38 mm
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 330 g
9G1212G101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.98 A | Rated input: 11.76 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212E101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.61 A | Rated input: 7.32 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212H101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.38 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212F101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.28 A | Rated input: 3.36 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212M101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224G101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.50 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224E101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.34 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224H101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.22 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224F101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224M101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248G101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.25 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248E101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.17 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248H101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248F101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248M101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
DC Axial FansSanyo Denki
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (G Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (15)

9G1212G101, 9G1212E101, 9G1212H101, 9G1212F101, 9G1212M101, 9G1224G101, 9G1224E101, 9G1224H101, 9G1224F101, 9G1224M101 + 5 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9G1212G101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.98 A | Rated input: 11.76 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212E101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.61 A | Rated input: 7.32 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212H101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.38 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212F101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.28 A | Rated input: 3.36 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1212M101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224G101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.50 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224E101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.34 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224H101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.22 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224F101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1224M101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248G101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.25 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248E101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.17 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248H101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248F101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
9G1248M101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 330 g
