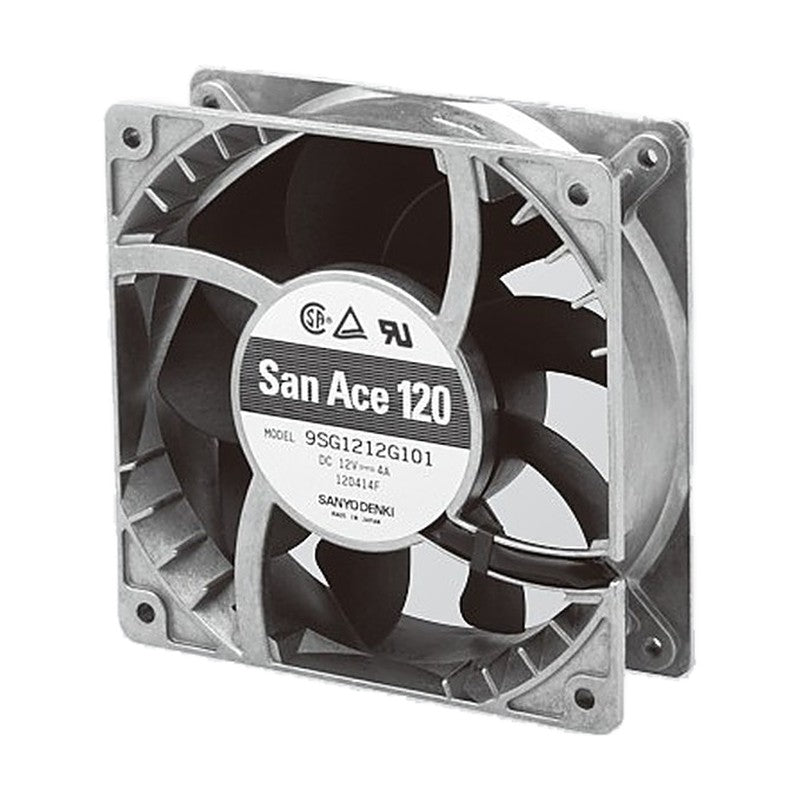

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (SG Type)

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (SG Type)

The San Ace 120 SG Type is a DC axial cooling fan in a 120x120x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 6,000 to 6,000 min-1 with maximum air flow up to 7.35 m3/min and maximum static pressure up to 340 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x38 mm
Rated input 48.0 W
Speed 6,000 min-1
Max air flow 7.35 m3/min (260 CFM)
Max static pressure 340 Pa (1.37 inchH2O)
Noise 64 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 400 g
9SG1212G101 Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 4.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
9SG1224G101 Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 2.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
9SG1248G101 Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 1.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120 DC Axial Fan 120x120x38 mm (SG Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9SG1212G101, 9SG1224G101, 9SG1248G101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9SG1212G101Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 4.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
9SG1224G101Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 2.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
9SG1248G101Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 1.0 A | Rated input: 48.0 W | Speed: 6,000 min-1 | Max air flow: 7.35 m3/min (260 CFM) | Max static pressure: 340 Pa (1.37 inchH2O) | Noise: 64 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 400 g
