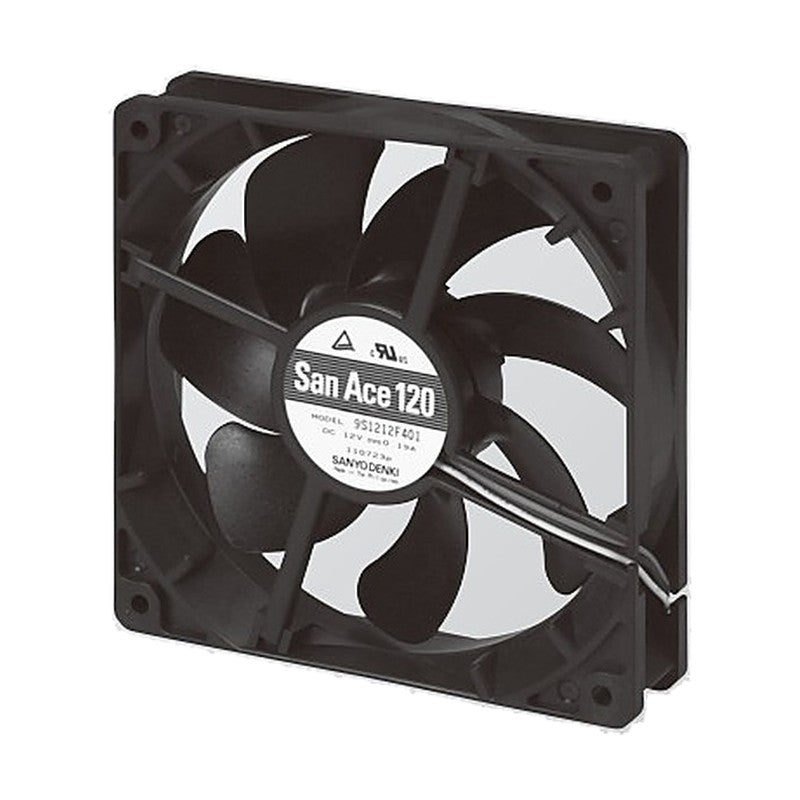

Sanyo Denki San Ace 120 Silent DC Fan 120x120x25 mm (S Type)

Sanyo Denki San Ace 120 Silent DC Fan 120x120x25 mm (S Type)

The San Ace 120 S Type is a low-noise (silent) DC axial cooling fan in a 120x120x25 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 1,500 to 2,700 min-1 with maximum air flow up to 2.45 m3/min and maximum static pressure up to 45.2 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x25 mm
Rated voltage 12 V
Expected life 40,000 h
Mass 140 g
9S1212H401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.2 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 2,700 min-1 | Max air flow: 2.45 m3/min (86.5 CFM) | Max static pressure: 45.2 Pa (0.18 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 140 g
9S1212F401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.8 V | Rated current: 0.19 A | Rated input: 2.28 W | Speed: 2,200 min-1 | Max air flow: 2.00 m3/min (70.6 CFM) | Max static pressure: 30.0 Pa (0.12 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
9S1212M401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 1,850 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 22.7 Pa (0.09 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
9S1212L401 Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,500 min-1 | Max air flow: 1.36 m3/min (48.1 CFM) | Max static pressure: 14.9 Pa (0.06 inchH2O) | Noise: 17 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120 Silent DC Fan 120x120x25 mm (S Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9S1212H401, 9S1212F401, 9S1212M401, 9S1212L401

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9S1212H401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.2 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 2,700 min-1 | Max air flow: 2.45 m3/min (86.5 CFM) | Max static pressure: 45.2 Pa (0.18 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 140 g
9S1212F401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.8 V | Rated current: 0.19 A | Rated input: 2.28 W | Speed: 2,200 min-1 | Max air flow: 2.00 m3/min (70.6 CFM) | Max static pressure: 30.0 Pa (0.12 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
9S1212M401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 1,850 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 22.7 Pa (0.09 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
9S1212L401Size: 120x120x25 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,500 min-1 | Max air flow: 1.36 m3/min (48.1 CFM) | Max static pressure: 14.9 Pa (0.06 inchH2O) | Noise: 17 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 140 g
