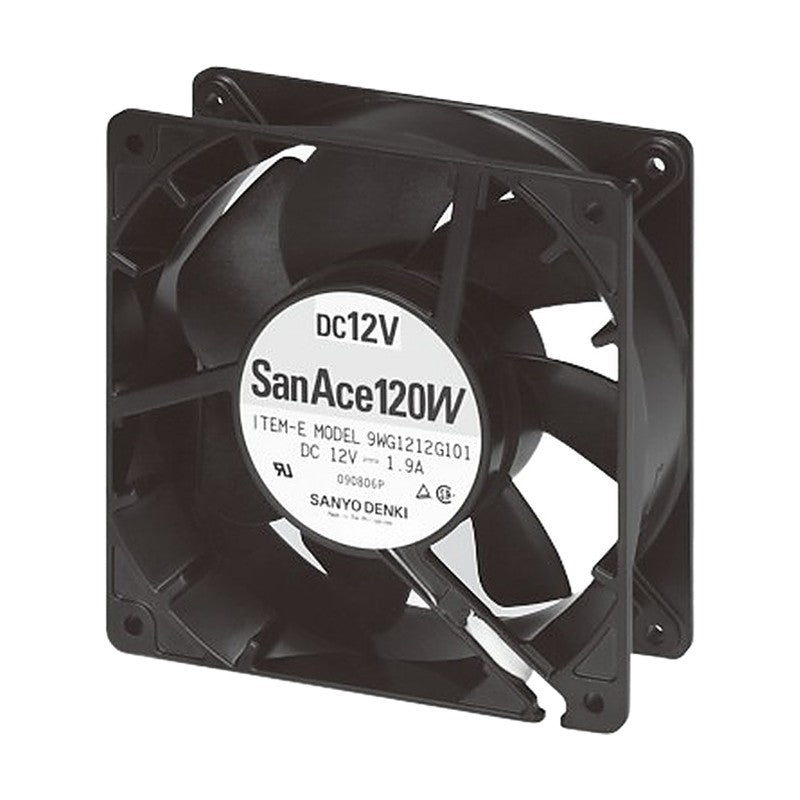

Sanyo Denki San Ace 120W Splash Proof DC Fan 120x120x38 mm (WG Type)

Sanyo Denki San Ace 120W Splash Proof DC Fan 120x120x38 mm (WG Type)

The San Ace 120W WG Type is a splash proof DC axial cooling fan in a 120x120x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,950 to 3,600 min-1 with maximum air flow up to 3.88 m3/min and maximum static pressure up to 135 Pa
  • The frame is made of aluminum
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 120x120x38 mm
Operating temperature -10 to +70 °C
Mass 410 g
9WG1212G101-E Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.98 A | Rated input: 11.76 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1212E101-E Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.61 A | Rated input: 7.32 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1212H101-E Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.38 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1212F101-E Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.28 A | Rated input: 3.36 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1212M101-E Size: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224G101-E Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.50 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1224E101-E Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.34 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1224H101-E Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.22 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224F101-E Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224M101-E Size: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248G101-E Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.25 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1248E101-E Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.17 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1248H101-E Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248F101-E Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248M101-E Size: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
DC Axial FansSanyo Denki
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 120W Splash Proof DC Fan 120x120x38 mm (WG Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (15)

9WG1212G101-E, 9WG1212E101-E, 9WG1212H101-E, 9WG1212F101-E, 9WG1212M101-E, 9WG1224G101-E, 9WG1224E101-E, 9WG1224H101-E, 9WG1224F101-E, 9WG1224M101-E + 5 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WG1212G101-ESize: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.98 A | Rated input: 11.76 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1212E101-ESize: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.61 A | Rated input: 7.32 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1212H101-ESize: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.38 A | Rated input: 4.56 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1212F101-ESize: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.28 A | Rated input: 3.36 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1212M101-ESize: 120x120x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224G101-ESize: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.50 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1224E101-ESize: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.34 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1224H101-ESize: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.22 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224F101-ESize: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1224M101-ESize: 120x120x38 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.11 A | Rated input: 2.64 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248G101-ESize: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.25 A | Rated input: 12 W | Speed: 3,600 min-1 | Max air flow: 3.88 m3/min (137 CFM) | Max static pressure: 135 Pa (0.542 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1248E101-ESize: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.17 A | Rated input: 8.16 W | Speed: 3,100 min-1 | Max air flow: 3.34 m3/min (118 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 80,000 h | Mass: 410 g
9WG1248H101-ESize: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,600 min-1 | Max air flow: 2.80 m3/min (99 CFM) | Max static pressure: 70.4 Pa (0.283 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248F101-ESize: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 2,280 min-1 | Max air flow: 2.45 m3/min (87 CFM) | Max static pressure: 54.2 Pa (0.218 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
9WG1248M101-ESize: 120x120x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.07 A | Rated input: 3.36 W | Speed: 1,950 min-1 | Max air flow: 2.10 m3/min (74 CFM) | Max static pressure: 39.6 Pa (0.159 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 410 g
