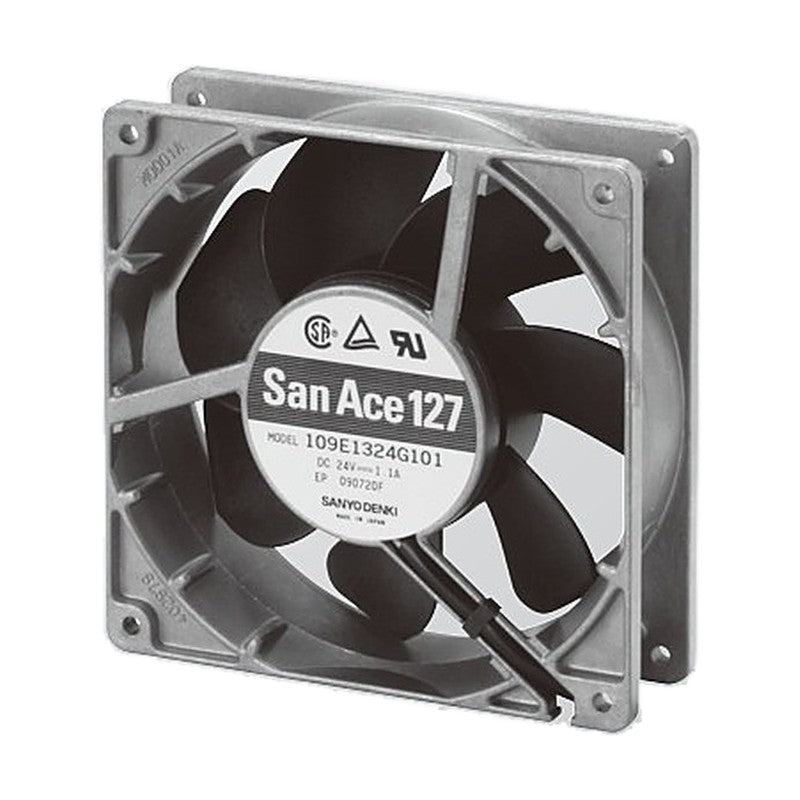

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Aluminum Frame)

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Aluminum Frame)

The San Ace 127 is a DC axial cooling fan in a 127x127x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 3,450 to 4,550 min-1 with maximum air flow up to 5.66 m3/min and maximum static pressure up to 216 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 127x127x38 mm
Mass 400 g
109E1312A101 Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.4 A | Rated input: 16.8 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1312S101 Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1324G101 Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.1 A | Rated input: 25.1 W | Speed: 4,550 min-1 | Max air flow: 5.66 m3/min (200 CFM) | Max static pressure: 216 Pa (0.867 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 400 g
109E1324A101 Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.7 A | Rated input: 16.8 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1324S101 Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.53 A | Rated input: 12.7 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1348G101 Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.54 A | Rated input: 25.9 W | Speed: 4,550 min-1 | Max air flow: 5.66 m3/min (200 CFM) | Max static pressure: 216 Pa (0.867 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 400 g
109E1348A101 Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.36 A | Rated input: 17.3 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1348S101 Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.28 A | Rated input: 13.4 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
DC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Aluminum Frame)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (8)

109E1312A101, 109E1312S101, 109E1324G101, 109E1324A101, 109E1324S101, 109E1348G101, 109E1348A101, 109E1348S101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109E1312A101Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.4 A | Rated input: 16.8 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1312S101Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1324G101Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.1 A | Rated input: 25.1 W | Speed: 4,550 min-1 | Max air flow: 5.66 m3/min (200 CFM) | Max static pressure: 216 Pa (0.867 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 400 g
109E1324A101Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.7 A | Rated input: 16.8 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1324S101Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.53 A | Rated input: 12.7 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1348G101Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.54 A | Rated input: 25.9 W | Speed: 4,550 min-1 | Max air flow: 5.66 m3/min (200 CFM) | Max static pressure: 216 Pa (0.867 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 400 g
109E1348A101Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.36 A | Rated input: 17.3 W | Speed: 3,850 min-1 | Max air flow: 4.81 m3/min (170 CFM) | Max static pressure: 155 Pa (0.622 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
109E1348S101Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.28 A | Rated input: 13.4 W | Speed: 3,450 min-1 | Max air flow: 4.37 m3/min (154 CFM) | Max static pressure: 125 Pa (0.502 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 400 g
