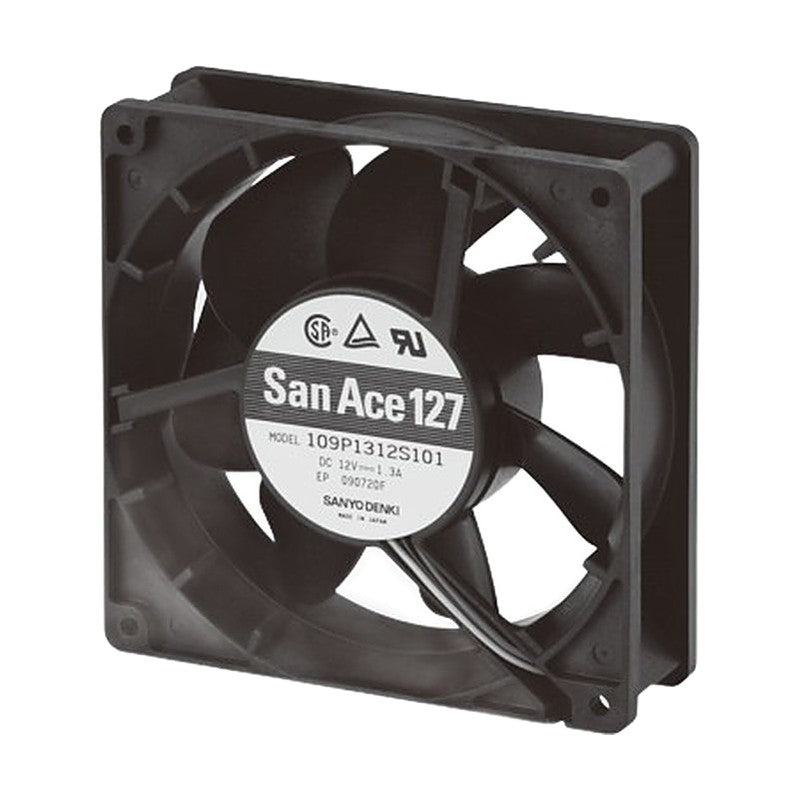

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Plastic Frame)

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Plastic Frame)

The San Ace 127 is a DC axial cooling fan in a 127x127x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,950 to 3,300 min-1 with maximum air flow up to 4.2 m3/min and maximum static pressure up to 117.6 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 127x127x38 mm
Operating temperature -10 to +60 °C
Expected life 40,000 h
Mass 350 g
109P1312S101 Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.3 A | Rated input: 15.6 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1312H101 Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.82 A | Rated input: 9.84 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1324S101 Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.55 A | Rated input: 13.2 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1324H101 Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.41 A | Rated input: 9.84 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1348S101 Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.3 A | Rated input: 14.4 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1348H101 Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 127 DC Axial Fan 127x127x38 mm (Plastic Frame)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

109P1312S101, 109P1312H101, 109P1324S101, 109P1324H101, 109P1348S101, 109P1348H101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109P1312S101Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.3 A | Rated input: 15.6 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1312H101Size: 127x127x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.82 A | Rated input: 9.84 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1324S101Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.55 A | Rated input: 13.2 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1324H101Size: 127x127x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.41 A | Rated input: 9.84 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1348S101Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.3 A | Rated input: 14.4 W | Speed: 3,300 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 117.6 Pa (0.472 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
109P1348H101Size: 127x127x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,950 min-1 | Max air flow: 3.8 m3/min (134 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 45 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 350 g
