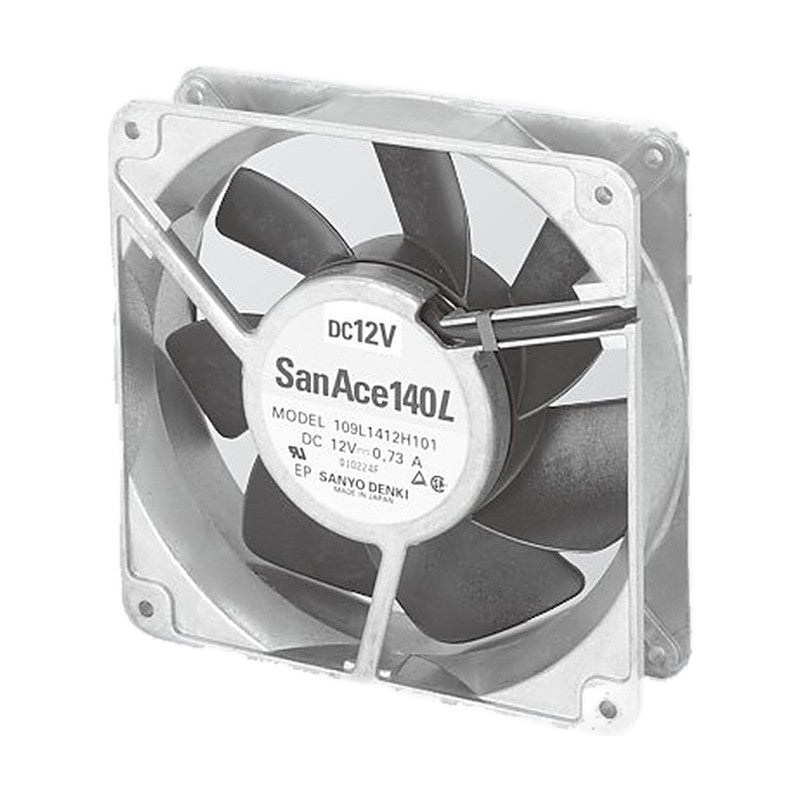

Sanyo Denki San Ace 140L Long Life DC Fan 140x140x38 mm

Sanyo Denki San Ace 140L Long Life DC Fan 140x140x38 mm

The San Ace 140L is a long life DC axial cooling fan in a 140x140x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,900 to 2,600 min-1 with maximum air flow up to 4.5 m3/min and maximum static pressure up to 98 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 140x140x38 mm
Operating temperature -10 to +70 °C
Expected life 100,000 h
Mass 600 g
109L1412H101 Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.73 A | Rated input: 8.76 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1412M101 Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.3 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1424H101 Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1424M101 Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1448H101 Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1448M101 Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 140L Long Life DC Fan 140x140x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

109L1412H101, 109L1412M101, 109L1424H101, 109L1424M101, 109L1448H101, 109L1448M101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109L1412H101Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.73 A | Rated input: 8.76 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1412M101Size: 140x140x38 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.3 A | Rated input: 3.6 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1424H101Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.37 A | Rated input: 8.88 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1424M101Size: 140x140x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.16 A | Rated input: 3.84 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1448H101Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.2 A | Rated input: 9.6 W | Speed: 2,600 min-1 | Max air flow: 4.5 m3/min (159 CFM) | Max static pressure: 98 Pa (0.394 inchH2O) | Noise: 46 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
109L1448M101Size: 140x140x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.09 A | Rated input: 4.32 W | Speed: 1,900 min-1 | Max air flow: 3.3 m3/min (117 CFM) | Max static pressure: 52 Pa (0.209 inchH2O) | Noise: 38 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 600 g
