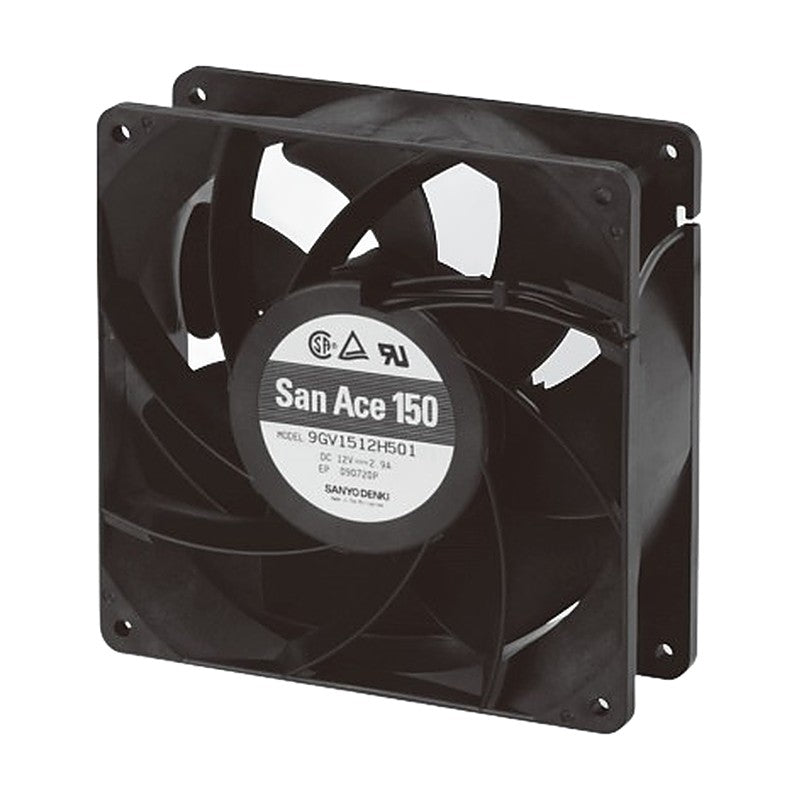

• Sanyo Denki San Ace 150 DC Axial Fan 150x150x50 mm (GV Type)
1 1

Sanyo Denki San Ace 150 DC Axial Fan 150x150x50 mm (GV Type)

Sanyo Denki San Ace 150 DC Axial Fan 150x150x50 mm (GV Type)

The San Ace 150 GV Type is a DC axial cooling fan in a 150x150x50 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 3,000 to 3,900 min-1 with maximum air flow up to 8.54 m3/min and maximum static pressure up to 210 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 150x150x50 mm
Rated voltage 12 V
Operating voltage range 10.2 to 13.8 V
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 450 g
9GV1512H501 Size: 150x150x50 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.9 A | Rated input: 34.8 W | Speed: 3,900 min-1 | Max air flow: 8.54 m3/min (300 CFM) | Max static pressure: 210 Pa (0.84 inchH2O) | Noise: 61 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 450 g
9GV1512M501 Size: 150x150x50 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,000 min-1 | Max air flow: 6.35 m3/min (224 CFM) | Max static pressure: 132 Pa (0.53 inchH2O) | Noise: 53 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 450 g
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 150 DC Axial Fan 150x150x50 mm (GV Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GV1512H501, 9GV1512M501

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GV1512H501Size: 150x150x50 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.9 A | Rated input: 34.8 W | Speed: 3,900 min-1 | Max air flow: 8.54 m3/min (300 CFM) | Max static pressure: 210 Pa (0.84 inchH2O) | Noise: 61 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 450 g
9GV1512M501Size: 150x150x50 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,000 min-1 | Max air flow: 6.35 m3/min (224 CFM) | Max static pressure: 132 Pa (0.53 inchH2O) | Noise: 53 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 450 g
