Sanyo Denki San Ace 150W Splash Proof DC Centrifugal Fan dia. 150x35 mm

Sanyo Denki San Ace 150W Splash Proof DC Centrifugal Fan dia. 150x35 mm

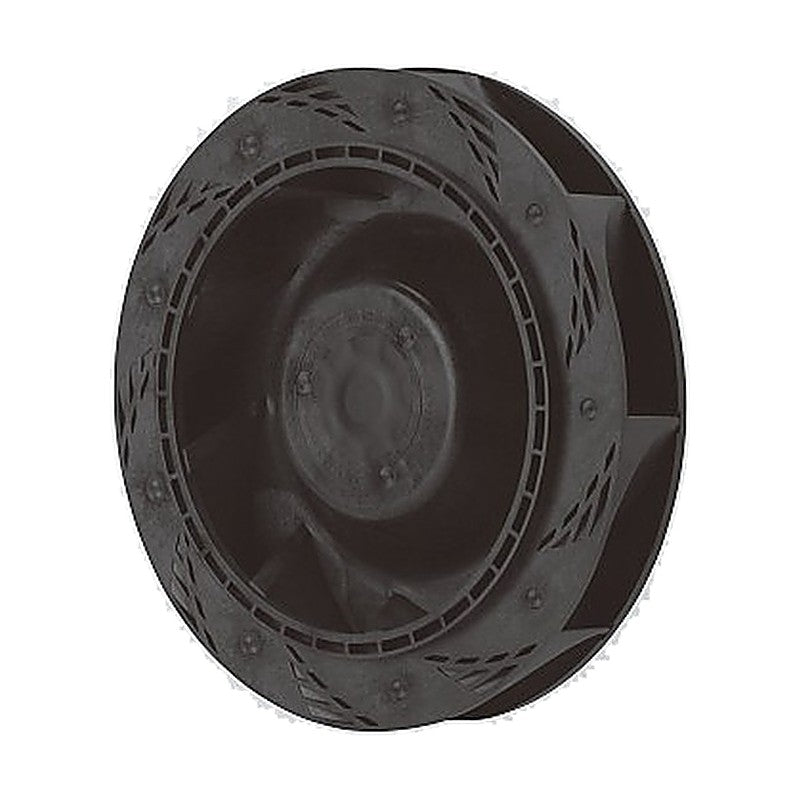

The San Ace 150W is a splash proof DC centrifugal fan in a dia. 150x35 mm frame.

Key features

  • Models are offered for 48 V DC rated voltage
  • Rated speeds range from 3,800 to 3,800 min-1 with maximum air flow up to 3.83 m3/min and maximum static pressure up to 390 Pa
  • Rated IP54: dust resistant device with protection against water spray
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Catalog performance values apply with the optional inlet nozzle (model 109-1081) mounted
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 48 V
Operating voltage range 36.0 to 55.2 V
PWM duty cycle 100 %
Rated current 0.32 A
Rated input 15.4 W
Speed 3,800 min-1
Max air flow 3.83 m3/min (135 CFM)
Max static pressure 390 Pa (1.57 inchH2O)
Noise 59 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h at 60°C (70,000 h at 40°C)
Mass 330 g
9W1TN48P1H01 Rated voltage: 48 V | Operating voltage range: 36.0 to 55.2 V | PWM duty cycle: 100 % | Rated current: 0.32 A | Rated input: 15.4 W | Speed: 3,800 min-1 | Max air flow: 3.83 m3/min (135 CFM) | Max static pressure: 390 Pa (1.57 inchH2O) | Noise: 59 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 330 g
DC Centrifugal FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 150W Splash Proof DC Centrifugal Fan dia. 150x35 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9W1TN48P1H01

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9W1TN48P1H01Rated voltage: 48 V | Operating voltage range: 36.0 to 55.2 V | PWM duty cycle: 100 % | Rated current: 0.32 A | Rated input: 15.4 W | Speed: 3,800 min-1 | Max air flow: 3.83 m3/min (135 CFM) | Max static pressure: 390 Pa (1.57 inchH2O) | Noise: 59 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 330 g
