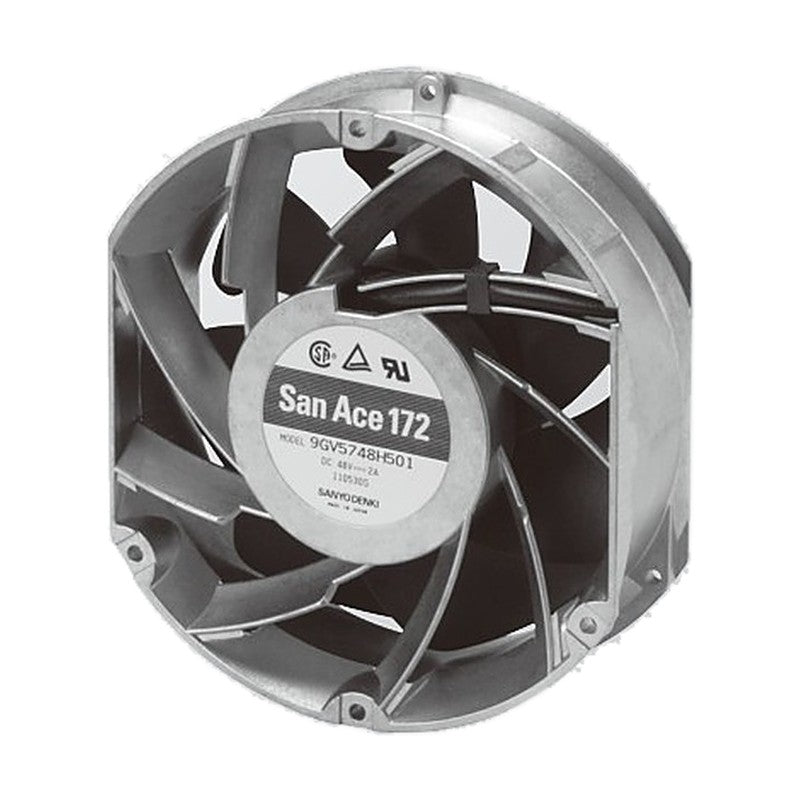

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut GV Type)

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut GV Type)

The San Ace 172 Side Cut GV Type is a DC axial cooling fan in a dia. 172x51 mm frame.

Key features

  • Models are offered for 24 and 48 V DC rated voltage
  • Rated speeds range from 6,300 to 6,300 min-1 with maximum air flow up to 11.32 m3/min and maximum static pressure up to 690 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size dia. 172x51 mm
Rated input 96 W
Speed 6,300 min-1
Max air flow 11.32 m3/min (400 CFM)
Max static pressure 690 Pa (2,77 inchH2O)
Noise 74 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 800 g
9GV5724H501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 4.0 A | Rated input: 96 W | Speed: 6,300 min-1 | Max air flow: 11.32 m3/min (400 CFM) | Max static pressure: 690 Pa (2,77 inchH2O) | Noise: 74 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 800 g
9GV5748H501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 2.0 A | Rated input: 96 W | Speed: 6,300 min-1 | Max air flow: 11.32 m3/min (400 CFM) | Max static pressure: 690 Pa (2,77 inchH2O) | Noise: 74 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 800 g
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut GV Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GV5724H501, 9GV5748H501

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GV5724H501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 4.0 A | Rated input: 96 W | Speed: 6,300 min-1 | Max air flow: 11.32 m3/min (400 CFM) | Max static pressure: 690 Pa (2,77 inchH2O) | Noise: 74 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 800 g
9GV5748H501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 2.0 A | Rated input: 96 W | Speed: 6,300 min-1 | Max air flow: 11.32 m3/min (400 CFM) | Max static pressure: 690 Pa (2,77 inchH2O) | Noise: 74 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 800 g
