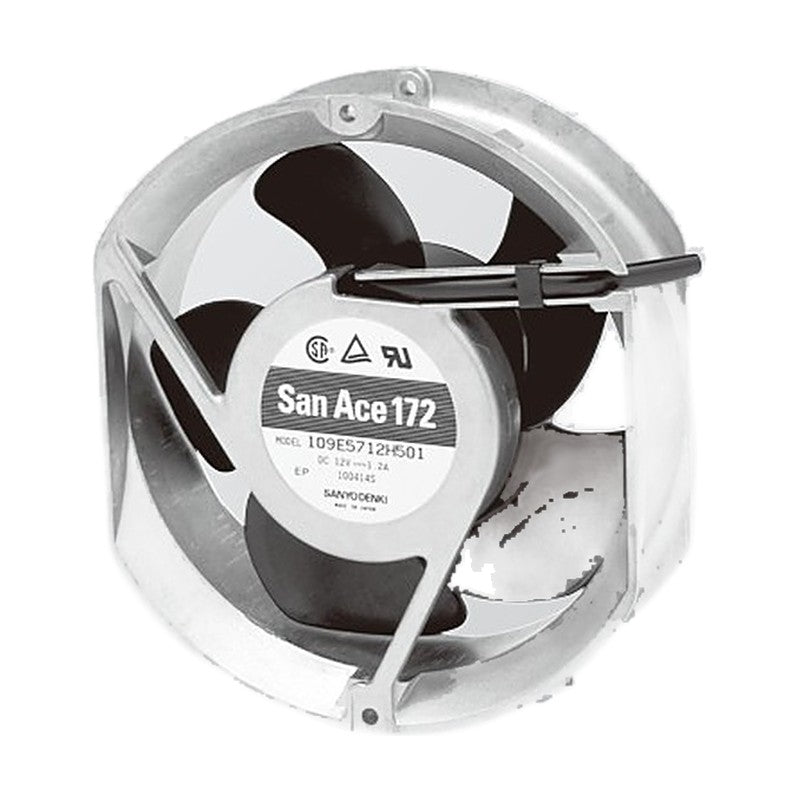

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut Type)

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut Type)

The San Ace 172 Side Cut Type is a DC axial cooling fan in a dia. 172x51 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,000 to 4,800 min-1 with maximum air flow up to 9.9 m3/min and maximum static pressure up to 308 Pa
  • The frame is made of aluminum
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size dia. 172x51 mm
Expected life 40,000 h
Mass 760 g
109E5712K501 Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.9 A | Rated input: 34.8 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5712Y501 Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.3 A | Rated input: 27.6 W | Speed: 3,800 min-1 | Max air flow: 8 m3/min (282 CFM) | Max static pressure: 210 Pa (0.84 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5712H501 Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5712F501 Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.68 A | Rated input: 8.16 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5712M501 Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.48 A | Rated input: 5.76 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724C501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 2.3 A | Rated input: 55.2 W | Speed: 4,800 min-1 | Max air flow: 9.9 m3/min (350 CFM) | Max static pressure: 308.0 Pa (1.237 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724K501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.3 A | Rated input: 31.2 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724H501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.58 A | Rated input: 13.92 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724F501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.35 A | Rated input: 8.4 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724M501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.2 A | Rated input: 4.8 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748C501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 1.2 A | Rated input: 57.6 W | Speed: 4,800 min-1 | Max air flow: 9.9 m3/min (350 CFM) | Max static pressure: 308.0 Pa (1.237 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748K501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.7 A | Rated input: 33.6 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5748H501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.28 A | Rated input: 13.44 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748F501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.19 A | Rated input: 9.12 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748M501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
DC Axial FansSanyo Denki
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172 DC Axial Fan dia. 172x51 mm (Side Cut Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (15)

109E5712K501, 109E5712Y501, 109E5712H501, 109E5712F501, 109E5712M501, 109E5724C501, 109E5724K501, 109E5724H501, 109E5724F501, 109E5724M501 + 5 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109E5712K501Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.9 A | Rated input: 34.8 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5712Y501Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 2.3 A | Rated input: 27.6 W | Speed: 3,800 min-1 | Max air flow: 8 m3/min (282 CFM) | Max static pressure: 210 Pa (0.84 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5712H501Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 1.2 A | Rated input: 14.4 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5712F501Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.68 A | Rated input: 8.16 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5712M501Size: dia. 172x51 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.48 A | Rated input: 5.76 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724C501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 2.3 A | Rated input: 55.2 W | Speed: 4,800 min-1 | Max air flow: 9.9 m3/min (350 CFM) | Max static pressure: 308.0 Pa (1.237 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724K501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.3 A | Rated input: 31.2 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724H501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.58 A | Rated input: 13.92 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724F501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.35 A | Rated input: 8.4 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5724M501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.2 A | Rated input: 4.8 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748C501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 1.2 A | Rated input: 57.6 W | Speed: 4,800 min-1 | Max air flow: 9.9 m3/min (350 CFM) | Max static pressure: 308.0 Pa (1.237 inchH2O) | Noise: 66 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748K501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.7 A | Rated input: 33.6 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243.0 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 760 g
109E5748H501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.28 A | Rated input: 13.44 W | Speed: 3,050 min-1 | Max air flow: 6.4 m3/min (226 CFM) | Max static pressure: 137.2 Pa (0.551 inchH2O) | Noise: 52 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748F501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.19 A | Rated input: 9.12 W | Speed: 2,500 min-1 | Max air flow: 5.1 m3/min (180 CFM) | Max static pressure: 95 Pa (0.38 inchH2O) | Noise: 47 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
109E5748M501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.11 A | Rated input: 5.28 W | Speed: 2,000 min-1 | Max air flow: 4.2 m3/min (148 CFM) | Max static pressure: 67.6 Pa (0.271 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 760 g
