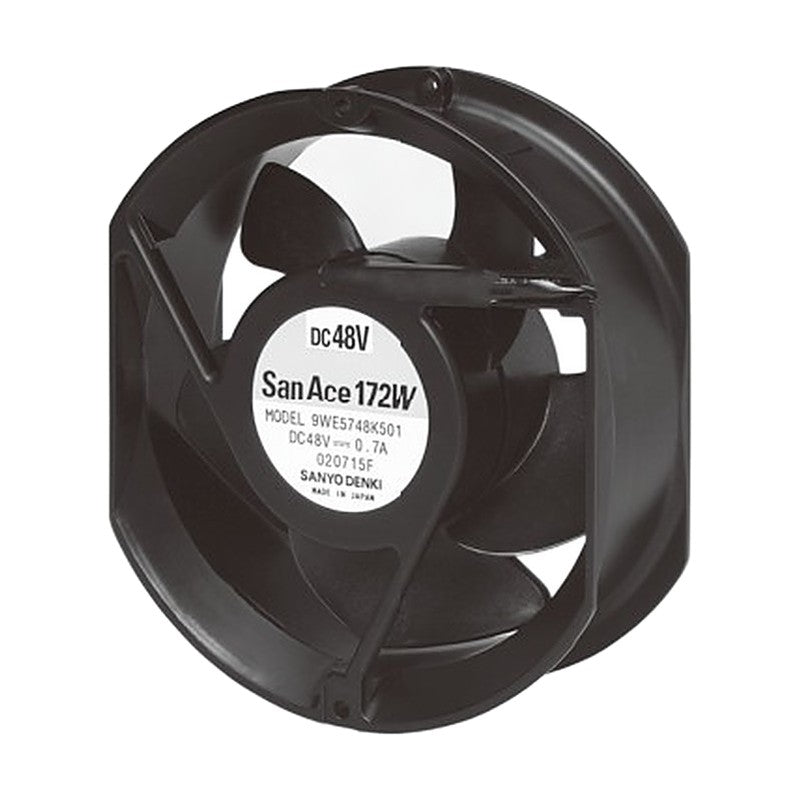

• Sanyo Denki San Ace 172W Splash Proof DC Fan dia. 172x51 mm (Side Cut WE Type)
1 1

Sanyo Denki San Ace 172W Splash Proof DC Fan dia. 172x51 mm (Side Cut WE Type)

Sanyo Denki San Ace 172W Splash Proof DC Fan dia. 172x51 mm (Side Cut WE Type)

The San Ace 172W Side Cut WE Type is a splash proof DC axial cooling fan in a dia. 172x51 mm frame.

Key features

  • Models are offered for 24 and 48 V DC rated voltage
  • Rated speeds range from 4,100 to 4,100 min-1 with maximum air flow up to 8.5 m3/min and maximum static pressure up to 243 Pa
  • The frame is made of aluminum
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size dia. 172x51 mm
Speed 4,100 min-1
Max air flow 8.5 m3/min (300 CFM)
Max static pressure 243 Pa (0.976 inchH2O)
Noise 60 dB(A)
Operating temperature -10 to +60 °C
Expected life 40,000 h
Mass 860 g
9WE5724K501 Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.3 A | Rated input: 31.2 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 860 g
9WE5748K501 Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.7 A | Rated input: 33.6 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 860 g
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 172W Splash Proof DC Fan dia. 172x51 mm (Side Cut WE Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9WE5724K501, 9WE5748K501

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WE5724K501Size: dia. 172x51 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.3 A | Rated input: 31.2 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 860 g
9WE5748K501Size: dia. 172x51 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.7 A | Rated input: 33.6 W | Speed: 4,100 min-1 | Max air flow: 8.5 m3/min (300 CFM) | Max static pressure: 243 Pa (0.976 inchH2O) | Noise: 60 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 860 g
