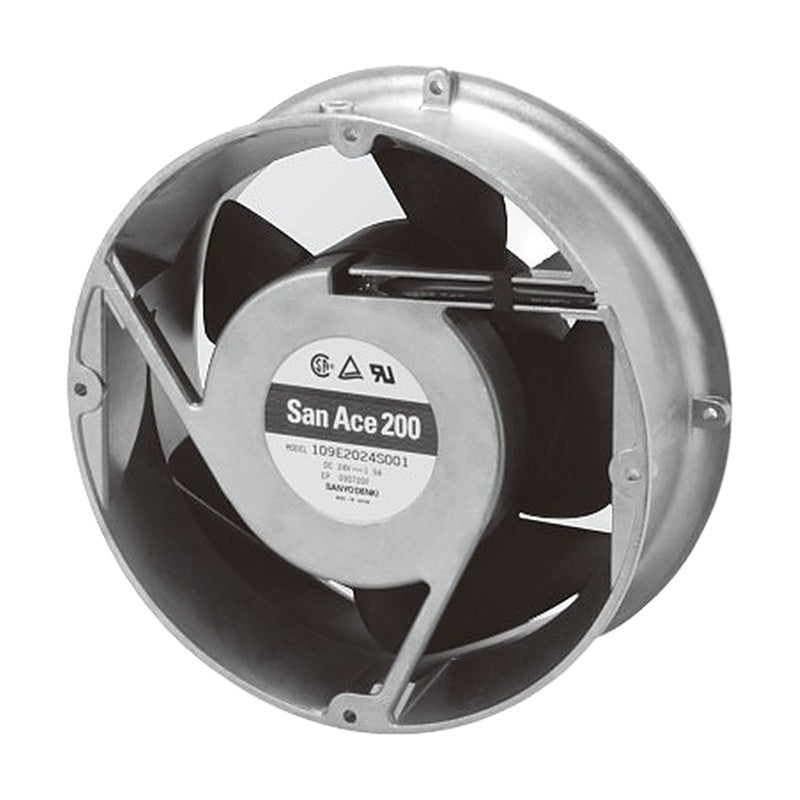

Sanyo Denki San Ace 200 DC Axial Fan dia. 200x70 mm (Round Type)

Sanyo Denki San Ace 200 DC Axial Fan dia. 200x70 mm (Round Type)

The San Ace 200 Round Type is a DC axial cooling fan in a dia. 200x70 mm frame.

Key features

  • Models are offered for 24 V DC rated voltage
  • Rated speeds range from 2,100 to 3,200 min-1 with maximum air flow up to 10.45 m3/min and maximum static pressure up to 287.1 Pa
  • The frame is made of aluminum
  • MH and AS speed models are two-speed fans
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size dia. 200x70 mm
Rated voltage 24 V
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 1800 g
109E2024H001 Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.0 A | Rated input: 24 W | Speed: 2,600 min-1 | Max air flow: 8.2 m3/min (289.5 CFM) | Max static pressure: 192 Pa (0.771 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024S001 Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 1.9 A | Rated input: 45.6 W | Speed: 3,200 min-1 | Max air flow: 10.45 m3/min (369 CFM) | Max static pressure: 287.1 Pa (1.153 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024MH001 Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.0 / 0.63 A | Rated input: 24 / 15.12 W | Speed: 2,600 / 2,100 min-1 | Max air flow: 8.2 / 6.7 m3/min (289.5 / 236.6 CFM) | Max static pressure: 192 / 115.4 Pa (0.771 / 0.463 inchH2O) | Noise: 51 / 45 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024AS001 Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 1.9 / 1.4 A | Rated input: 45.6 / 33.6 W | Speed: 3,200 / 2,800 min-1 | Max air flow: 10.45 / 9 m3/min (369 / 317.8 CFM) | Max static pressure: 287.1 / 217.5 Pa (1.153 / 0.873 inchH2O) | Noise: 57 / 54 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 200 DC Axial Fan dia. 200x70 mm (Round Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

109E2024H001, 109E2024S001, 109E2024MH001, 109E2024AS001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109E2024H001Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.0 A | Rated input: 24 W | Speed: 2,600 min-1 | Max air flow: 8.2 m3/min (289.5 CFM) | Max static pressure: 192 Pa (0.771 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024S001Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 1.9 A | Rated input: 45.6 W | Speed: 3,200 min-1 | Max air flow: 10.45 m3/min (369 CFM) | Max static pressure: 287.1 Pa (1.153 inchH2O) | Noise: 57 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024MH001Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 1.0 / 0.63 A | Rated input: 24 / 15.12 W | Speed: 2,600 / 2,100 min-1 | Max air flow: 8.2 / 6.7 m3/min (289.5 / 236.6 CFM) | Max static pressure: 192 / 115.4 Pa (0.771 / 0.463 inchH2O) | Noise: 51 / 45 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
109E2024AS001Size: dia. 200x70 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 1.9 / 1.4 A | Rated input: 45.6 / 33.6 W | Speed: 3,200 / 2,800 min-1 | Max air flow: 10.45 / 9 m3/min (369 / 317.8 CFM) | Max static pressure: 287.1 / 217.5 Pa (1.153 / 0.873 inchH2O) | Noise: 57 / 54 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 1800 g
