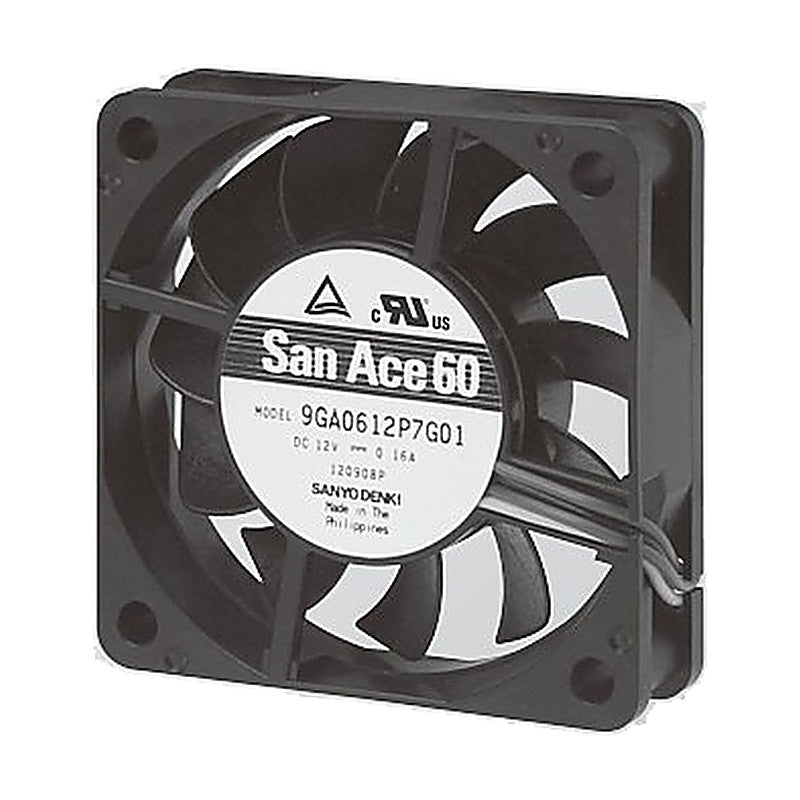

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x15 mm (GA Type)

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x15 mm (GA Type)

The San Ace 60 GA Type is a low power consumption DC axial cooling fan in a 60x60x15 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 1,300 to 5,900 min-1 with maximum air flow up to 0.68 m3/min and maximum static pressure up to 80 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Operating voltage range 10.2 to 13.8 V
PWM duty cycle 100 / 0 %
Operating temperature -10 to +70 °C
Expected life 40,000 h at 60°C (70,000 h at 40°C)
Mass 50 g
9GA0612P7G01 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.16 / 0.05 A | Rated input: 1.92 / 0.60 W | Speed: 5,900 / 1,500 min-1 | Max air flow: 0.68 / 0.17 m3/min (24 / 6.0 CFM) | Max static pressure: 80 / 5.2 Pa (0.320 / 0.020 inchH2O) | Noise: 38 / 10 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 50 g
9GA0612P7H01 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.10 / 0.03 A | Rated input: 1.2 / 0.36 W | Speed: 4,900 / 1,300 min-1 | Max air flow: 0.56 / 0.15 m3/min (19.7 / 5.3 CFM) | Max static pressure: 55.6 / 3.9 Pa (0.223 / 0.015 inchH2O) | Noise: 34 / 8 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 50 g
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x15 mm (GA Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9GA0612P7G01, 9GA0612P7H01

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0612P7G01Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.16 / 0.05 A | Rated input: 1.92 / 0.60 W | Speed: 5,900 / 1,500 min-1 | Max air flow: 0.68 / 0.17 m3/min (24 / 6.0 CFM) | Max static pressure: 80 / 5.2 Pa (0.320 / 0.020 inchH2O) | Noise: 38 / 10 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 50 g
9GA0612P7H01Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.10 / 0.03 A | Rated input: 1.2 / 0.36 W | Speed: 4,900 / 1,300 min-1 | Max air flow: 0.56 / 0.15 m3/min (19.7 / 5.3 CFM) | Max static pressure: 55.6 / 3.9 Pa (0.223 / 0.015 inchH2O) | Noise: 34 / 8 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 50 g
