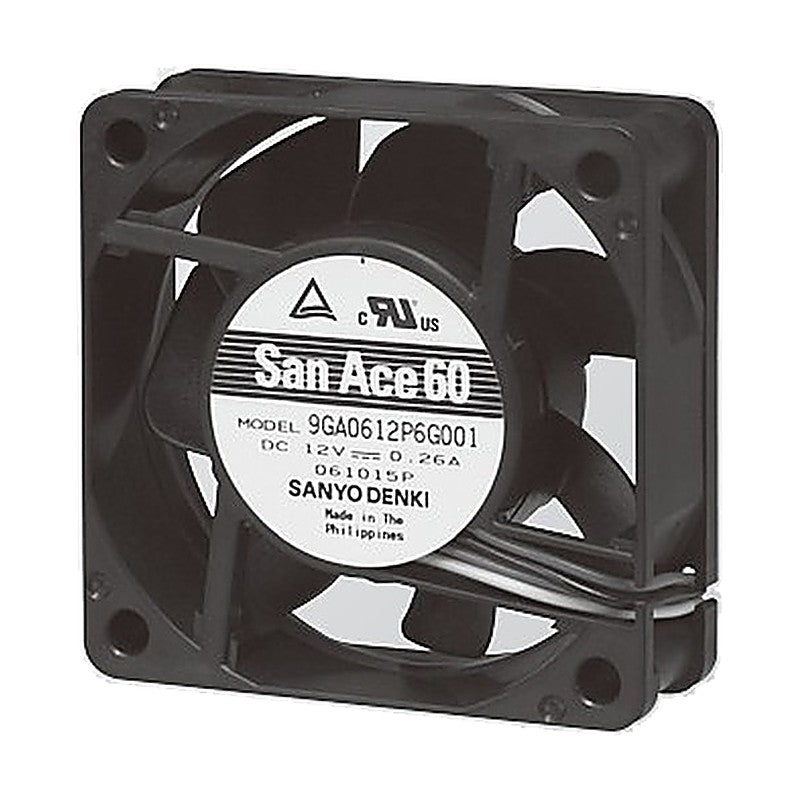

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x20 mm (GA Type)

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x20 mm (GA Type)

The San Ace 60 GA Type is a low power consumption DC axial cooling fan in a 60x60x20 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 2,700 to 6,850 min-1 with maximum air flow up to 0.88 m3/min and maximum static pressure up to 125 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Operating temperature -10 to +70 °C
Mass 70 g
9GA0612P6G001 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 0.26 A | Rated input: 3.12 W | Speed: 6,850 min-1 | Max air flow: 0.88 m3/min (31.1 CFM) | Max static pressure: 125 Pa (0.50 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0612P6S001 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 0.15 A | Rated input: 1.80 W | Speed: 5,500 min-1 | Max air flow: 0.70 m3/min (24.7 CFM) | Max static pressure: 81 Pa (0.33 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0624P6G001 Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 6,850 min-1 | Max air flow: 0.88 m3/min (31.1 CFM) | Max static pressure: 125 Pa (0.50 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0624P6S001 Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 5,500 min-1 | Max air flow: 0.70 m3/min (24.7 CFM) | Max static pressure: 81 Pa (0.33 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0612H6001 Size: 60x60x20 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 4,100 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 45 Pa (0.18 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0612M6001 Size: 60x60x20 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.05 A | Rated input: 0.60 W | Speed: 2,700 min-1 | Max air flow: 0.34 m3/min (12.0 CFM) | Max static pressure: 20 Pa (0.08 inchH2O) | Noise: 18 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0624H6001 Size: 60x60x20 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 4,100 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 45 Pa (0.18 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0624M6001 Size: 60x60x20 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 0.03 A | Rated input: 0.72 W | Speed: 2,700 min-1 | Max air flow: 0.34 m3/min (12.0 CFM) | Max static pressure: 20 Pa (0.08 inchH2O) | Noise: 18 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
DC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x20 mm (GA Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (8)

9GA0612P6G001, 9GA0612P6S001, 9GA0624P6G001, 9GA0624P6S001, 9GA0612H6001, 9GA0612M6001, 9GA0624H6001, 9GA0624M6001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0612P6G001Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 0.26 A | Rated input: 3.12 W | Speed: 6,850 min-1 | Max air flow: 0.88 m3/min (31.1 CFM) | Max static pressure: 125 Pa (0.50 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0612P6S001Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 % | Rated current: 0.15 A | Rated input: 1.80 W | Speed: 5,500 min-1 | Max air flow: 0.70 m3/min (24.7 CFM) | Max static pressure: 81 Pa (0.33 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0624P6G001Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 6,850 min-1 | Max air flow: 0.88 m3/min (31.1 CFM) | Max static pressure: 125 Pa (0.50 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0624P6S001Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | PWM duty cycle: 100 % | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 5,500 min-1 | Max air flow: 0.70 m3/min (24.7 CFM) | Max static pressure: 81 Pa (0.33 inchH2O) | Noise: 36 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 70 g
9GA0612H6001Size: 60x60x20 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 4,100 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 45 Pa (0.18 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0612M6001Size: 60x60x20 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.05 A | Rated input: 0.60 W | Speed: 2,700 min-1 | Max air flow: 0.34 m3/min (12.0 CFM) | Max static pressure: 20 Pa (0.08 inchH2O) | Noise: 18 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0624H6001Size: 60x60x20 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 4,100 min-1 | Max air flow: 0.52 m3/min (18.4 CFM) | Max static pressure: 45 Pa (0.18 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
9GA0624M6001Size: 60x60x20 mm | Rated voltage: 24 V | Operating voltage range: 21.6 to 26.4 V | Rated current: 0.03 A | Rated input: 0.72 W | Speed: 2,700 min-1 | Max air flow: 0.34 m3/min (12.0 CFM) | Max static pressure: 20 Pa (0.08 inchH2O) | Noise: 18 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 70 g
