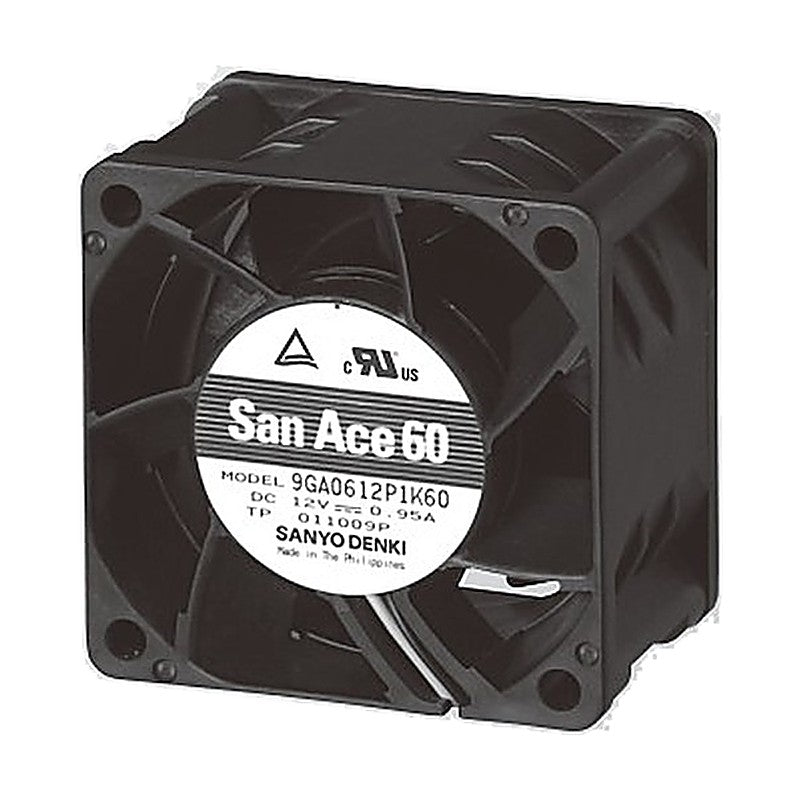

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x38 mm (GA Type)

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x38 mm (GA Type)

The San Ace 60 GA Type is a low power consumption DC axial cooling fan in a 60x60x38 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 1,480 to 17,500 min-1 with maximum air flow up to 1.75 m3/min and maximum static pressure up to 820 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Mass 130 g
9GA0612P1J03 Rated voltage: 12 V | Operating voltage range: 10.8 to 12.6 V | PWM duty cycle: 100 / 20 % | Rated current: 1.50 / 0.10 A | Rated input: 18.00 / 1.20 W | Speed: 17,500 / 4,000 min-1 | Max air flow: 1.75 / 0.40 m3/min (62 / 14 CFM) | Max static pressure: 820 / 43 Pa (3.3 / 0.17 inchH2O) | Noise: 63 / 24 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 130 g
9GA0612P1K03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 20 % | Rated current: 0.95 / 0.10 A | Rated input: 11.40 / 1.20 W | Speed: 14,800 / 4,000 min-1 | Max air flow: 1.50 / 0.40 m3/min (53 / 14 CFM) | Max static pressure: 600 / 43 Pa (2.4 / 0.17 inchH2O) | Noise: 59 / 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
9GA0612P1H03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 20 % | Rated current: 0.55 / 0.06 A | Rated input: 6.60 / 0.72 W | Speed: 11,500 / 2,600 min-1 | Max air flow: 1.15 / 0.27 m3/min (40 / 9.5 CFM) | Max static pressure: 375 / 20 Pa (1.5 / 0.08 inchH2O) | Noise: 52 / 19 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
9GA0612P1K60 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.95 / 0.05 A | Rated input: 11.40 / 0.60 W | Speed: 14,800 / 1,480 min-1 | Max air flow: 1.50 / 0.134 m3/min (53 / 4.7 CFM) | Max static pressure: 675 / 8.3 Pa (2.7 / 0.03 inchH2O) | Noise: 59 / 16 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 Low Power Consumption DC Fan 60x60x38 mm (GA Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9GA0612P1J03, 9GA0612P1K03, 9GA0612P1H03, 9GA0612P1K60

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0612P1J03Rated voltage: 12 V | Operating voltage range: 10.8 to 12.6 V | PWM duty cycle: 100 / 20 % | Rated current: 1.50 / 0.10 A | Rated input: 18.00 / 1.20 W | Speed: 17,500 / 4,000 min-1 | Max air flow: 1.75 / 0.40 m3/min (62 / 14 CFM) | Max static pressure: 820 / 43 Pa (3.3 / 0.17 inchH2O) | Noise: 63 / 24 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 130 g
9GA0612P1K03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 20 % | Rated current: 0.95 / 0.10 A | Rated input: 11.40 / 1.20 W | Speed: 14,800 / 4,000 min-1 | Max air flow: 1.50 / 0.40 m3/min (53 / 14 CFM) | Max static pressure: 600 / 43 Pa (2.4 / 0.17 inchH2O) | Noise: 59 / 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
9GA0612P1H03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 20 % | Rated current: 0.55 / 0.06 A | Rated input: 6.60 / 0.72 W | Speed: 11,500 / 2,600 min-1 | Max air flow: 1.15 / 0.27 m3/min (40 / 9.5 CFM) | Max static pressure: 375 / 20 Pa (1.5 / 0.08 inchH2O) | Noise: 52 / 19 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
9GA0612P1K60Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.95 / 0.05 A | Rated input: 11.40 / 0.60 W | Speed: 14,800 / 1,480 min-1 | Max air flow: 1.50 / 0.134 m3/min (53 / 4.7 CFM) | Max static pressure: 675 / 8.3 Pa (2.7 / 0.03 inchH2O) | Noise: 59 / 16 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 130 g
