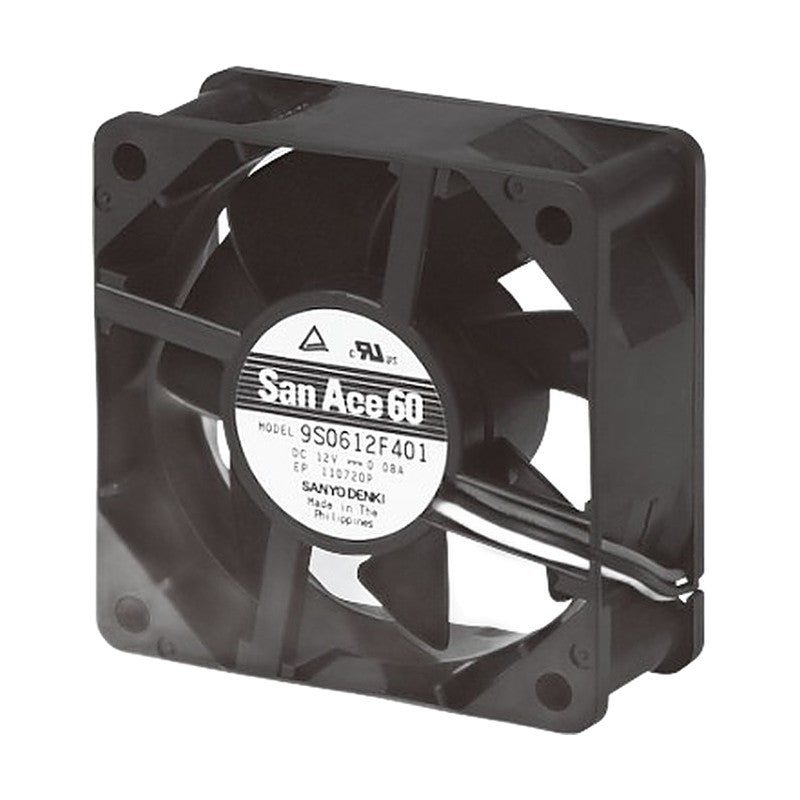

• Sanyo Denki San Ace 60 Silent DC Fan 60x60x25 mm (S Type)
1 1

Sanyo Denki San Ace 60 Silent DC Fan 60x60x25 mm (S Type)

Sanyo Denki San Ace 60 Silent DC Fan 60x60x25 mm (S Type)

The San Ace 60 S Type is a low-noise (silent) DC axial cooling fan in a 60x60x25 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 2,700 to 3,900 min-1 with maximum air flow up to 0.58 m3/min and maximum static pressure up to 40 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 60x60x25 mm
Rated voltage 12 V
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 55 g
9S0612H401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 3,900 min-1 | Max air flow: 0.58 m3/min (20.5 CFM) | Max static pressure: 40.0 Pa (0.16 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
9S0612F401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 3,300 min-1 | Max air flow: 0.49 m3/min (17.3 CFM) | Max static pressure: 29.3 Pa (0.12 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
9S0612M401 Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 2,700 min-1 | Max air flow: 0.40 m3/min (14.1 CFM) | Max static pressure: 19.7 Pa (0.08 inchH2O) | Noise: 16 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 60 Silent DC Fan 60x60x25 mm (S Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9S0612H401, 9S0612F401, 9S0612M401

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9S0612H401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 5.0 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 3,900 min-1 | Max air flow: 0.58 m3/min (20.5 CFM) | Max static pressure: 40.0 Pa (0.16 inchH2O) | Noise: 24 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
9S0612F401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 3,300 min-1 | Max air flow: 0.49 m3/min (17.3 CFM) | Max static pressure: 29.3 Pa (0.12 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
9S0612M401Size: 60x60x25 mm | Rated voltage: 12 V | Operating voltage range: 6.0 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 2,700 min-1 | Max air flow: 0.40 m3/min (14.1 CFM) | Max static pressure: 19.7 Pa (0.08 inchH2O) | Noise: 16 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 55 g
