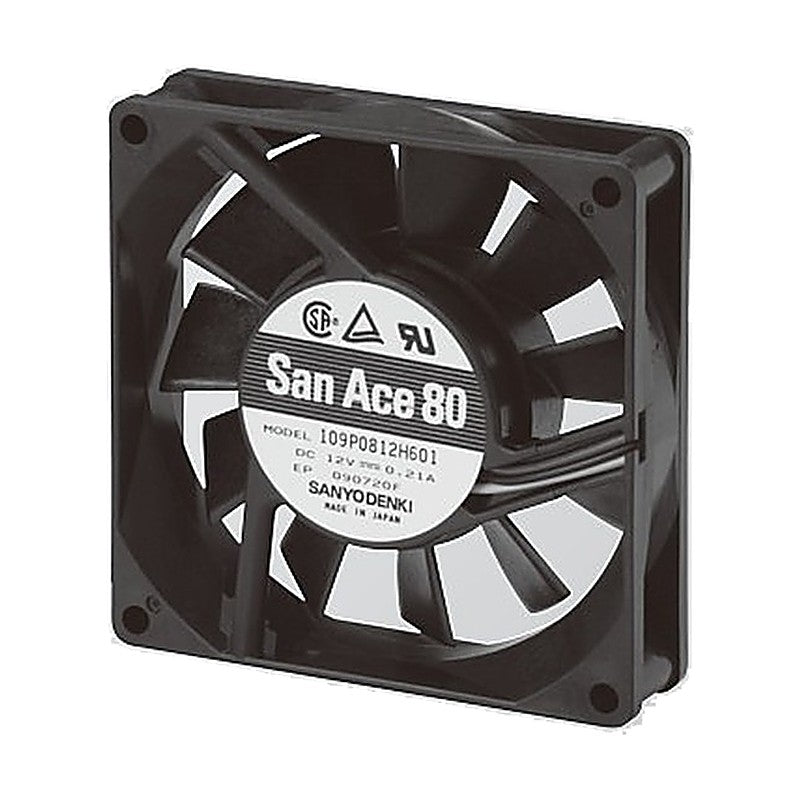

Sanyo Denki San Ace 80 DC Axial Fan 80x80x20 mm

Sanyo Denki San Ace 80 DC Axial Fan 80x80x20 mm

The San Ace 80 is a DC axial cooling fan in a 80x80x20 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,300 to 3,700 min-1 with maximum air flow up to 1.07 m3/min and maximum static pressure up to 46 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x20 mm
Mass 100 g
109P0812C601 Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.29 A | Rated input: 3.48 W | Speed: 3,700 min-1 | Max air flow: 1.07 m3/min (37.8 CFM) | Max static pressure: 46 Pa (0.185 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 60,000 h | Mass: 100 g
109P0812H601 Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0812M601 Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,300 min-1 | Max air flow: 0.67 m3/min (23.7 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 25 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0824H601 Size: 80x80x20 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0824M601 Size: 80x80x20 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,300 min-1 | Max air flow: 0.67 m3/min (23.7 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 25 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0848C601 Size: 80x80x20 mm | Rated voltage: 48 V | Operating voltage range: 38 to 57.6 V | Rated current: 0.08 A | Rated input: 3.84 W | Speed: 3,700 min-1 | Max air flow: 1.07 m3/min (37.8 CFM) | Max static pressure: 46 Pa (0.185 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
109P0848H601 Size: 80x80x20 mm | Rated voltage: 48 V | Operating voltage range: 38 to 57.6 V | Rated current: 0.05 A | Rated input: 2.4 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 100 g
DC Axial FansSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 DC Axial Fan 80x80x20 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (7)

109P0812C601, 109P0812H601, 109P0812M601, 109P0824H601, 109P0824M601, 109P0848C601, 109P0848H601

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109P0812C601Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.29 A | Rated input: 3.48 W | Speed: 3,700 min-1 | Max air flow: 1.07 m3/min (37.8 CFM) | Max static pressure: 46 Pa (0.185 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 60,000 h | Mass: 100 g
109P0812H601Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0812M601Size: 80x80x20 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,300 min-1 | Max air flow: 0.67 m3/min (23.7 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 25 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0824H601Size: 80x80x20 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.12 A | Rated input: 2.88 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0824M601Size: 80x80x20 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,300 min-1 | Max air flow: 0.67 m3/min (23.7 CFM) | Max static pressure: 18.6 Pa (0.075 inchH2O) | Noise: 25 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 100 g
109P0848C601Size: 80x80x20 mm | Rated voltage: 48 V | Operating voltage range: 38 to 57.6 V | Rated current: 0.08 A | Rated input: 3.84 W | Speed: 3,700 min-1 | Max air flow: 1.07 m3/min (37.8 CFM) | Max static pressure: 46 Pa (0.185 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
109P0848H601Size: 80x80x20 mm | Rated voltage: 48 V | Operating voltage range: 38 to 57.6 V | Rated current: 0.05 A | Rated input: 2.4 W | Speed: 2,900 min-1 | Max air flow: 0.84 m3/min (29.7 CFM) | Max static pressure: 29.4 Pa (0.118 inchH2O) | Noise: 31 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 100 g
