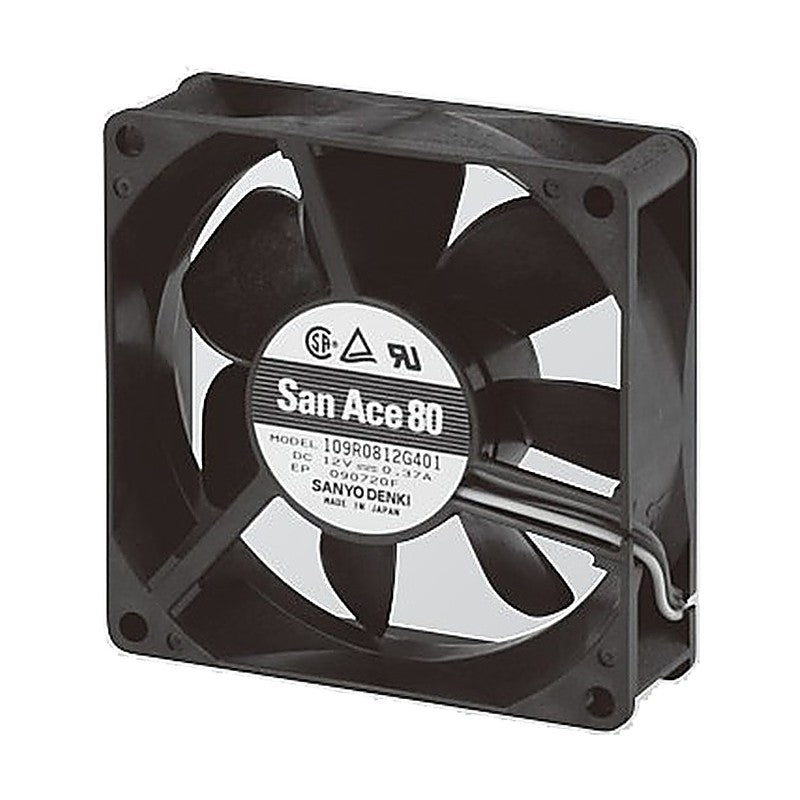

Sanyo Denki San Ace 80 DC Axial Fan 80x80x25 mm

Sanyo Denki San Ace 80 DC Axial Fan 80x80x25 mm

The San Ace 80 is a DC axial cooling fan in a 80x80x25 mm frame.

Key features

  • Models are offered for 5, 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,850 to 4,600 min-1 with maximum air flow up to 1.56 m3/min and maximum static pressure up to 88.4 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x25 mm
Mass 110 g
109R0805F401 Size: 80x80x25 mm | Rated voltage: 5 V | Operating voltage range: 4.5 to 5.5 V | Rated current: 0.25 A | Rated input: 1.25 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0805M401 Size: 80x80x25 mm | Rated voltage: 5 V | Operating voltage range: 4.5 to 5.5 V | Rated current: 0.17 A | Rated input: 0.85 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812G401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.37 A | Rated input: 4.44 W | Speed: 4,500 min-1 | Max air flow: 1.50 m3/min (53.0 CFM) | Max static pressure: 80.4 Pa (0.323 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0812S401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.18 A | Rated input: 2.16 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812H401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812F401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812M401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812L401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.06 A | Rated input: 0.72 W | Speed: 1,850 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 14.7 Pa (0.059 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824G401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 26.4 V | Rated current: 0.20 A | Rated input: 4.80 W | Speed: 4,500 min-1 | Max air flow: 1.50 m3/min (53.0 CFM) | Max static pressure: 80.4 Pa (0.323 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0824S401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.10 A | Rated input: 2.40 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824H401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824F401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824M401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824L401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 1,850 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 14.7 Pa (0.059 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0848K401 Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.10 A | Rated input: 4.80 W | Speed: 4,600 min-1 | Max air flow: 1.56 m3/min (55.1 CFM) | Max static pressure: 88.4 Pa (0.355 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0848S401 Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
DC Axial FansSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 DC Axial Fan 80x80x25 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (16)

109R0805F401, 109R0805M401, 109R0812G401, 109R0812S401, 109R0812H401, 109R0812F401, 109R0812M401, 109R0812L401, 109R0824G401, 109R0824S401 + 6 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109R0805F401Size: 80x80x25 mm | Rated voltage: 5 V | Operating voltage range: 4.5 to 5.5 V | Rated current: 0.25 A | Rated input: 1.25 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0805M401Size: 80x80x25 mm | Rated voltage: 5 V | Operating voltage range: 4.5 to 5.5 V | Rated current: 0.17 A | Rated input: 0.85 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812G401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 0.37 A | Rated input: 4.44 W | Speed: 4,500 min-1 | Max air flow: 1.50 m3/min (53.0 CFM) | Max static pressure: 80.4 Pa (0.323 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0812S401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.18 A | Rated input: 2.16 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812H401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812F401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.11 A | Rated input: 1.32 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812M401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.09 A | Rated input: 1.08 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0812L401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.06 A | Rated input: 0.72 W | Speed: 1,850 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 14.7 Pa (0.059 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824G401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 26.4 V | Rated current: 0.20 A | Rated input: 4.80 W | Speed: 4,500 min-1 | Max air flow: 1.50 m3/min (53.0 CFM) | Max static pressure: 80.4 Pa (0.323 inchH2O) | Noise: 40 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0824S401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.10 A | Rated input: 2.40 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824H401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824F401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.06 A | Rated input: 1.44 W | Speed: 2,600 min-1 | Max air flow: 0.92 m3/min (32.5 CFM) | Max static pressure: 28.4 Pa (0.114 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824M401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 2,350 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 22.5 Pa (0.090 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0824L401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 1,850 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 14.7 Pa (0.059 inchH2O) | Noise: 20 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 110 g
109R0848K401Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.10 A | Rated input: 4.80 W | Speed: 4,600 min-1 | Max air flow: 1.56 m3/min (55.1 CFM) | Max static pressure: 88.4 Pa (0.355 inchH2O) | Noise: 41 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
109R0848S401Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 110 g
