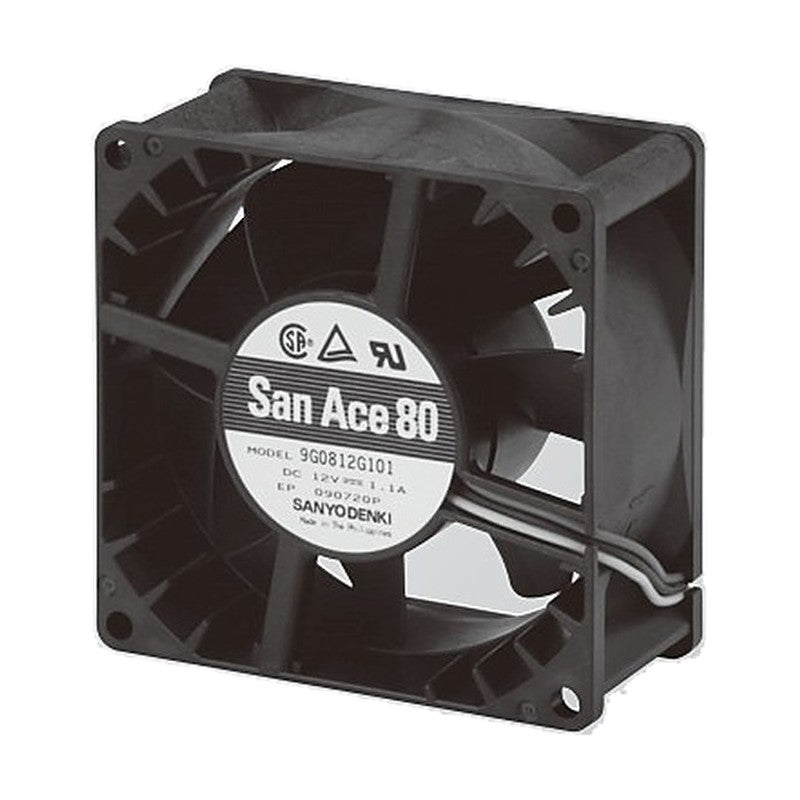

Sanyo Denki San Ace 80 DC Axial Fan 80x80x38 mm (G Type)

Sanyo Denki San Ace 80 DC Axial Fan 80x80x38 mm (G Type)

The San Ace 80 G Type is a DC axial cooling fan in a 80x80x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 5,700 to 7,800 min-1 with maximum air flow up to 3.04 m3/min and maximum static pressure up to 320 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x38 mm
Expected life 40,000 h
Mass 170 g
9G0812K101 Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 1.8 A | Rated input: 21.6 W | Speed: 7,800 min-1 | Max air flow: 3.04 m3/min (107.3 CFM) | Max static pressure: 320 Pa (1.285 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9G0812G101 Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 1.1 A | Rated input: 13.2 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0812H101 Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.9 A | Rated input: 10.8 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0824G101 Size: 80x80x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.56 A | Rated input: 13.4 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0824H101 Size: 80x80x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.42 A | Rated input: 10.1 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0848G101 Size: 80x80x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 13.0 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0848H101 Size: 80x80x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.20 A | Rated input: 9.6 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
DC Axial FansSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 DC Axial Fan 80x80x38 mm (G Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (7)

9G0812K101, 9G0812G101, 9G0812H101, 9G0824G101, 9G0824H101, 9G0848G101, 9G0848H101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9G0812K101Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | Rated current: 1.8 A | Rated input: 21.6 W | Speed: 7,800 min-1 | Max air flow: 3.04 m3/min (107.3 CFM) | Max static pressure: 320 Pa (1.285 inchH2O) | Noise: 58 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 170 g
9G0812G101Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 1.1 A | Rated input: 13.2 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0812H101Size: 80x80x38 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.9 A | Rated input: 10.8 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0824G101Size: 80x80x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.56 A | Rated input: 13.4 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0824H101Size: 80x80x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.42 A | Rated input: 10.1 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0848G101Size: 80x80x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 13.0 W | Speed: 6,300 min-1 | Max air flow: 2.55 m3/min (90 CFM) | Max static pressure: 211 Pa (0.847 inchH2O) | Noise: 51 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
9G0848H101Size: 80x80x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.20 A | Rated input: 9.6 W | Speed: 5,700 min-1 | Max air flow: 2.28 m3/min (80 CFM) | Max static pressure: 171 Pa (0.687 inchH2O) | Noise: 49 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 170 g
