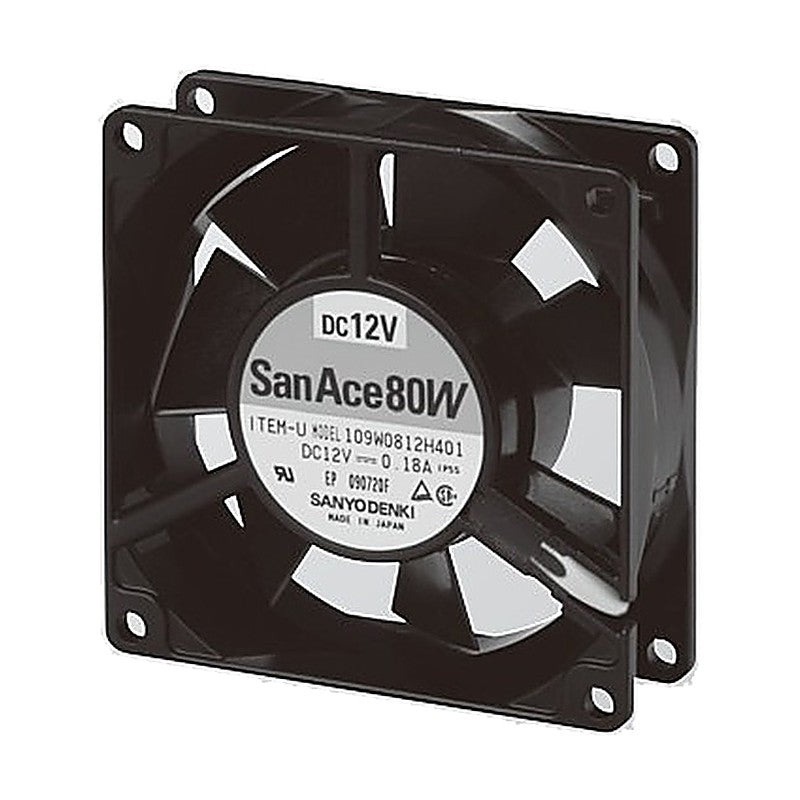

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm

The San Ace 80W is a splash proof DC axial cooling fan in a 80x80x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 1,900 to 3,150 min-1 with maximum air flow up to 1.1 m3/min and maximum static pressure up to 43.1 Pa
  • The frame is made of aluminum
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x25 mm
Operating temperature -10 to +70 °C
Expected life 100,000 h
Mass 170 g
109W0812H401-U Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.18 A | Rated input: 2.16 W | Speed: 3,000 min-1 | Max air flow: 1.06 m3/min (37.4 CFM) | Max static pressure: 39.2 Pa (0.157 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812F401-U Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,700 min-1 | Max air flow: 0.93 m3/min (32.8 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812M401-U Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.10 A | Rated input: 1.20 W | Speed: 2,400 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 26.5 Pa (0.106 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812L401-U Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,900 min-1 | Max air flow: 0.63 m3/min (22.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 22 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824H401-U Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,000 min-1 | Max air flow: 1.06 m3/min (37.4 CFM) | Max static pressure: 39.2 Pa (0.157 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824F401-U Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,700 min-1 | Max air flow: 0.93 m3/min (32.8 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824M401-U Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,400 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 26.5 Pa (0.106 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824L401-U Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 1,900 min-1 | Max air flow: 0.63 m3/min (22.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 22 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0848H401-U Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,150 min-1 | Max air flow: 1.10 m3/min (38.8 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
DC Axial FansSanyo Denki
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (9)

109W0812H401-U, 109W0812F401-U, 109W0812M401-U, 109W0812L401-U, 109W0824H401-U, 109W0824F401-U, 109W0824M401-U, 109W0824L401-U, 109W0848H401-U

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109W0812H401-USize: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.18 A | Rated input: 2.16 W | Speed: 3,000 min-1 | Max air flow: 1.06 m3/min (37.4 CFM) | Max static pressure: 39.2 Pa (0.157 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812F401-USize: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,700 min-1 | Max air flow: 0.93 m3/min (32.8 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812M401-USize: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.10 A | Rated input: 1.20 W | Speed: 2,400 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 26.5 Pa (0.106 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0812L401-USize: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.08 A | Rated input: 0.96 W | Speed: 1,900 min-1 | Max air flow: 0.63 m3/min (22.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 22 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824H401-USize: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,000 min-1 | Max air flow: 1.06 m3/min (37.4 CFM) | Max static pressure: 39.2 Pa (0.157 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824F401-USize: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,700 min-1 | Max air flow: 0.93 m3/min (32.8 CFM) | Max static pressure: 32.3 Pa (0.130 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824M401-USize: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,400 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 26.5 Pa (0.106 inchH2O) | Noise: 26 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0824L401-USize: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 1,900 min-1 | Max air flow: 0.63 m3/min (22.2 CFM) | Max static pressure: 16.7 Pa (0.067 inchH2O) | Noise: 22 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
109W0848H401-USize: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,150 min-1 | Max air flow: 1.10 m3/min (38.8 CFM) | Max static pressure: 43.1 Pa (0.173 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 100,000 h | Mass: 170 g
