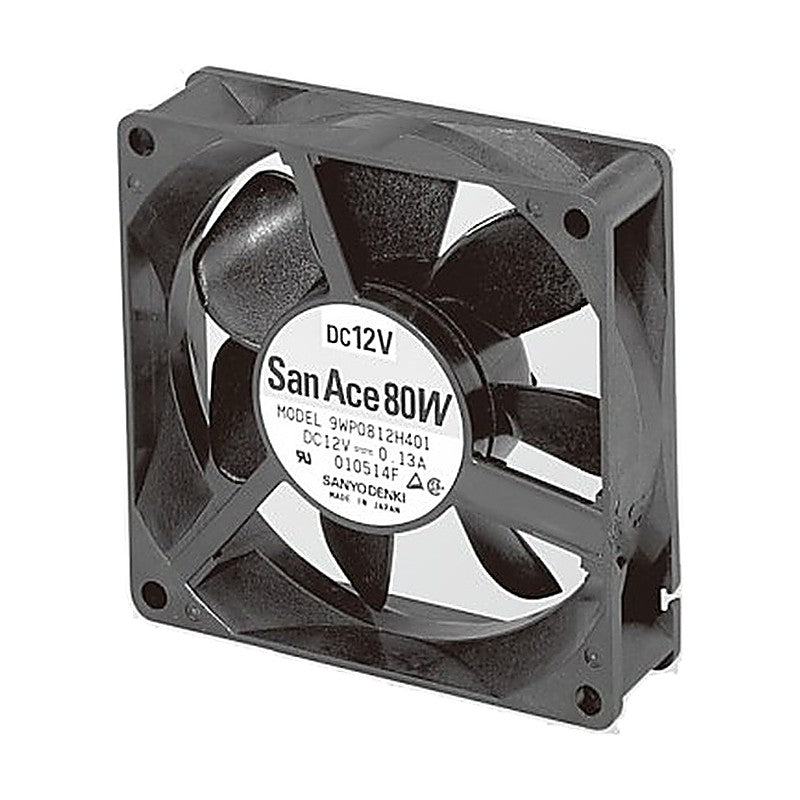

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WP Type)

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WP Type)

The San Ace 80W WP Type is a splash proof DC axial cooling fan in a 80x80x25 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 2,900 to 3,400 min-1 with maximum air flow up to 1.2 m3/min and maximum static pressure up to 48 Pa
  • The frame is made of plastic
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x25 mm
Operating temperature -10 to +70 °C
Mass 130 g
9WP0812H401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 130 g
9WP0824H401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 130 g
9WP0848S401 Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 130 g
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WP Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9WP0812H401, 9WP0824H401, 9WP0848S401

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WP0812H401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 130 g
9WP0824H401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,900 min-1 | Max air flow: 1.03 m3/min (36.4 CFM) | Max static pressure: 35.3 Pa (0.142 inchH2O) | Noise: 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 130 g
9WP0848S401Size: 80x80x25 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.06 A | Rated input: 2.88 W | Speed: 3,400 min-1 | Max air flow: 1.20 m3/min (42.4 CFM) | Max static pressure: 48.0 Pa (0.193 inchH2O) | Noise: 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 130 g
