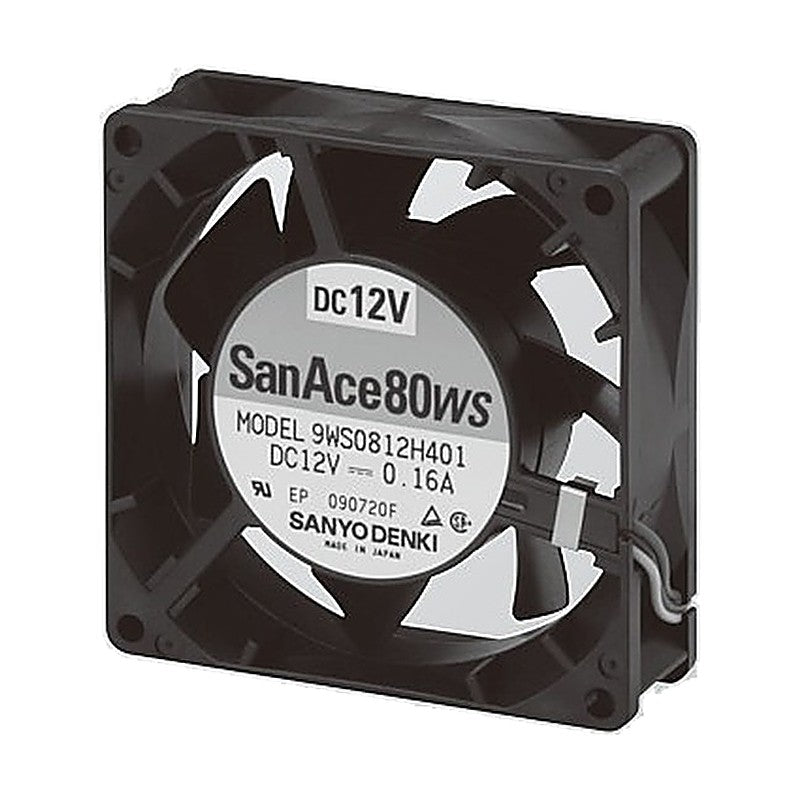

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WS Type)

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WS Type)

The San Ace 80W WS Type is a splash proof DC axial cooling fan in a 80x80x25 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 2,200 to 3,100 min-1 with maximum air flow up to 0.94 m3/min and maximum static pressure up to 45.1 Pa
  • The frame is made of plastic
  • Rated IP54: dust resistant device with protection against water spray
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 80x80x25 mm
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 120 g
9WS0812H401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.16 A | Rated input: 1.92 W | Speed: 3,100 min-1 | Max air flow: 0.94 m3/min (33.2 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0812F401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,700 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 34.3 Pa (0.138 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0812M401 Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.1 A | Rated input: 1.2 W | Speed: 2,200 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824H401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,100 min-1 | Max air flow: 0.94 m3/min (33.2 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824F401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,700 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 34.3 Pa (0.138 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824M401 Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 2,200 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80W Splash Proof DC Fan 80x80x25 mm (WS Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9WS0812H401, 9WS0812F401, 9WS0812M401, 9WS0824H401, 9WS0824F401, 9WS0824M401

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WS0812H401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.16 A | Rated input: 1.92 W | Speed: 3,100 min-1 | Max air flow: 0.94 m3/min (33.2 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0812F401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.13 A | Rated input: 1.56 W | Speed: 2,700 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 34.3 Pa (0.138 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0812M401Size: 80x80x25 mm | Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | Rated current: 0.1 A | Rated input: 1.2 W | Speed: 2,200 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824H401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.09 A | Rated input: 2.16 W | Speed: 3,100 min-1 | Max air flow: 0.94 m3/min (33.2 CFM) | Max static pressure: 45.1 Pa (0.181 inchH2O) | Noise: 32 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824F401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.07 A | Rated input: 1.68 W | Speed: 2,700 min-1 | Max air flow: 0.83 m3/min (29.3 CFM) | Max static pressure: 34.3 Pa (0.138 inchH2O) | Noise: 28 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WS0824M401Size: 80x80x25 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 2,200 min-1 | Max air flow: 0.65 m3/min (23.0 CFM) | Max static pressure: 23.5 Pa (0.094 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
