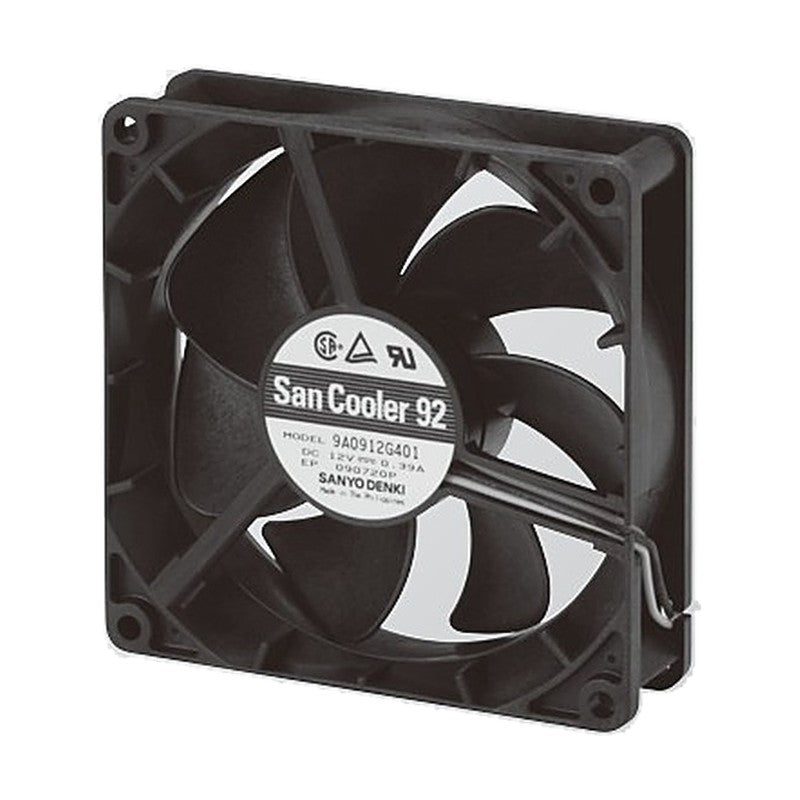

Sanyo Denki San Ace 92 DC Axial Fan 92x92x25 mm (San Cooler)

Sanyo Denki San Ace 92 DC Axial Fan 92x92x25 mm (San Cooler)

The San Ace 92 San Cooler is a DC axial cooling fan in a 92x92x25 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 1,750 to 3,900 min-1 with maximum air flow up to 1.76 m3/min and maximum static pressure up to 66.5 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 92x92x25 mm
Mass 100 g
9A0912G401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 3,900 min-1 | Max air flow: 1.76 m3/min (62.1 CFM) | Max static pressure: 66.5 Pa (0.267 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 100 g
9A0912S401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.27 A | Rated input: 3.24 W | Speed: 3,550 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 56.1 Pa (0.225 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 100 g
9A0912H401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 3,150 min-1 | Max air flow: 1.45 m3/min (51.2 CFM) | Max static pressure: 44 Pa (0.177 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912F401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912M401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.12 A | Rated input: 1.44 W | Speed: 2,250 min-1 | Max air flow: 1.04 m3/min (36.7 CFM) | Max static pressure: 22.6 Pa (0.091 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912L401 Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 1,750 min-1 | Max air flow: 0.8 m3/min (28.2 CFM) | Max static pressure: 13.4 Pa (0.054 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924G401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.19 A | Rated input: 4.56 W | Speed: 3,900 min-1 | Max air flow: 1.76 m3/min (62.1 CFM) | Max static pressure: 66.5 Pa (0.267 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 100 g
9A0924S401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.15 A | Rated input: 3.6 W | Speed: 3,550 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 56.1 Pa (0.225 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924H401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.1 A | Rated input: 2.4 W | Speed: 3,150 min-1 | Max air flow: 1.45 m3/min (51.2 CFM) | Max static pressure: 44 Pa (0.177 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924F401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924M401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 2,250 min-1 | Max air flow: 1.04 m3/min (36.7 CFM) | Max static pressure: 22.6 Pa (0.091 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924L401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 1,750 min-1 | Max air flow: 0.8 m3/min (28.2 CFM) | Max static pressure: 13.4 Pa (0.054 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
DC Axial FansSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 DC Axial Fan 92x92x25 mm (San Cooler)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (12)

9A0912G401, 9A0912S401, 9A0912H401, 9A0912F401, 9A0912M401, 9A0912L401, 9A0924G401, 9A0924S401, 9A0924H401, 9A0924F401 + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9A0912G401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.39 A | Rated input: 4.68 W | Speed: 3,900 min-1 | Max air flow: 1.76 m3/min (62.1 CFM) | Max static pressure: 66.5 Pa (0.267 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 100 g
9A0912S401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.27 A | Rated input: 3.24 W | Speed: 3,550 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 56.1 Pa (0.225 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 100 g
9A0912H401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.21 A | Rated input: 2.52 W | Speed: 3,150 min-1 | Max air flow: 1.45 m3/min (51.2 CFM) | Max static pressure: 44 Pa (0.177 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912F401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.14 A | Rated input: 1.68 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912M401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 6 to 13.8 V | Rated current: 0.12 A | Rated input: 1.44 W | Speed: 2,250 min-1 | Max air flow: 1.04 m3/min (36.7 CFM) | Max static pressure: 22.6 Pa (0.091 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0912L401Size: 92x92x25 mm | Rated voltage: 12 V | Operating voltage range: 7 to 13.8 V | Rated current: 0.07 A | Rated input: 0.84 W | Speed: 1,750 min-1 | Max air flow: 0.8 m3/min (28.2 CFM) | Max static pressure: 13.4 Pa (0.054 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924G401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.19 A | Rated input: 4.56 W | Speed: 3,900 min-1 | Max air flow: 1.76 m3/min (62.1 CFM) | Max static pressure: 66.5 Pa (0.267 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 30,000 h | Mass: 100 g
9A0924S401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.15 A | Rated input: 3.6 W | Speed: 3,550 min-1 | Max air flow: 1.66 m3/min (58.6 CFM) | Max static pressure: 56.1 Pa (0.225 inchH2O) | Noise: 39 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924H401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.1 A | Rated input: 2.4 W | Speed: 3,150 min-1 | Max air flow: 1.45 m3/min (51.2 CFM) | Max static pressure: 44 Pa (0.177 inchH2O) | Noise: 33 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924F401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924M401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.2 W | Speed: 2,250 min-1 | Max air flow: 1.04 m3/min (36.7 CFM) | Max static pressure: 22.6 Pa (0.091 inchH2O) | Noise: 27 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
9A0924L401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 14 to 27.6 V | Rated current: 0.04 A | Rated input: 0.96 W | Speed: 1,750 min-1 | Max air flow: 0.8 m3/min (28.2 CFM) | Max static pressure: 13.4 Pa (0.054 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 100 g
