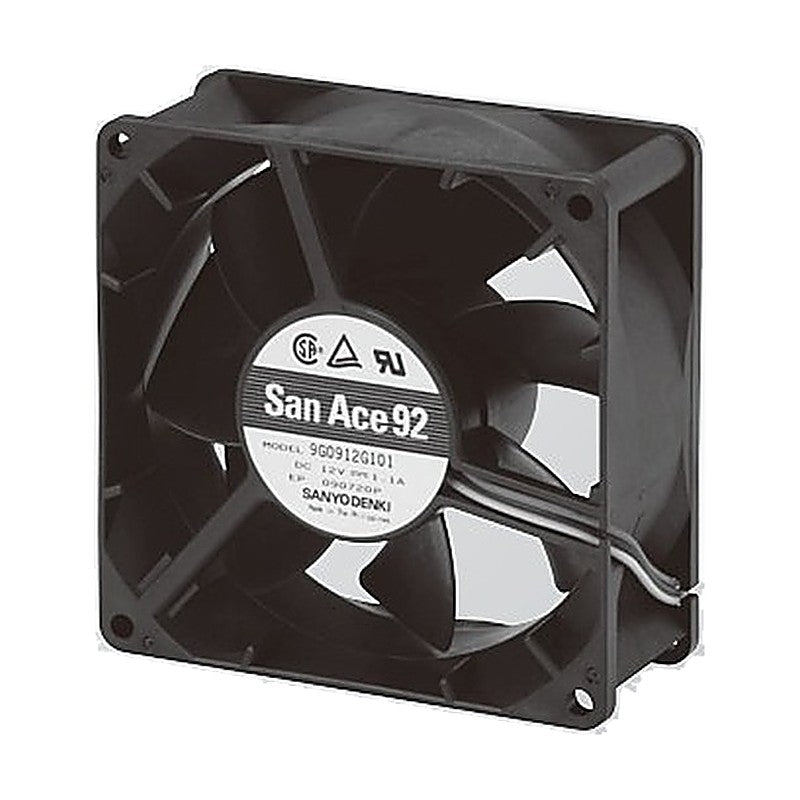

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (G Type)

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (G Type)

The San Ace 92 G Type is a DC axial cooling fan in a 92x92x38 mm frame.

Key features

  • Models are offered for 12, 24 and 48 V DC rated voltage
  • Rated speeds range from 4,000 to 5,000 min-1 with maximum air flow up to 3.1 m3/min and maximum static pressure up to 150 Pa
  • The frame is made of plastic
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 92x92x38 mm
Operating temperature -10 to +60 °C
Expected life 40,000 h
Mass 180 g
9G0912G101 Size: 92x92x38 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 1.1 A | Rated input: 13.2 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0912H101 Size: 92x92x38 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 0.58 A | Rated input: 6.96 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0924G101 Size: 92x92x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.55 A | Rated input: 13.2 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0924H101 Size: 92x92x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.3 A | Rated input: 7.2 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0948G101 Size: 92x92x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 12.96 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0948H101 Size: 92x92x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.16 A | Rated input: 7.68 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (G Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9G0912G101, 9G0912H101, 9G0924G101, 9G0924H101, 9G0948G101, 9G0948H101

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9G0912G101Size: 92x92x38 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 1.1 A | Rated input: 13.2 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0912H101Size: 92x92x38 mm | Rated voltage: 12 V | Operating voltage range: 7.0 to 13.8 V | Rated current: 0.58 A | Rated input: 6.96 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0924G101Size: 92x92x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.55 A | Rated input: 13.2 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0924H101Size: 92x92x38 mm | Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | Rated current: 0.3 A | Rated input: 7.2 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0948G101Size: 92x92x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.27 A | Rated input: 12.96 W | Speed: 5,000 min-1 | Max air flow: 3.10 m3/min (110 CFM) | Max static pressure: 150 Pa (0.602 inchH2O) | Noise: 50 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
9G0948H101Size: 92x92x38 mm | Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | Rated current: 0.16 A | Rated input: 7.68 W | Speed: 4,000 min-1 | Max air flow: 2.54 m3/min (90 CFM) | Max static pressure: 100 Pa (0.402 inchH2O) | Noise: 43 dB(A) | Operating temperature: -10 to +60 °C | Expected life: 40,000 h | Mass: 180 g
