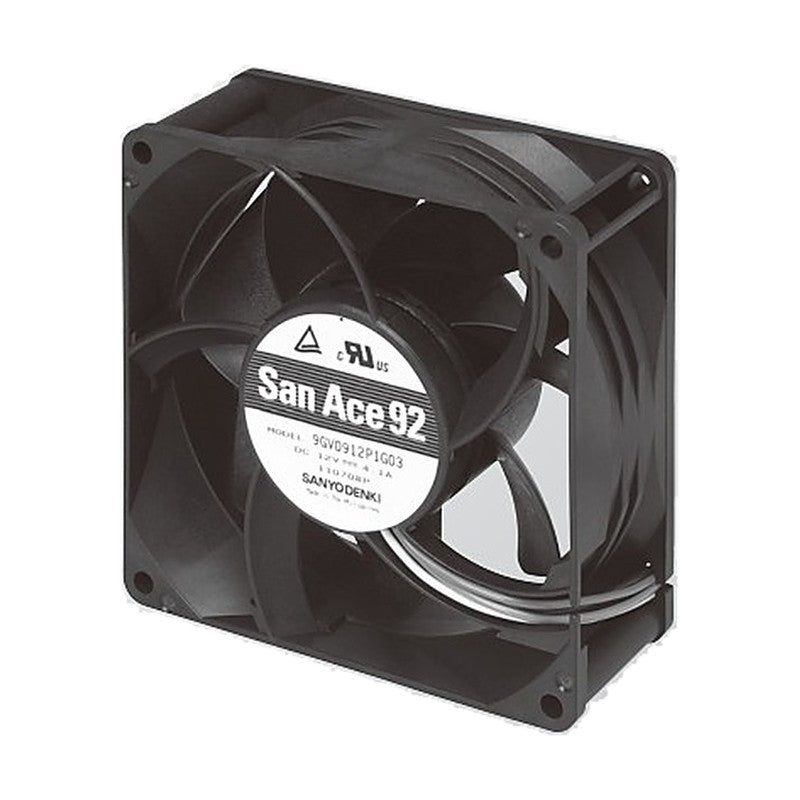

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (GV Type)

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (GV Type)

The San Ace 92 GV Type is a DC axial cooling fan in a 92x92x38 mm frame.

Key features

  • Models are offered for 12 and 48 V DC rated voltage
  • Rated speeds range from 2,700 to 9,000 min-1 with maximum air flow up to 5.35 m3/min and maximum static pressure up to 430 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

PWM duty cycle 100 / 0 %
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 250 g
9GV0912P1G03 Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 4.10 / 0.33 A | Rated input: 49.2 / 4.0 W | Speed: 9,000 / 2,900 min-1 | Max air flow: 5.35 / 1.72 m3/min (189.0 / 60.8 CFM) | Max static pressure: 430.0 / 44.6 Pa (1.73 / 0.18 inchH2O) | Noise: 68 / 37 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
9GV0912P1H03 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 3.50 / 0.29 A | Rated input: 42.0 / 3.5 W | Speed: 8,500 / 2,700 min-1 | Max air flow: 5.05 / 1.60 m3/min (178.0 / 56.5 CFM) | Max static pressure: 385.0 / 38.8 Pa (1.55 / 0.16 inchH2O) | Noise: 64 / 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
9GV0948P1H03 Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.82 / 0.14 A | Rated input: 39.4 / 6.7 W | Speed: 8,500 / 4,000 min-1 | Max air flow: 5.05 / 2.37 m3/min (178.0 / 83.7 CFM) | Max static pressure: 385.0 / 85.2 Pa (1.55 / 0.34 inchH2O) | Noise: 64 / 45 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
DC Axial FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 DC Axial Fan 92x92x38 mm (GV Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (3)

9GV0912P1G03, 9GV0912P1H03, 9GV0948P1H03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GV0912P1G03Rated voltage: 12 V | Operating voltage range: 10.8 to 13.2 V | PWM duty cycle: 100 / 0 % | Rated current: 4.10 / 0.33 A | Rated input: 49.2 / 4.0 W | Speed: 9,000 / 2,900 min-1 | Max air flow: 5.35 / 1.72 m3/min (189.0 / 60.8 CFM) | Max static pressure: 430.0 / 44.6 Pa (1.73 / 0.18 inchH2O) | Noise: 68 / 37 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
9GV0912P1H03Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 3.50 / 0.29 A | Rated input: 42.0 / 3.5 W | Speed: 8,500 / 2,700 min-1 | Max air flow: 5.05 / 1.60 m3/min (178.0 / 56.5 CFM) | Max static pressure: 385.0 / 38.8 Pa (1.55 / 0.16 inchH2O) | Noise: 64 / 34 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
9GV0948P1H03Rated voltage: 48 V | Operating voltage range: 40.8 to 55.2 V | PWM duty cycle: 100 / 0 % | Rated current: 0.82 / 0.14 A | Rated input: 39.4 / 6.7 W | Speed: 8,500 / 4,000 min-1 | Max air flow: 5.05 / 2.37 m3/min (178.0 / 83.7 CFM) | Max static pressure: 385.0 / 85.2 Pa (1.55 / 0.34 inchH2O) | Noise: 64 / 45 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 250 g
