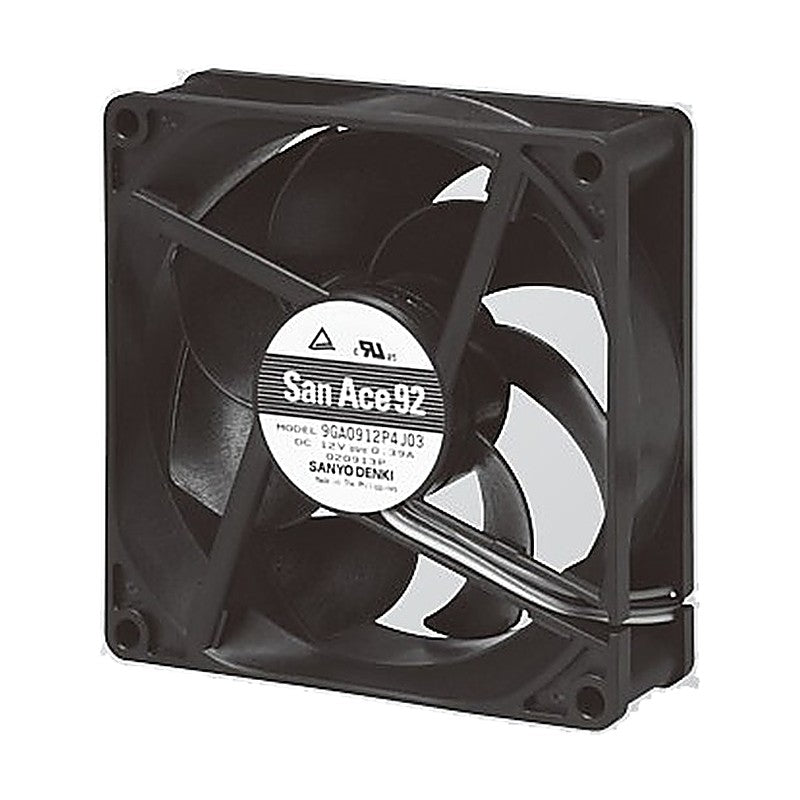

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x25 mm (GA Type)

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x25 mm (GA Type)

The San Ace 92 GA Type is a low power consumption DC axial cooling fan in a 92x92x25 mm frame.

Key features

  • Models are offered for 12 and 24 V DC rated voltage
  • Rated speeds range from 1,500 to 5,000 min-1 with maximum air flow up to 2.2 m3/min and maximum static pressure up to 105 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

PWM duty cycle 100 / 0 %
Operating temperature -10 to +70 °C
Expected life 60,000 h
Mass 125 g
9GA0912P4J03 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.39 / 0.06 A | Rated input: 4.68 / 0.72 W | Speed: 5,000 / 1,500 min-1 | Max air flow: 2.20 / 0.66 m3/min (77.7 / 23.3 CFM) | Max static pressure: 105 / 9.5 Pa (0.42 / 0.04 inchH2O) | Noise: 43 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0912P4G03 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.28 / 0.06 A | Rated input: 3.36 / 0.72 W | Speed: 4,400 / 1,500 min-1 | Max air flow: 1.93 / 0.66 m3/min (68.2 / 23.3 CFM) | Max static pressure: 81 / 9.5 Pa (0.33 / 0.04 inchH2O) | Noise: 39 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0912P4S03 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.2 / 0.06 A | Rated input: 2.4 / 0.72 W | Speed: 3,800 / 1,500 min-1 | Max air flow: 1.67 / 0.66 m3/min (59.0 / 23.3 CFM) | Max static pressure: 60.6 / 9.5 Pa (0.24 / 0.04 inchH2O) | Noise: 35 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4J03 Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.2 / 0.04 A | Rated input: 4.80 / 0.96 W | Speed: 5,000 / 1,500 min-1 | Max air flow: 2.20 / 0.66 m3/min (77.7 / 23.3 CFM) | Max static pressure: 105 / 9.5 Pa (0.42 / 0.04 inchH2O) | Noise: 43 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4G03 Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.15 / 0.04 A | Rated input: 3.60 / 0.96 W | Speed: 4,400 / 1,500 min-1 | Max air flow: 1.93 / 0.66 m3/min (68.2 / 23.3 CFM) | Max static pressure: 81 / 9.5 Pa (0.33 / 0.04 inchH2O) | Noise: 39 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4S03 Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.12 / 0.04 A | Rated input: 2.88 / 0.96 W | Speed: 3,800 / 1,500 min-1 | Max air flow: 1.67 / 0.66 m3/min (59.0 / 23.3 CFM) | Max static pressure: 60.6 / 9.5 Pa (0.24 / 0.04 inchH2O) | Noise: 35 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x25 mm (GA Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9GA0912P4J03, 9GA0912P4G03, 9GA0912P4S03, 9GA0924P4J03, 9GA0924P4G03, 9GA0924P4S03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GA0912P4J03Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.39 / 0.06 A | Rated input: 4.68 / 0.72 W | Speed: 5,000 / 1,500 min-1 | Max air flow: 2.20 / 0.66 m3/min (77.7 / 23.3 CFM) | Max static pressure: 105 / 9.5 Pa (0.42 / 0.04 inchH2O) | Noise: 43 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0912P4G03Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.28 / 0.06 A | Rated input: 3.36 / 0.72 W | Speed: 4,400 / 1,500 min-1 | Max air flow: 1.93 / 0.66 m3/min (68.2 / 23.3 CFM) | Max static pressure: 81 / 9.5 Pa (0.33 / 0.04 inchH2O) | Noise: 39 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0912P4S03Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 0.2 / 0.06 A | Rated input: 2.4 / 0.72 W | Speed: 3,800 / 1,500 min-1 | Max air flow: 1.67 / 0.66 m3/min (59.0 / 23.3 CFM) | Max static pressure: 60.6 / 9.5 Pa (0.24 / 0.04 inchH2O) | Noise: 35 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4J03Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.2 / 0.04 A | Rated input: 4.80 / 0.96 W | Speed: 5,000 / 1,500 min-1 | Max air flow: 2.20 / 0.66 m3/min (77.7 / 23.3 CFM) | Max static pressure: 105 / 9.5 Pa (0.42 / 0.04 inchH2O) | Noise: 43 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4G03Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.15 / 0.04 A | Rated input: 3.60 / 0.96 W | Speed: 4,400 / 1,500 min-1 | Max air flow: 1.93 / 0.66 m3/min (68.2 / 23.3 CFM) | Max static pressure: 81 / 9.5 Pa (0.33 / 0.04 inchH2O) | Noise: 39 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
9GA0924P4S03Rated voltage: 24 V | Operating voltage range: 20.4 to 27.6 V | PWM duty cycle: 100 / 0 % | Rated current: 0.12 / 0.04 A | Rated input: 2.88 / 0.96 W | Speed: 3,800 / 1,500 min-1 | Max air flow: 1.67 / 0.66 m3/min (59.0 / 23.3 CFM) | Max static pressure: 60.6 / 9.5 Pa (0.24 / 0.04 inchH2O) | Noise: 35 / 14 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 60,000 h | Mass: 125 g
