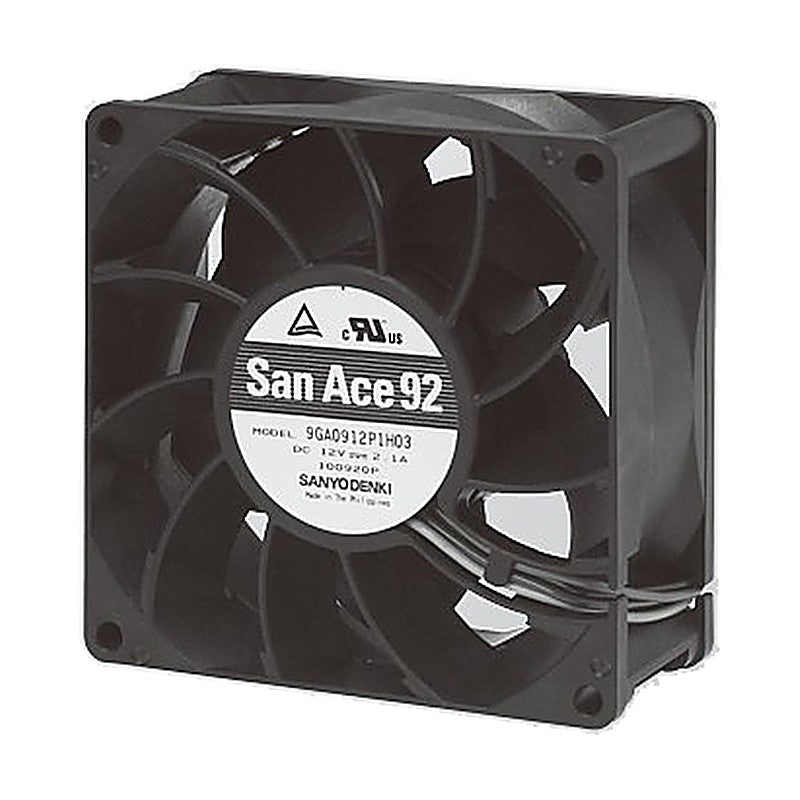

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x38 mm (GA Type)

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x38 mm (GA Type)

The San Ace 92 GA Type is a low power consumption DC axial cooling fan in a 92x92x38 mm frame.

Key features

  • Models are offered for 12 V DC rated voltage
  • Rated speeds range from 2,500 to 9,700 min-1 with maximum air flow up to 4 m3/min and maximum static pressure up to 500 Pa
  • The frame is made of plastic
  • Features a PWM speed control input; values at 100% and minimum PWM duty cycle are listed
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Rated voltage 12 V
Operating voltage range 10.2 to 13.8 V
PWM duty cycle 100 / 0 %
Rated current 2.10 / 0.16 A
Rated input 25.2 / 1.92 W
Speed 9,700 / 2,500 min-1
Max air flow 4.00 / 0.97 m3/min (141 / 34.3 CFM)
Max static pressure 500 / 33.0 Pa (2.01 / 0.13 inchH2O)
Noise 63 / 29 dB(A)
Operating temperature -10 to +70 °C
Expected life 40,000 h at 60°C (70,000 h at 40°C)
Mass 240 g
9GA0912P1H03 Rated voltage: 12 V | Operating voltage range: 10.2 to 13.8 V | PWM duty cycle: 100 / 0 % | Rated current: 2.10 / 0.16 A | Rated input: 25.2 / 1.92 W | Speed: 9,700 / 2,500 min-1 | Max air flow: 4.00 / 0.97 m3/min (141 / 34.3 CFM) | Max static pressure: 500 / 33.0 Pa (2.01 / 0.13 inchH2O) | Noise: 63 / 29 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h at 60°C (70,000 h at 40°C) | Mass: 240 g
DC Axial FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 Low Power Consumption DC Fan 92x92x38 mm (GA Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (1)

9GA0912P1H03

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
