• Sanyo Denki San Ace 92W Splash Proof DC Fan 92x92x25 mm (WP Type)
1 1

Sanyo Denki San Ace 92W Splash Proof DC Fan 92x92x25 mm (WP Type)

Sanyo Denki San Ace 92W Splash Proof DC Fan 92x92x25 mm (WP Type)

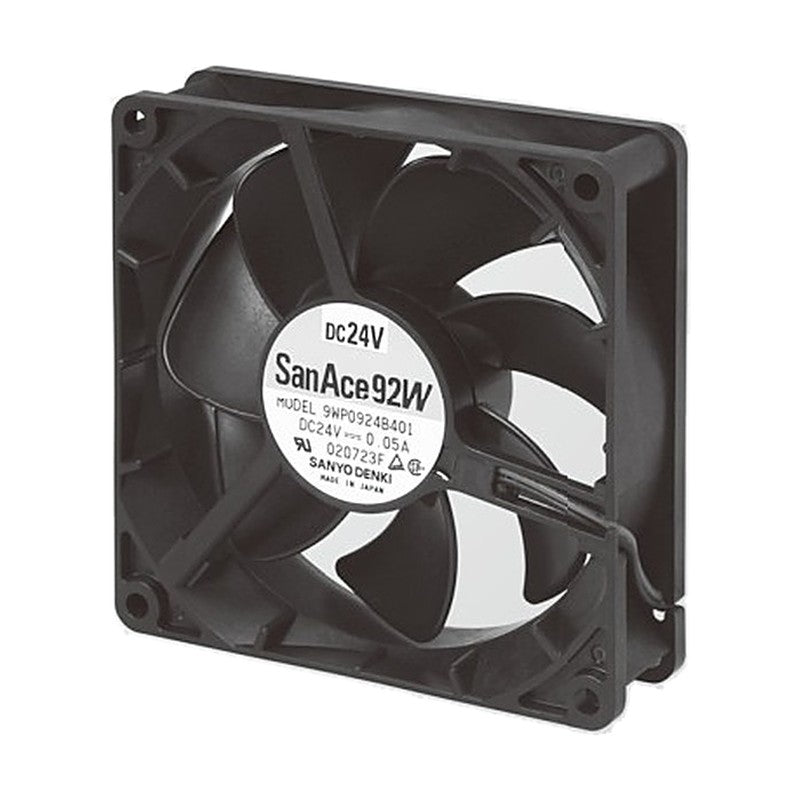

The San Ace 92W WP Type is a splash proof DC axial cooling fan in a 92x92x25 mm frame.

Key features

  • Models are offered for 24 V DC rated voltage
  • Rated speeds range from 2,000 to 2,650 min-1 with maximum air flow up to 1.24 m3/min and maximum static pressure up to 32.2 Pa
  • The frame is made of plastic
  • Rated IP55: dust resistant device with protection against water jets
  • Expected life is rated as L10 (90% survival) at 60°C, rated voltage, continuous operation in free air

Specifications

Size 92x92x25 mm
Rated voltage 24 V
Operating voltage range 12 to 27.6 V
Operating temperature -10 to +70 °C
Expected life 40,000 h
Mass 120 g
9WP0924F401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WP0924B401 Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 2,000 min-1 | Max air flow: 0.90 m3/min (31.8 CFM) | Max static pressure: 18.0 Pa (0.072 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
DC Axial FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92W Splash Proof DC Fan 92x92x25 mm (WP Type)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9WP0924F401, 9WP0924B401

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WP0924F401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.08 A | Rated input: 1.92 W | Speed: 2,650 min-1 | Max air flow: 1.24 m3/min (43.8 CFM) | Max static pressure: 32.2 Pa (0.129 inchH2O) | Noise: 30 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
9WP0924B401Size: 92x92x25 mm | Rated voltage: 24 V | Operating voltage range: 12 to 27.6 V | Rated current: 0.05 A | Rated input: 1.20 W | Speed: 2,000 min-1 | Max air flow: 0.90 m3/min (31.8 CFM) | Max static pressure: 18.0 Pa (0.072 inchH2O) | Noise: 23 dB(A) | Operating temperature: -10 to +70 °C | Expected life: 40,000 h | Mass: 120 g
