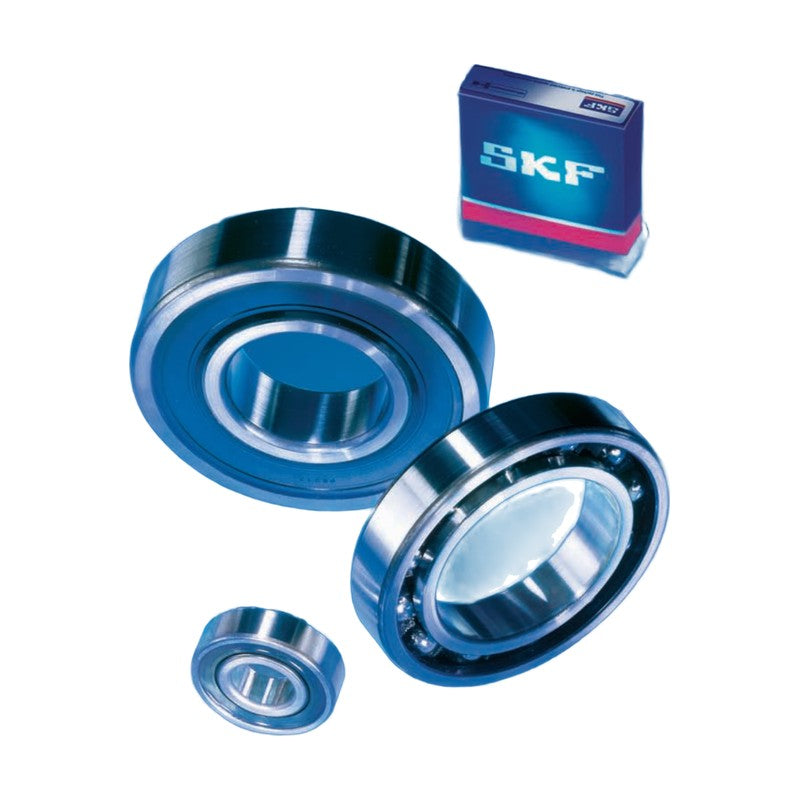

SKF 2 and 3 Series Filling Slot Deep Groove Ball Bearings

SKF 2 and 3 Series Filling Slot Deep Groove Ball Bearings

SKF single row deep groove ball bearings with a filling slot in the inner and outer rings, allowing more balls and higher radial load carrying capacity. Available open, shielded and with snap ring groove.

Key features

  • Filling slot design accommodates more balls for higher radial load capacity
  • Limited axial load capacity compared with standard deep groove ball bearings
  • Open, Z and 2Z shielded variants
  • Snap ring groove variants NR, ZNR and 2ZNR for axial location
  • Interchangeable boundary dimensions with 62 and 63 series

Specifications

Bearing type Filling slot deep groove ball bearing
Series 2xx, 3xx
Variants Open, Z, 2Z, NR, ZNR, 2ZNR
Design Single row, non-separable
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 366-371
305 d: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
305-Z d: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
305-2Z d: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
206 d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-Z d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-2Z d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
306 d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-Z d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-2Z d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
207 d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-Z d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-2Z d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
307 d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-Z d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-2Z d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
208 d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-Z d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-2Z d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
308 d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-Z d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-2Z d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
209 d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-Z d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-2Z d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
309 d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-Z d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-2Z d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
210 d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-Z d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-2Z d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
310 d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-Z d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-2Z d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
211 d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-Z d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-2Z d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
311 d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-Z d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-2Z d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
212 d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-Z d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-2Z d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
312 d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-Z d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-2Z d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
213 d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-Z d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-2Z d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
313 d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-Z d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-2Z d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
214 d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-Z d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-2Z d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
314 d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-Z d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-2Z d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
215 d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-Z d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-2Z d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
315 d: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
315-Z d: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
315-2Z d: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
216 d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-Z d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-2Z d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
316 d: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
316-Z d: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
316-2Z d: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
217 d: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
217-Z d: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
217-2Z d: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
317 d: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
317-Z d: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
317-2Z d: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
218 d: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
218-Z d: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
218-2Z d: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
318 d: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
318-Z d: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
318-2Z d: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
219 d: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
219-Z d: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
219-2Z d: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
220 d: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
220-Z d: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
220-2Z d: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
305 NR d: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
305-ZNR d: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
305-2ZNR d: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
206 NR d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-ZNR d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-2ZNR d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
306 NR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-ZNR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-2ZNR d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
207 NR d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-ZNR d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-2ZNR d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
307 NR d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-ZNR d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-2ZNR d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
208 NR d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-ZNR d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-2ZNR d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
308 NR d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-ZNR d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-2ZNR d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
209 NR d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-ZNR d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-2ZNR d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
309 NR d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-ZNR d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-2ZNR d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
210 NR d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-ZNR d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-2ZNR d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
310 NR d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-ZNR d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-2ZNR d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
211 NR d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-ZNR d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-2ZNR d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
311 NR d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-ZNR d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-2ZNR d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
212 NR d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-ZNR d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-2ZNR d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
312 NR d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-ZNR d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-2ZNR d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
213 NR d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-ZNR d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-2ZNR d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
313 NR d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-ZNR d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-2ZNR d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
214 NR d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-ZNR d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-2ZNR d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
314 NR d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-ZNR d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-2ZNR d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
215 NR d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-ZNR d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-2ZNR d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
216 NR d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-ZNR d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-2ZNR d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
217 NR d: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
218 NR d: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
219 NR d: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
Deep Groove Ball BearingsSKF
153 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 2 and 3 Series Filling Slot Deep Groove Ball Bearings

Brand SKF·Deep Groove Ball Bearings

Available part numbers (153)

305, 305-Z, 305-2Z, 206, 206-Z, 206-2Z, 306, 306-Z, 306-2Z, 207 + 143 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
305d: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
305-Zd: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
305-2Zd: 25 mm | D: 62 mm | B: 17 mm | C: 22.9 kN | C0: 15.6 kN | Limiting speed: 13000 r/min
206d: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-Zd: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-2Zd: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
306d: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-Zd: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-2Zd: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
207d: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-Zd: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-2Zd: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
307d: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-Zd: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-2Zd: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
208d: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-Zd: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-2Zd: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
308d: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-Zd: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-2Zd: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
209d: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-Zd: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-2Zd: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
309d: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-Zd: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-2Zd: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
210d: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-Zd: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-2Zd: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
310d: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-Zd: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-2Zd: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
211d: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-Zd: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-2Zd: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
311d: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-Zd: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-2Zd: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
212d: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-Zd: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-2Zd: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
312d: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-Zd: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-2Zd: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
213d: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-Zd: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-2Zd: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
313d: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-Zd: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-2Zd: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
214d: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-Zd: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-2Zd: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
314d: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-Zd: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-2Zd: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
215d: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-Zd: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-2Zd: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
315d: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
315-Zd: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
315-2Zd: 75 mm | D: 160 mm | B: 37 mm | C: 125 kN | C0: 116 kN | Limiting speed: 4800 r/min
216d: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-Zd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-2Zd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
316d: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
316-Zd: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
316-2Zd: 80 mm | D: 170 mm | B: 39 mm | C: 138 kN | C0: 129 kN | Limiting speed: 4500 r/min
217d: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
217-Zd: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
217-2Zd: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
317d: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
317-Zd: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
317-2Zd: 85 mm | D: 180 mm | B: 41 mm | C: 147 kN | C0: 146 kN | Limiting speed: 4300 r/min
218d: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
218-Zd: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
218-2Zd: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
318d: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
318-Zd: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
318-2Zd: 90 mm | D: 190 mm | B: 43 mm | C: 157 kN | C0: 160 kN | Limiting speed: 4000 r/min
219d: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
219-Zd: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
219-2Zd: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min
220d: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
220-Zd: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
220-2Zd: 100 mm | D: 180 mm | B: 34 mm | C: 134 kN | C0: 140 kN | Limiting speed: 4000 r/min
305 NRd: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
305-ZNRd: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
305-2ZNRd: 25 mm | D: 62 mm | B: 17 mm | C: 23 kN | C0: 16 kN | Limiting speed: 13000 r/min
206 NRd: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-ZNRd: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
206-2ZNRd: 30 mm | D: 62 mm | B: 16 mm | C: 22.9 kN | C0: 17.3 kN | Limiting speed: 12000 r/min
306 NRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-ZNRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
306-2ZNRd: 30 mm | D: 72 mm | B: 19 mm | C: 29.2 kN | C0: 20.8 kN | Limiting speed: 11000 r/min
207 NRd: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-ZNRd: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
207-2ZNRd: 35 mm | D: 72 mm | B: 17 mm | C: 29.7 kN | C0: 22.8 kN | Limiting speed: 11000 r/min
307 NRd: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-ZNRd: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
307-2ZNRd: 35 mm | D: 80 mm | B: 21 mm | C: 39.1 kN | C0: 28.5 kN | Limiting speed: 10000 r/min
208 NRd: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-ZNRd: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
208-2ZNRd: 40 mm | D: 80 mm | B: 18 mm | C: 33.6 kN | C0: 26.5 kN | Limiting speed: 9500 r/min
308 NRd: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-ZNRd: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
308-2ZNRd: 40 mm | D: 90 mm | B: 23 mm | C: 46.8 kN | C0: 36 kN | Limiting speed: 9000 r/min
209 NRd: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-ZNRd: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
209-2ZNRd: 45 mm | D: 85 mm | B: 19 mm | C: 39.6 kN | C0: 32.5 kN | Limiting speed: 9000 r/min
309 NRd: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-ZNRd: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
309-2ZNRd: 45 mm | D: 100 mm | B: 25 mm | C: 59.4 kN | C0: 46.5 kN | Limiting speed: 8000 r/min
210 NRd: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-ZNRd: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
210-2ZNRd: 50 mm | D: 90 mm | B: 20 mm | C: 39.1 kN | C0: 34.5 kN | Limiting speed: 8000 r/min
310 NRd: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-ZNRd: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
310-2ZNRd: 50 mm | D: 110 mm | B: 27 mm | C: 64.4 kN | C0: 52 kN | Limiting speed: 7000 r/min
211 NRd: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-ZNRd: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
211-2ZNRd: 55 mm | D: 100 mm | B: 21 mm | C: 48.4 kN | C0: 44 kN | Limiting speed: 7500 r/min
311 NRd: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-ZNRd: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
311-2ZNRd: 55 mm | D: 120 mm | B: 29 mm | C: 79.2 kN | C0: 67 kN | Limiting speed: 6700 r/min
212 NRd: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-ZNRd: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
212-2ZNRd: 60 mm | D: 110 mm | B: 22 mm | C: 56.1 kN | C0: 50 kN | Limiting speed: 6700 r/min
312 NRd: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-ZNRd: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
312-2ZNRd: 60 mm | D: 130 mm | B: 31 mm | C: 91.3 kN | C0: 78 kN | Limiting speed: 6000 r/min
213 NRd: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-ZNRd: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
213-2ZNRd: 65 mm | D: 120 mm | B: 23 mm | C: 60.5 kN | C0: 58.5 kN | Limiting speed: 6000 r/min
313 NRd: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-ZNRd: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
313-2ZNRd: 65 mm | D: 140 mm | B: 33 mm | C: 102 kN | C0: 90 kN | Limiting speed: 5600 r/min
214 NRd: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-ZNRd: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
214-2ZNRd: 70 mm | D: 125 mm | B: 24 mm | C: 66 kN | C0: 65.5 kN | Limiting speed: 6000 r/min
314 NRd: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-ZNRd: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
314-2ZNRd: 70 mm | D: 150 mm | B: 35 mm | C: 114 kN | C0: 102 kN | Limiting speed: 5000 r/min
215 NRd: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-ZNRd: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
215-2ZNRd: 75 mm | D: 130 mm | B: 25 mm | C: 72.1 kN | C0: 72 kN | Limiting speed: 5600 r/min
216 NRd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-ZNRd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
216-2ZNRd: 80 mm | D: 140 mm | B: 26 mm | C: 88 kN | C0: 85 kN | Limiting speed: 5300 r/min
217 NRd: 85 mm | D: 150 mm | B: 28 mm | C: 96.8 kN | C0: 100 kN | Limiting speed: 4800 r/min
218 NRd: 90 mm | D: 160 mm | B: 30 mm | C: 112 kN | C0: 114 kN | Limiting speed: 4500 r/min
219 NRd: 95 mm | D: 170 mm | B: 32 mm | C: 121 kN | C0: 122 kN | Limiting speed: 4300 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
