SKF FY Square Flanged Units with Eccentric Collar (FM/WF)

SKF FY Square Flanged Units with Eccentric Collar (FM/WF)

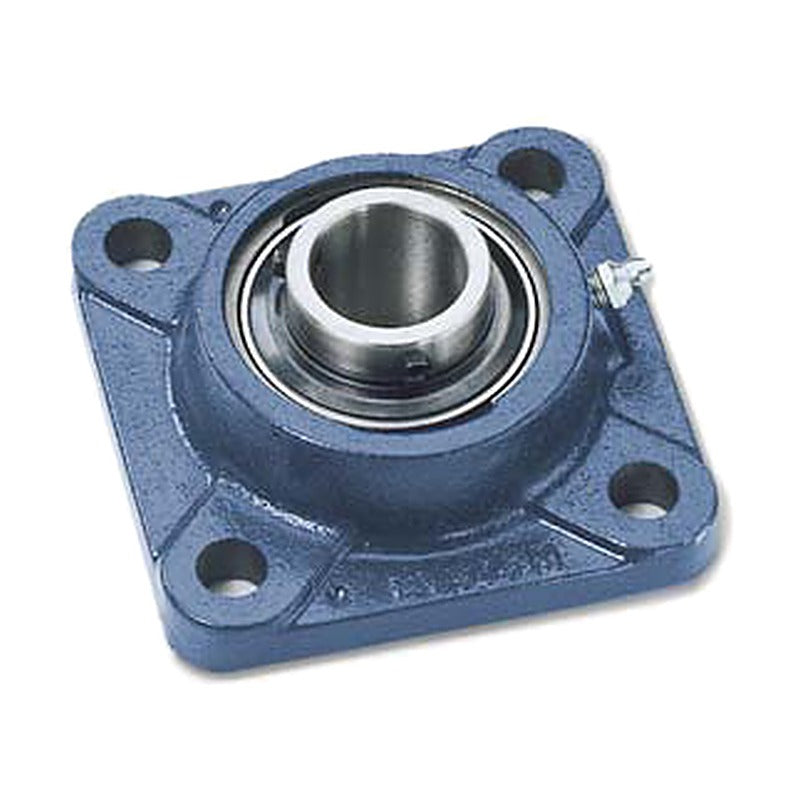

SKF FY Square Flanged Units with Eccentric Collar (FM/WF): ready-to-mount Y-bearing units with a cast iron square-flanged housing; eccentric locking collar, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing cast iron square-flanged housing
Brand SKF
Category Mounted Bearing Units
Example designation FY 15 FM
Source SKF Y-bearings and Y-bearing units, p. 188-193
FY 15 FM Shaft: 15 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 54 mm
FY 17 FM Shaft: 17 mm | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 54 mm
FY 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 63.5 mm
FY 20 WF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 63.5 mm
FY 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FY 25 WF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FY 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 82.5 mm
FY 30 WF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 82.5 mm
FY 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 35 WF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 101.5 mm
FY 40 WF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 101.5 mm
FY 45 FM Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FY 45 WF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FY 50 FM Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FY 50 WF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FY 55 FM Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FY 55 WF Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FY 60 FM Shaft: 60 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 143 mm
FY 60 WF Shaft: 60 mm | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 143 mm
FY 5/8 FM Shaft: 5/8 in. | C: 9.56 kN | C0: 4.75 kN | Bolt spacing J: 54 mm
FY 3/4 FM Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Bolt spacing J: 63.5 mm
FY 7/8 FM Shaft: 7/8 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FY 1. FM Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FY 1. WF Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Bolt spacing J: 70 mm
FY 1.1/8 FM Shaft: 1 1/8 in. | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 82.5 mm
FY 1.3/16 FM Shaft: 1 3/16 in. | C: 19.5 kN | C0: 11.2 kN | Bolt spacing J: 82.5 mm
FY 1.1/4 FM Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 1.1/4 WF Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 1.3/8 FM Shaft: 1 3/8 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 1.7/16 FM Shaft: 1 7/16 in. | C: 25.5 kN | C0: 15.3 kN | Bolt spacing J: 92 mm
FY 1.1/2 FM Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 101.5 mm
FY 1.1/2 WF Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Bolt spacing J: 101.5 mm
FY 1.11/16 FM Shaft: 1 11/16 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FY 1.3/4 FM Shaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Bolt spacing J: 105 mm
FY 1.15/16 FM Shaft: 1 15/16 in. | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FY 1.15/16 WF Shaft: 1 15/16 in. | C: 35.1 kN | C0: 23.2 kN | Bolt spacing J: 111 mm
FY 2. FM Shaft: 2 in. | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FY 2.3/16 FM Shaft: 2 3/16 in. | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FY 2.3/16 WF Shaft: 2 3/16 in. | C: 43.6 kN | C0: 29 kN | Bolt spacing J: 130 mm
FY 2.7/16 WF Shaft: 2 7/16 in. | C: 52.7 kN | C0: 36 kN | Bolt spacing J: 143 mm
