• SKF FYR and FYRP Round/Piloted Flanged Roller Bearing Units (Inch)
1 1

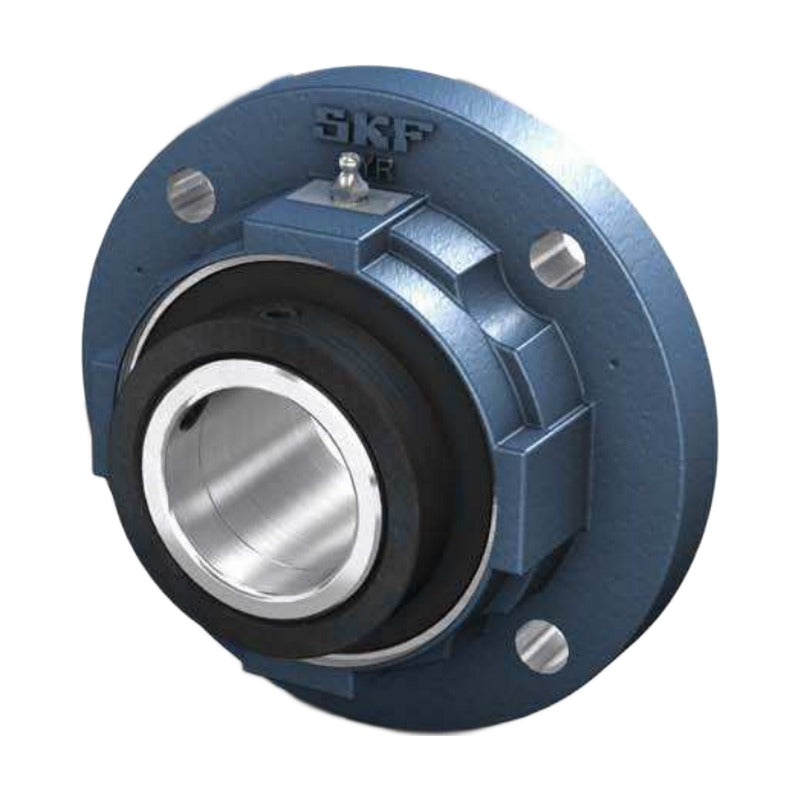

SKF FYR and FYRP Round/Piloted Flanged Roller Bearing Units (Inch)

SKF FYR and FYRP Round/Piloted Flanged Roller Bearing Units (Inch)

SKF FYR and FYRP Round/Piloted Flanged inch roller bearing units with spherical roller bearings; N suffix denotes SKF ConCentra (sleeve-mounted) units.

Key features

  • Ready-to-mount units for inch shafts
  • Spherical roller bearing for high load capacity and misalignment
  • N suffix: SKF ConCentra mounting; other units collar-mounted
  • Choice of TriGard, labyrinth and radial shaft seals
  • Interchangeable with common North American mounted units

Specifications

Housing FYR and FYRP Round/Piloted Flanged
Dimensions Inch
Bearing type Spherical roller
Suffix N SKF ConCentra
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 718-721
FYR 1 7/16 Shaft: 1 7/16 in. | C: 16600 lbf | Pilot/flange Da: 3 7/8 in. | Bolt circle J: 5 in. | Mass: 8.5 lb
FYRP 1 7/16 Shaft: 1 7/16 in. | C: 16600 lbf | Pilot/flange Da: 3 5/8 in. | Bolt circle J: 4 3/8 in. | Mass: 6.3 lb
FYR 1 1/2 Shaft: 1 1/2 in. | C: 16600 lbf | Pilot/flange Da: 3 7/8 in. | Bolt circle J: 5 in. | Mass: 8.4 lb
FYRP 1 1/2 Shaft: 1 1/2 in. | C: 16600 lbf | Pilot/flange Da: 3 5/8 in. | Bolt circle J: 4 3/8 in. | Mass: 6.3 lb
FYR 1 11/16 Shaft: 1 11/16 in. | C: 17300 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 1/2 in. | Mass: 10.5 lb
FYRP 1 11/16 Shaft: 1 11/16 in. | C: 17300 lbf | Pilot/flange Da: 4 1/4 in. | Bolt circle J: 5 1/8 in. | Mass: 7.8 lb
FYR 1 3/4 Shaft: 1 3/4 in. | C: 17300 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 1/2 in. | Mass: 11 lb
FYRP 1 3/4 Shaft: 1 3/4 in. | C: 17300 lbf | Pilot/flange Da: 4 1/4 in. | Bolt circle J: 5 1/8 in. | Mass: 7.7 lb
FYR 1 15/16 Shaft: 1 15/16 in. | C: 19000 lbf | Pilot/flange Da: 4 3/4 in. | Bolt circle J: 5 3/4 in. | Mass: 11 lb
FYRP 1 15/16 Shaft: 1 15/16 in. | C: 19000 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 3/8 in. | Mass: 8.2 lb
FYR 2 Shaft: 2 in. | C: 19000 lbf | Pilot/flange Da: 4 3/4 in. | Bolt circle J: 5 3/4 in. | Mass: 10.5 lb
FYRP 2 Shaft: 2 in. | C: 19000 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 3/8 in. | Mass: 8.2 lb
FYR 2 3/16 Shaft: 2 3/16 in. | C: 22400 lbf | Pilot/flange Da: 5 1/8 in. | Bolt circle J: 6 3/8 in. | Mass: 13.5 lb
FYRP 2 3/16 Shaft: 2 3/16 in. | C: 22400 lbf | Pilot/flange Da: 5 in. | Bolt circle J: 6 in. | Mass: 9.9 lb
FYR 2 7/16 Shaft: 2 7/16 in. | C: 33300 lbf | Pilot/flange Da: 5 3/4 in. | Bolt circle J: 6 3/4 in. | Mass: 17.5 lb
FYRP 2 7/16 Shaft: 2 7/16 in. | C: 33300 lbf | Pilot/flange Da: 5 1/2 in. | Bolt circle J: 6 1/2 in. | Mass: 14 lb
FYR 2 1/2 Shaft: 2 1/2 in. | C: 33300 lbf | Pilot/flange Da: 5 3/4 in. | Bolt circle J: 6 3/4 in. | Mass: 17.5 lb
FYRP 2 1/2 Shaft: 2 1/2 in. | C: 33300 lbf | Pilot/flange Da: 5 1/2 in. | Bolt circle J: 6 1/2 in. | Mass: 13.5 lb
FYR 2 11/16 Shaft: 2 11/16 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 27 lb
FYRP 2 11/16 Shaft: 2 11/16 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 20.5 lb
FYR 2 3/4 Shaft: 2 3/4 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 27 lb
FYRP 2 3/4 Shaft: 2 3/4 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 20.5 lb
FYR 2 15/16 Shaft: 2 15/16 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 26 lb
FYRP 2 15/16 Shaft: 2 15/16 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 19.5 lb
FYR 3 Shaft: 3 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 26 lb
FYRP 3 Shaft: 3 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 19.5 lb
FYR 3 7/16 Shaft: 3 7/16 in. | C: 56900 lbf | Pilot/flange Da: 7 5/8 in. | Bolt circle J: 9 1/2 in. | Mass: 38.0 lb
FYRP 3 7/16 Shaft: 3 7/16 in. | C: 56900 lbf | Pilot/flange Da: 7 3/8 in. | Bolt circle J: 8 5/8 in. | Mass: 30 lb
FYR 3 1/2 Shaft: 3 1/2 in. | C: 56900 lbf | Pilot/flange Da: 7 5/8 in. | Bolt circle J: 9 1/2 in. | Mass: 38 lb
FYRP 3 1/2 Shaft: 3 1/2 in. | C: 56900 lbf | Pilot/flange Da: 7 3/8 in. | Bolt circle J: 8 5/8 in. | Mass: 29.0 lb
FYR 3 11/16 Shaft: 3 11/16 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 53.0 lb
FYRP 3 11/16 Shaft: 3 11/16 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 41 lb
FYR 3 15/16 Shaft: 3 15/16 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 52 lb
FYRP 3 15/16 Shaft: 3 15/16 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 40.0 lb
FYR 4 Shaft: 4 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 52.0 lb
FYRP 4 Shaft: 4 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 40 lb
Mounted Bearing UnitsSKF
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF FYR and FYRP Round/Piloted Flanged Roller Bearing Units (Inch)

Brand SKF·Mounted Bearing Units

Available part numbers (36)

FYR 1 7/16, FYRP 1 7/16, FYR 1 1/2, FYRP 1 1/2, FYR 1 11/16, FYRP 1 11/16, FYR 1 3/4, FYRP 1 3/4, FYR 1 15/16, FYRP 1 15/16 + 26 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FYR 1 7/16Shaft: 1 7/16 in. | C: 16600 lbf | Pilot/flange Da: 3 7/8 in. | Bolt circle J: 5 in. | Mass: 8.5 lb
FYRP 1 7/16Shaft: 1 7/16 in. | C: 16600 lbf | Pilot/flange Da: 3 5/8 in. | Bolt circle J: 4 3/8 in. | Mass: 6.3 lb
FYR 1 1/2Shaft: 1 1/2 in. | C: 16600 lbf | Pilot/flange Da: 3 7/8 in. | Bolt circle J: 5 in. | Mass: 8.4 lb
FYRP 1 1/2Shaft: 1 1/2 in. | C: 16600 lbf | Pilot/flange Da: 3 5/8 in. | Bolt circle J: 4 3/8 in. | Mass: 6.3 lb
FYR 1 11/16Shaft: 1 11/16 in. | C: 17300 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 1/2 in. | Mass: 10.5 lb
FYRP 1 11/16Shaft: 1 11/16 in. | C: 17300 lbf | Pilot/flange Da: 4 1/4 in. | Bolt circle J: 5 1/8 in. | Mass: 7.8 lb
FYR 1 3/4Shaft: 1 3/4 in. | C: 17300 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 1/2 in. | Mass: 11 lb
FYRP 1 3/4Shaft: 1 3/4 in. | C: 17300 lbf | Pilot/flange Da: 4 1/4 in. | Bolt circle J: 5 1/8 in. | Mass: 7.7 lb
FYR 1 15/16Shaft: 1 15/16 in. | C: 19000 lbf | Pilot/flange Da: 4 3/4 in. | Bolt circle J: 5 3/4 in. | Mass: 11 lb
FYRP 1 15/16Shaft: 1 15/16 in. | C: 19000 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 3/8 in. | Mass: 8.2 lb
FYR 2Shaft: 2 in. | C: 19000 lbf | Pilot/flange Da: 4 3/4 in. | Bolt circle J: 5 3/4 in. | Mass: 10.5 lb
FYRP 2Shaft: 2 in. | C: 19000 lbf | Pilot/flange Da: 4 1/2 in. | Bolt circle J: 5 3/8 in. | Mass: 8.2 lb
FYR 2 3/16Shaft: 2 3/16 in. | C: 22400 lbf | Pilot/flange Da: 5 1/8 in. | Bolt circle J: 6 3/8 in. | Mass: 13.5 lb
FYRP 2 3/16Shaft: 2 3/16 in. | C: 22400 lbf | Pilot/flange Da: 5 in. | Bolt circle J: 6 in. | Mass: 9.9 lb
FYR 2 7/16Shaft: 2 7/16 in. | C: 33300 lbf | Pilot/flange Da: 5 3/4 in. | Bolt circle J: 6 3/4 in. | Mass: 17.5 lb
FYRP 2 7/16Shaft: 2 7/16 in. | C: 33300 lbf | Pilot/flange Da: 5 1/2 in. | Bolt circle J: 6 1/2 in. | Mass: 14 lb
FYR 2 1/2Shaft: 2 1/2 in. | C: 33300 lbf | Pilot/flange Da: 5 3/4 in. | Bolt circle J: 6 3/4 in. | Mass: 17.5 lb
FYRP 2 1/2Shaft: 2 1/2 in. | C: 33300 lbf | Pilot/flange Da: 5 1/2 in. | Bolt circle J: 6 1/2 in. | Mass: 13.5 lb
FYR 2 11/16Shaft: 2 11/16 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 27 lb
FYRP 2 11/16Shaft: 2 11/16 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 20.5 lb
FYR 2 3/4Shaft: 2 3/4 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 27 lb
FYRP 2 3/4Shaft: 2 3/4 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 20.5 lb
FYR 2 15/16Shaft: 2 15/16 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 26 lb
FYRP 2 15/16Shaft: 2 15/16 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 19.5 lb
FYR 3Shaft: 3 in. | C: 35500 lbf | Pilot/flange Da: 6 5/8 in. | Bolt circle J: 7 7/8 in. | Mass: 26 lb
FYRP 3Shaft: 3 in. | C: 35500 lbf | Pilot/flange Da: 6 3/8 in. | Bolt circle J: 7 1/2 in. | Mass: 19.5 lb
FYR 3 7/16Shaft: 3 7/16 in. | C: 56900 lbf | Pilot/flange Da: 7 5/8 in. | Bolt circle J: 9 1/2 in. | Mass: 38.0 lb
FYRP 3 7/16Shaft: 3 7/16 in. | C: 56900 lbf | Pilot/flange Da: 7 3/8 in. | Bolt circle J: 8 5/8 in. | Mass: 30 lb
FYR 3 1/2Shaft: 3 1/2 in. | C: 56900 lbf | Pilot/flange Da: 7 5/8 in. | Bolt circle J: 9 1/2 in. | Mass: 38 lb
FYRP 3 1/2Shaft: 3 1/2 in. | C: 56900 lbf | Pilot/flange Da: 7 3/8 in. | Bolt circle J: 8 5/8 in. | Mass: 29.0 lb
FYR 3 11/16Shaft: 3 11/16 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 53.0 lb
FYRP 3 11/16Shaft: 3 11/16 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 41 lb
FYR 3 15/16Shaft: 3 15/16 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 52 lb
FYRP 3 15/16Shaft: 3 15/16 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 40.0 lb
FYR 4Shaft: 4 in. | C: 69900 lbf | Pilot/flange Da: 8 3/8 in. | Bolt circle J: 10 3/4 in. | Mass: 52.0 lb
FYRP 4Shaft: 4 in. | C: 69900 lbf | Pilot/flange Da: 8 1/8 in. | Bolt circle J: 9 3/8 in. | Mass: 40 lb
