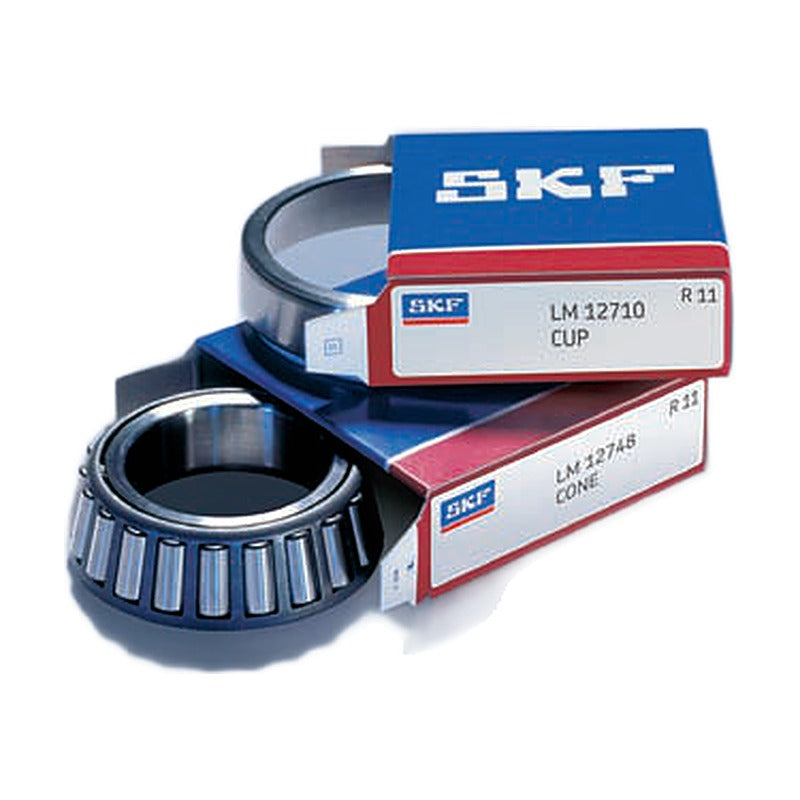

SKF Inch Single Row Tapered Roller Bearings (Cone/Cup Sets)

SKF Inch Single Row Tapered Roller Bearings (Cone/Cup Sets)

SKF inch-dimension single row tapered roller bearings designated as cone/cup sets to ABMA standards. Bore diameters 14.989-838.2 mm (metric equivalents as printed).

Key features

  • Designated as cone/cup assemblies to ABMA Standard 19.2
  • Cone and cup can be supplied separately within the same bearing series
  • Combined radial and one-direction axial loads
  • Bore diameters from 14.989 mm (0.5906 in) to 838.200 mm
  • Bearing series (e.g. LM 11700, HM 801300) listed for each set

Specifications

Bearing type Single row tapered roller bearing, inch
Bore range d 14.989-838.2 mm
Width key T = total bearing width
Dimensions mm (inch values in catalogue)
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 640-667
A 4059/A 4138 d: 14.989 mm | D: 34.988 mm | T: 10.998 mm | C: 13.4 kN | C0: 13.2 kN | Limiting speed: 24000 r/min
03062/03162/Q d: 15.875 mm | D: 41.275 mm | T: 14.288 mm | C: 22 kN | C0: 21.2 kN | Limiting speed: 20000 r/min
11590/11520/Q d: 15.875 mm | D: 42.862 mm | T: 14.288 mm | C: 17.6 kN | C0: 17.6 kN | Limiting speed: 17000 r/min
LM 11749/710/Q d: 17.462 mm | D: 39.878 mm | T: 13.843 mm | C: 21.2 kN | C0: 20.8 kN | Limiting speed: 20000 r/min
LM 11749/710/QVC027 d: 17.462 mm | D: 39.878 mm | T: 13.843 mm | C: 21.2 kN | C0: 20.8 kN | Limiting speed: 20000 r/min
LM 11949/910/Q d: 19.050 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 27.5 kN | Limiting speed: 18000 r/min
09067/09195/Q d: 19.050 mm | D: 49.225 mm | T: 18.034 mm | C: 39.1 kN | C0: 40 kN | Limiting speed: 17000 r/min
09074/09195/QVQ494 d: 19.050 mm | D: 49.225 mm | T: 19.845 mm | C: 39.1 kN | C0: 40 kN | Limiting speed: 17000 r/min
LM 12748/710 d: 21.430 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
M 12649/610/Q d: 21.430 mm | D: 50.005 mm | T: 17.526 mm | C: 36.9 kN | C0: 38 kN | Limiting speed: 16000 r/min
LM 12749/710/Q d: 21.986 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
LM 12749/711/Q d: 21.986 mm | D: 45.974 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
1380/1328/Q d: 22.225 mm | D: 52.388 mm | T: 19.368 mm | C: 41.8 kN | C0: 44 kN | Limiting speed: 15000 r/min
L 44643/610/Q d: 25.400 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 30 kN | Limiting speed: 15000 r/min
07100 S/07210 X/Q d: 25.400 mm | D: 50.800 mm | T: 15.011 mm | C: 28.1 kN | C0: 30.5 kN | Limiting speed: 15000 r/min
15578/15520 d: 25.400 mm | D: 57.150 mm | T: 17.462 mm | C: 40.2 kN | C0: 45.5 kN | Limiting speed: 13000 r/min
M 84548/2/510/2/QVQ506 d: 25.400 mm | D: 57.150 mm | T: 19.431 mm | C: 39.6 kN | C0: 45 kN | Limiting speed: 13000 r/min
15101/15245 d: 25.400 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15103 S/15243/Q d: 26.157 mm | D: 61.912 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15103 S/15245/Q d: 26.157 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
L 44649/610/Q d: 26.988 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 30 kN | Limiting speed: 15000 r/min
1982 F/1924 A/QVQ519 d: 27.500 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
1985/1922/Q d: 28.575 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
1988/1922/Q d: 28.575 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
M 86647/610/QCL7C d: 28.575 mm | D: 64.292 mm | T: 21.433 mm | C: 49.5 kN | C0: 61 kN | Limiting speed: 11000 r/min
02872/02820/Q d: 28.575 mm | D: 73.025 mm | T: 22.225 mm | C: 99 kN | C0: 140 kN | Limiting speed: 10000 r/min
L 45449/410/Q d: 29.000 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
M 86649/2/610/2/QVQ506 d: 30.162 mm | D: 64.292 mm | T: 21.433 mm | C: 49.5 kN | C0: 61 kN | Limiting speed: 11000 r/min
M 88043/010/2/QCL7C d: 30.162 mm | D: 68.262 mm | T: 22.225 mm | C: 55 kN | C0: 69.5 kN | Limiting speed: 11000 r/min
LM 67048/010/Q d: 31.750 mm | D: 59.131 mm | T: 15.875 mm | C: 34.7 kN | C0: 41.5 kN | Limiting speed: 12000 r/min
15123/15243/Q d: 31.750 mm | D: 61.912 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15123/15245/Q d: 31.750 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
HM 88542/510/Q d: 31.750 mm | D: 73.025 mm | T: 29.370 mm | C: 70.4 kN | C0: 95 kN | Limiting speed: 10000 r/min
HM 88542/2/510/2/QCL7C d: 31.750 mm | D: 73.025 mm | T: 29.370 mm | C: 70.4 kN | C0: 95 kN | Limiting speed: 10000 r/min
M 88048/2/010/2/QCL7C d: 33.338 mm | D: 68.262 mm | T: 22.225 mm | C: 55 kN | C0: 69.5 kN | Limiting speed: 11000 r/min
14131/14276/Q d: 33.338 mm | D: 69.012 mm | T: 19.845 mm | C: 53.9 kN | C0: 67 kN | Limiting speed: 11000 r/min
LM 48548/510/Q d: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 47.3 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 48548 A/510/Q d: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 47.3 kN | C0: 57 kN | Limiting speed: 11000 r/min
14137 A/14276/Q d: 34.925 mm | D: 69.012 mm | T: 19.845 mm | C: 53.9 kN | C0: 67 kN | Limiting speed: 11000 r/min
HM 88649/2/610/2/QCL7C d: 34.925 mm | D: 72.233 mm | T: 25.400 mm | C: 67.1 kN | C0: 90 kN | Limiting speed: 10000 r/min
25877/2/25821/2/Q d: 34.925 mm | D: 73.025 mm | T: 23.812 mm | C: 72.1 kN | C0: 88 kN | Limiting speed: 10000 r/min
23690/23620/QCL7C d: 34.925 mm | D: 73.025 mm | T: 26.988 mm | C: 76.5 kN | C0: 93 kN | Limiting speed: 10000 r/min
31594/31520/Q d: 34.925 mm | D: 76.200 mm | T: 29.370 mm | C: 85.8 kN | C0: 106 kN | Limiting speed: 10000 r/min
HM 89446/2/410/2/QCL7C d: 34.925 mm | D: 76.200 mm | T: 29.370 mm | C: 78.1 kN | C0: 106 kN | Limiting speed: 9500 r/min
L 68149/110/Q d: 34.988 mm | D: 59.131 mm | T: 15.875 mm | C: 33 kN | C0: 44 kN | Limiting speed: 12000 r/min
L 68149/111/Q d: 34.988 mm | D: 59.974 mm | T: 15.875 mm | C: 33 kN | C0: 44 kN | Limiting speed: 12000 r/min
25880/25820/Q d: 36.487 mm | D: 73.025 mm | T: 23.812 mm | C: 72.1 kN | C0: 88 kN | Limiting speed: 10000 r/min
HM 89449/2/410/2/QCL7C d: 36.512 mm | D: 76.200 mm | T: 29.370 mm | C: 78.1 kN | C0: 106 kN | Limiting speed: 9500 r/min
LM 29748/710/Q d: 38.100 mm | D: 65.088 mm | T: 18.034 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/710/Q d: 38.100 mm | D: 65.088 mm | T: 18.034 mm | C: 50 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/711/Q d: 38.100 mm | D: 65.088 mm | T: 19.812 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/711/QCL7CVA607 d: 38.100 mm | D: 65.088 mm | T: 19.812 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
16150/16284/Q d: 38.100 mm | D: 72.238 mm | T: 20.638 mm | C: 49.5 kN | C0: 60 kN | Limiting speed: 10000 r/min
16150/16283/Q d: 38.100 mm | D: 72.238 mm | T: 23.812 mm | C: 49.5 kN | C0: 60 kN | Limiting speed: 10000 r/min
2788/2720/QCL7C d: 38.100 mm | D: 76.200 mm | T: 23.812 mm | C: 74.8 kN | C0: 93 kN | Limiting speed: 10000 r/min
3490/3420/QCL7CVQ492 d: 38.100 mm | D: 79.375 mm | T: 29.370 mm | C: 91.3 kN | C0: 110 kN | Limiting speed: 9500 r/min
HM 801346/310/Q d: 38.100 mm | D: 82.550 mm | T: 29.370 mm | C: 85.8 kN | C0: 118 kN | Limiting speed: 8500 r/min
HM 801346 X/2/310/QVQ523 HM d: 38.100 mm | D: 82.550 mm | T: 29.370 mm | C: 85.8 kN | C0: 118 kN | Limiting speed: 8500 r/min
418/414/Q d: 38.100 mm | D: 88.500 mm | T: 26.988 mm | C: 101 kN | C0: 114 kN | Limiting speed: 9000 r/min
M 201047/011/Q d: 39.688 mm | D: 73.025 mm | T: 25.654 mm | C: 66 kN | C0: 86.5 kN | Limiting speed: 10000 r/min
LM 300849/811/Q d: 40.988 mm | D: 67.975 mm | T: 17.500 mm | C: 44 kN | C0: 58.5 kN | Limiting speed: 10000 r/min
18590/18520/Q d: 41.275 mm | D: 73.025 mm | T: 16.667 mm | C: 46.8 kN | C0: 56 kN | Limiting speed: 10000 r/min
LM 501349/310/Q d: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
LM 501349/2/310/2/QCL7C d: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
LM 501349/314/Q d: 41.275 mm | D: 73.431 mm | T: 21.430 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
11162/11300/Q d: 41.275 mm | D: 76.200 mm | T: 18.009 mm | C: 45.7 kN | C0: 56 kN | Limiting speed: 9500 r/min
11163/11300/Q d: 41.275 mm | D: 76.200 mm | T: 18.009 mm | C: 45.7 kN | C0: 56 kN | Limiting speed: 9500 r/min
24780/24720/Q d: 41.275 mm | D: 76.200 mm | T: 22.225 mm | C: 68.2 kN | C0: 86.5 kN | Limiting speed: 9500 r/min
M 802048/011/QCL7C d: 41.275 mm | D: 82.550 mm | T: 26.543 mm | C: 73.7 kN | C0: 91.5 kN | Limiting speed: 9000 r/min
3585/3525/Q d: 41.275 mm | D: 87.312 mm | T: 30.162 mm | C: 102 kN | C0: 132 kN | Limiting speed: 8500 r/min
HM 803146/110/Q d: 41.275 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 803146/2/110/2/QCL7C d: 41.275 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
526/522/Q d: 41.275 mm | D: 101.600 mm | T: 34.925 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7500 r/min
25577/2/25520/2/Q d: 42.875 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25577/2/25523/2/Q d: 42.875 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25520/Q d: 44.450 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25523/Q d: 44.450 mm | D: 82.931 mm | T: 26.988 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25522/Q d: 44.450 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
HM 803149/110/Q d: 44.450 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 803149/2/110/2/QCL7C d: 44.450 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 903249/2/210/2/Q d: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 101 kN | C0: 122 kN | Limiting speed: 7000 r/min
HM 903249/W/210/QCL7C d: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 101 kN | C0: 122 kN | Limiting speed: 7000 r/min
53178/53377/Q d: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 88 kN | C0: 96.5 kN | Limiting speed: 7000 r/min
HM 807040/010/QCL7C d: 44.450 mm | D: 104.775 mm | T: 36.512 mm | C: 145 kN | C0: 204 kN | Limiting speed: 6700 r/min
535/532 X d: 44.450 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
535/532 A d: 44.450 mm | D: 111.125 mm | T: 38.100 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
3586/3525/Q d: 45.237 mm | D: 87.313 mm | T: 30.162 mm | C: 102 kN | C0: 132 kN | Limiting speed: 8500 r/min
LM 102949/910/Q d: 45.242 mm | D: 73.431 mm | T: 19.558 mm | C: 53.9 kN | C0: 75 kN | Limiting speed: 9500 r/min
LM 603049/011/Q d: 45.242 mm | D: 77.788 mm | T: 19.842 mm | C: 53.9 kN | C0: 69.5 kN | Limiting speed: 9000 r/min
25590/25520/Q d: 45.618 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25590/25523/Q d: 45.618 mm | D: 82.931 mm | T: 26.988 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25590/25522/Q d: 45.618 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
18690/18620/Q d: 46.038 mm | D: 79.375 mm | T: 17.462 mm | C: 49.5 kN | C0: 62 kN | Limiting speed: 9000 r/min
359 S/354 X/Q d: 46.038 mm | D: 85.000 mm | T: 20.638 mm | C: 70.4 kN | C0: 81.5 kN | Limiting speed: 8500 r/min
369 S/2/362 A/2/Q d: 47.625 mm | D: 88.900 mm | T: 20.637 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
HM 804846/2/810/2/Q d: 47.625 mm | D: 95.250 mm | T: 30.162 mm | C: 108 kN | C0: 146 kN | Limiting speed: 7500 r/min
528 R/522 d: 47.625 mm | D: 101.600 mm | T: 34.925 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7500 r/min
65390/65320/QCL7C d: 49.212 mm | D: 114.300 mm | T: 44.450 mm | C: 183 kN | C0: 224 kN | Limiting speed: 6700 r/min
LM 104949/911Q d: 50.800 mm | D: 82.550 mm | T: 21.590 mm | C: 72.1 kN | C0: 100 kN | Limiting speed: 8500 r/min
18790/18720/Q d: 50.800 mm | D: 85.000 mm | T: 17.462 mm | C: 50.1 kN | C0: 65.5 kN | Limiting speed: 8500 r/min
368 A/362 A/Q d: 50.800 mm | D: 88.900 mm | T: 20.637 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
368 A/362 X/Q d: 50.800 mm | D: 90.000 mm | T: 25.000 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
3780/3720/Q d: 50.800 mm | D: 93.264 mm | T: 30.162 mm | C: 110 kN | C0: 146 kN | Limiting speed: 7500 r/min
28678/28622 B/Q d: 50.800 mm | D: 97.630 mm | T: 24.608 mm | C: 89.7 kN | C0: 129 kN | Limiting speed: 7000 r/min
HM 807046/010/QCL7C d: 50.800 mm | D: 104.775 mm | T: 36.512 mm | C: 145 kN | C0: 204 kN | Limiting speed: 6700 r/min
4580/2/4535/2/Q d: 50.800 mm | D: 104.775 mm | T: 39.688 mm | C: 157 kN | C0: 224 kN | Limiting speed: 7000 r/min
537/532 X/Q d: 50.800 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
LM 806649/610/Q d: 53.975 mm | D: 88.900 mm | T: 19.050 mm | C: 58.3 kN | C0: 78 kN | Limiting speed: 8000 r/min
33895/33821/Q d: 53.975 mm | D: 95.250 mm | T: 27.783 mm | C: 105 kN | C0: 137 kN | Limiting speed: 7500 r/min
33895/33822/Q d: 53.975 mm | D: 95.250 mm | T: 27.783 mm | C: 105 kN | C0: 137 kN | Limiting speed: 7500 r/min
539/532 X d: 53.975 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
539/532 A d: 53.975 mm | D: 111.125 mm | T: 38.100 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
72212/2/72487/2/Q d: 53.975 mm | D: 123.825 mm | T: 36.512 mm | C: 147 kN | C0: 180 kN | Limiting speed: 5600 r/min
387 A/382 A/Q d: 57.150 mm | D: 96.838 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387/382 A d: 57.150 mm | D: 96.838 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387 A/382 S/Q d: 57.150 mm | D: 96.838 mm | T: 25.400 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387 A/382/Q d: 57.150 mm | D: 98.425 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
462/453 X d: 57.150 mm | D: 104.775 mm | T: 30.162 mm | C: 121 kN | C0: 160 kN | Limiting speed: 7000 r/min
39580/39520/Q d: 57.150 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39581/39520/Q d: 57.150 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39580/39528/Q d: 57.150 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39581/39528/Q d: 57.150 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
HM 911245/W/2/210/2/QCL7C d: 60.325 mm | D: 130.175 mm | T: 36.512 mm | C: 151 kN | C0: 180 kN | Limiting speed: 5000 r/min
HM 911245/W/210/QV001 d: 60.325 mm | D: 130.175 mm | T: 36.512 mm | C: 151 kN | C0: 180 kN | Limiting speed: 5000 r/min
H 913842/810/QCL7C d: 61.912 mm | D: 146.050 mm | T: 41.275 mm | C: 198 kN | C0: 236 kN | Limiting speed: 4500 r/min
H 913843/810/QCL7C d: 61.912 mm | D: 146.050 mm | T: 41.275 mm | C: 198 kN | C0: 236 kN | Limiting speed: 4500 r/min
3982/3920 d: 63.500 mm | D: 112.712 mm | T: 30.162 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6300 r/min
6379/K-6320/Q d: 65.088 mm | D: 135.755 mm | T: 53.975 mm | C: 286 kN | C0: 400 kN | Limiting speed: 5600 r/min
3984/2/3920/2/Q d: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6000 r/min
39590/39520/Q d: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39590/39528/Q d: 66.675 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
6386/K-6320/Q d: 66.675 mm | D: 135.755 mm | T: 53.975 mm | C: 286 kN | C0: 400 kN | Limiting speed: 5600 r/min
29675/29620/3/Q d: 69.850 mm | D: 112.712 mm | T: 25.400 mm | C: 99 kN | C0: 156 kN | Limiting speed: 6000 r/min
482/472/Q d: 69.850 mm | D: 120.000 mm | T: 29.795 mm | C: 132 kN | C0: 186 kN | Limiting speed: 6000 r/min
47487/47420 d: 69.850 mm | D: 120.000 mm | T: 32.545 mm | C: 154 kN | C0: 228 kN | Limiting speed: 6000 r/min
47487/47420 A/Q d: 69.850 mm | D: 120.000 mm | T: 32.545 mm | C: 154 kN | C0: 228 kN | Limiting speed: 6000 r/min
566/563/Q d: 69.850 mm | D: 127.000 mm | T: 36.512 mm | C: 176 kN | C0: 255 kN | Limiting speed: 5600 r/min
33281/33462/Q d: 71.438 mm | D: 117.475 mm | T: 30.162 mm | C: 123 kN | C0: 190 kN | Limiting speed: 6000 r/min
H 414249/210/Q d: 71.438 mm | D: 136.525 mm | T: 41.275 mm | C: 224 kN | C0: 290 kN | Limiting speed: 5300 r/min
29685/2/29620/3/Q d: 73.025 mm | D: 112.712 mm | T: 25.400 mm | C: 99 kN | C0: 156 kN | Limiting speed: 6000 r/min
33287/33462/Q d: 73.025 mm | D: 117.475 mm | T: 30.162 mm | C: 123 kN | C0: 190 kN | Limiting speed: 6000 r/min
567/563 d: 73.025 mm | D: 127.000 mm | T: 36.512 mm | C: 176 kN | C0: 255 kN | Limiting speed: 5600 r/min
L 814749/710/QCL7C d: 76.200 mm | D: 109.538 mm | T: 19.050 mm | C: 58.3 kN | C0: 102 kN | Limiting speed: 6000 r/min
42687/42620 d: 76.200 mm | D: 127.000 mm | T: 30.162 mm | C: 138 kN | C0: 204 kN | Limiting speed: 5300 r/min
47678/47620/Q d: 76.200 mm | D: 133.350 mm | T: 33.338 mm | C: 165 kN | C0: 260 kN | Limiting speed: 5000 r/min
575/572/Q d: 76.200 mm | D: 139.992 mm | T: 36.512 mm | C: 187 kN | C0: 280 kN | Limiting speed: 5000 r/min
9285/9220/CL7C d: 76.200 mm | D: 161.925 mm | T: 49.212 mm | C: 260 kN | C0: 335 kN | Limiting speed: 4000 r/min
580/572/Q d: 82.550 mm | D: 139.992 mm | T: 36.512 mm | C: 187 kN | C0: 280 kN | Limiting speed: 5000 r/min
663/653/Q d: 82.550 mm | D: 146.050 mm | T: 41.275 mm | C: 220 kN | C0: 320 kN | Limiting speed: 4800 r/min
593/592 A/Q d: 88.900 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
598/592 A/Q d: 92.075 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
47896/47820/Q d: 95.250 mm | D: 146.050 mm | T: 33.338 mm | C: 168 kN | C0: 280 kN | Limiting speed: 4500 r/min
594/592 A/Q d: 95.250 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
594 A/592 A/Q d: 95.250 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
683/672 d: 95.250 mm | D: 168.275 mm | T: 41.275 mm | C: 233 kN | C0: 365 kN | Limiting speed: 4000 r/min
687/672 d: 101.600 mm | D: 168.275 mm | T: 41.275 mm | C: 233 kN | C0: 365 kN | Limiting speed: 4000 r/min
37425/2/37625/2/Q d: 107.950 mm | D: 158.750 mm | T: 23.020 mm | C: 101 kN | C0: 163 kN | Limiting speed: 4300 r/min
64450/64700 d: 114.300 mm | D: 177.800 mm | T: 41.275 mm | C: 251 kN | C0: 415 kN | Limiting speed: 3800 r/min
68450/68712 d: 114.300 mm | D: 180.975 mm | T: 34.925 mm | C: 183 kN | C0: 280 kN | Limiting speed: 3800 r/min
48290/48220/Q d: 127.000 mm | D: 182.562 mm | T: 39.688 mm | C: 229 kN | C0: 440 kN | Limiting speed: 3600 r/min
67388/67322 d: 127.000 mm | D: 196.850 mm | T: 46.038 mm | C: 319 kN | C0: 585 kN | Limiting speed: 3400 r/min
L 327249/210 d: 133.350 mm | D: 177.008 mm | T: 25.400 mm | C: 134 kN | C0: 280 kN | Limiting speed: 3600 r/min
67391/67322 d: 133.350 mm | D: 196.850 mm | T: 46.038 mm | C: 319 kN | C0: 585 kN | Limiting speed: 3400 r/min
HM 231132/110 d: 139.700 mm | D: 236.538 mm | T: 57.150 mm | C: 512 kN | C0: 850 kN | Limiting speed: 2800 r/min
HM 231148/110 d: 149.225 mm | D: 236.538 mm | T: 57.150 mm | C: 512 kN | C0: 850 kN | Limiting speed: 2800 r/min
M 231649/610/VQ051 d: 152.400 mm | D: 222.250 mm | T: 46.830 mm | C: 330 kN | C0: 630 kN | Limiting speed: 3000 r/min
L 432348/310 d: 158.750 mm | D: 205.583 mm | T: 23.812 mm | C: 138 kN | C0: 280 kN | Limiting speed: 3000 r/min
L 432349/310 d: 158.750 mm | D: 205.583 mm | T: 23.812 mm | C: 138 kN | C0: 280 kN | Limiting speed: 3000 r/min
36990/36920 d: 177.800 mm | D: 227.012 mm | T: 30.162 mm | C: 187 kN | C0: 425 kN | Limiting speed: 2800 r/min
M 336948/912 d: 178.595 mm | D: 265.112 mm | T: 51.595 mm | C: 495 kN | C0: 880 kN | Limiting speed: 2400 r/min
M 336949/912 d: 179.934 mm | D: 265.112 mm | T: 51.595 mm | C: 495 kN | C0: 880 kN | Limiting speed: 2400 r/min
87737/87111 d: 187.325 mm | D: 282.575 mm | T: 50.800 mm | C: 402 kN | C0: 695 kN | Limiting speed: 2200 r/min
M 239449/410 d: 190.475 mm | D: 279.400 mm | T: 52.388 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2200 r/min
87750/87111 d: 190.500 mm | D: 282.575 mm | T: 50.800 mm | C: 402 kN | C0: 695 kN | Limiting speed: 2200 r/min
M 239448 A/410 d: 191.237 mm | D: 279.400 mm | T: 52.388 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2200 r/min
LL 639249/210 d: 196.850 mm | D: 241.300 mm | T: 23.812 mm | C: 154 kN | C0: 315 kN | Limiting speed: 2600 r/min
LL 639249/2/210/4 d: 196.850 mm | D: 241.300 mm | T: 23.812 mm | C: 154 kN | C0: 315 kN | Limiting speed: 2600 r/min
LM 739749/710/VE174 d: 196.850 mm | D: 257.175 mm | T: 39.688 mm | C: 275 kN | C0: 655 kN | Limiting speed: 2400 r/min
LM 241147/110/QVQ051 d: 200.025 mm | D: 276.225 mm | T: 42.862 mm | C: 391 kN | C0: 780 kN | Limiting speed: 2200 r/min
LM 241148/110/QVQ051 d: 203.987 mm | D: 276.225 mm | T: 42.862 mm | C: 391 kN | C0: 780 kN | Limiting speed: 2200 r/min
67985/67920/HA3VQ117 d: 206.375 mm | D: 282.575 mm | T: 46.038 mm | C: 380 kN | C0: 830 kN | Limiting speed: 2200 r/min
LM 742747/710 d: 216.408 mm | D: 285.750 mm | T: 46.038 mm | C: 380 kN | C0: 850 kN | Limiting speed: 2200 r/min
LM 742747 A/710 d: 216.713 mm | D: 285.750 mm | T: 46.038 mm | C: 380 kN | C0: 850 kN | Limiting speed: 2200 r/min
LM 245846/810 d: 230.188 mm | D: 317.500 mm | T: 47.625 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2000 r/min
544091/2B/118 A/2B d: 231.775 mm | D: 300.038 mm | T: 33.338 mm | C: 216 kN | C0: 425 kN | Limiting speed: 2000 r/min
LM 245848/810 d: 231.775 mm | D: 317.500 mm | T: 47.625 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2000 r/min
M 349547/510 d: 255.600 mm | D: 342.900 mm | T: 57.150 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1800 r/min
M 349549/510/VE174 d: 257.175 mm | D: 342.900 mm | T: 57.150 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1800 r/min
M 249747/710 d: 257.175 mm | D: 358.775 mm | T: 71.438 mm | C: 842 kN | C0: 1760 kN | Limiting speed: 1700 r/min
38880/38820 d: 263.525 mm | D: 325.438 mm | T: 28.575 mm | C: 220 kN | C0: 550 kN | Limiting speed: 1800 r/min
L 555249/210 d: 292.100 mm | D: 374.650 mm | T: 47.625 mm | C: 501 kN | C0: 1140 kN | Limiting speed: 1600 r/min
L 555249/210/VE174 d: 292.100 mm | D: 374.650 mm | T: 47.625 mm | C: 501 kN | C0: 1140 kN | Limiting speed: 1600 r/min
L 357049/010/VE174 d: 304.800 mm | D: 393.700 mm | T: 50.800 mm | C: 528 kN | C0: 1220 kN | Limiting speed: 1500 r/min
LM 361649 A/610 d: 343.154 mm | D: 450.850 mm | T: 66.675 mm | C: 935 kN | C0: 2200 kN | Limiting speed: 1300 r/min
HM 262749/710 d: 346.075 mm | D: 488.950 mm | T: 95.250 mm | C: 1420 kN | C0: 3150 kN | Limiting speed: 1200 r/min
L 865547/512 d: 381.000 mm | D: 479.425 mm | T: 49.213 mm | C: 594 kN | C0: 1500 kN | Limiting speed: 1200 r/min
HM 266449/410 d: 384.175 mm | D: 546.100 mm | T: 104.775 mm | C: 1870 kN | C0: 4150 kN | Limiting speed: 1100 r/min
LL 566848/810/HA1 d: 403.225 mm | D: 460.375 mm | T: 28.575 mm | C: 246 kN | C0: 765 kN | Limiting speed: 1200 r/min
LM 567949/910/HA1 d: 406.400 mm | D: 549.275 mm | T: 85.725 mm | C: 1380 kN | C0: 3050 kN | Limiting speed: 1000 r/min
LM 770949/910 d: 457.200 mm | D: 603.250 mm | T: 85.725 mm | C: 1450 kN | C0: 3400 kN | Limiting speed: 950 r/min
LM 772748/710/HA1 d: 488.950 mm | D: 634.873 mm | T: 84.138 mm | C: 1450 kN | C0: 3650 kN | Limiting speed: 850 r/min
EE 243196/250/HA2 d: 498.475 mm | D: 634.873 mm | T: 80.962 mm | C: 1470 kN | C0: 3650 kN | Limiting speed: 850 r/min
EE 843220/290 d: 558.800 mm | D: 736.600 mm | T: 88.108 mm | C: 1830 kN | C0: 4150 kN | Limiting speed: 750 r/min
LM 377449/410 d: 558.800 mm | D: 736.600 mm | T: 104.775 mm | C: 2330 kN | C0: 5700 kN | Limiting speed: 750 r/min
EE 649240/310 d: 609.600 mm | D: 787.400 mm | T: 93.662 mm | C: 2160 kN | C0: 5300 kN | Limiting speed: 670 r/min
LM 283649/610/HA1 d: 749.300 mm | D: 990.600 mm | T: 159.500 mm | C: 4570 kN | C0: 12000 kN | Limiting speed: 500 r/min
LL 483448/418 d: 760.000 mm | D: 889.000 mm | T: 69.850 mm | C: 1230 kN | C0: 3800 kN | Limiting speed: 560 r/min
L 183448/410 d: 760.000 mm | D: 889.000 mm | T: 88.900 mm | C: 1870 kN | C0: 5850 kN | Limiting speed: 530 r/min
LL 483449/418 d: 762.000 mm | D: 889.000 mm | T: 69.850 mm | C: 1230 kN | C0: 3800 kN | Limiting speed: 560 r/min
L 183449/410 d: 762.000 mm | D: 889.000 mm | T: 88.900 mm | C: 1870 kN | C0: 5850 kN | Limiting speed: 530 r/min
EE 763330/410 d: 838.200 mm | D: 1041.400 mm | T: 93.662 mm | C: 1900 kN | C0: 4800 kN | Limiting speed: 460 r/min
Tapered Roller BearingsSKF
211 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Inch Single Row Tapered Roller Bearings (Cone/Cup Sets)

Brand SKF·Tapered Roller Bearings

Available part numbers (211)

A 4059/A 4138, 03062/03162/Q, 11590/11520/Q, LM 11749/710/Q, LM 11749/710/QVC027, LM 11949/910/Q, 09067/09195/Q, 09074/09195/QVQ494, LM 12748/710, M 12649/610/Q + 201 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A 4059/A 4138d: 14.989 mm | D: 34.988 mm | T: 10.998 mm | C: 13.4 kN | C0: 13.2 kN | Limiting speed: 24000 r/min
03062/03162/Qd: 15.875 mm | D: 41.275 mm | T: 14.288 mm | C: 22 kN | C0: 21.2 kN | Limiting speed: 20000 r/min
11590/11520/Qd: 15.875 mm | D: 42.862 mm | T: 14.288 mm | C: 17.6 kN | C0: 17.6 kN | Limiting speed: 17000 r/min
LM 11749/710/Qd: 17.462 mm | D: 39.878 mm | T: 13.843 mm | C: 21.2 kN | C0: 20.8 kN | Limiting speed: 20000 r/min
LM 11749/710/QVC027d: 17.462 mm | D: 39.878 mm | T: 13.843 mm | C: 21.2 kN | C0: 20.8 kN | Limiting speed: 20000 r/min
LM 11949/910/Qd: 19.050 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 27.5 kN | Limiting speed: 18000 r/min
09067/09195/Qd: 19.050 mm | D: 49.225 mm | T: 18.034 mm | C: 39.1 kN | C0: 40 kN | Limiting speed: 17000 r/min
09074/09195/QVQ494d: 19.050 mm | D: 49.225 mm | T: 19.845 mm | C: 39.1 kN | C0: 40 kN | Limiting speed: 17000 r/min
LM 12748/710d: 21.430 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
M 12649/610/Qd: 21.430 mm | D: 50.005 mm | T: 17.526 mm | C: 36.9 kN | C0: 38 kN | Limiting speed: 16000 r/min
LM 12749/710/Qd: 21.986 mm | D: 45.237 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
LM 12749/711/Qd: 21.986 mm | D: 45.974 mm | T: 15.494 mm | C: 27.5 kN | C0: 31 kN | Limiting speed: 17000 r/min
1380/1328/Qd: 22.225 mm | D: 52.388 mm | T: 19.368 mm | C: 41.8 kN | C0: 44 kN | Limiting speed: 15000 r/min
L 44643/610/Qd: 25.400 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 30 kN | Limiting speed: 15000 r/min
07100 S/07210 X/Qd: 25.400 mm | D: 50.800 mm | T: 15.011 mm | C: 28.1 kN | C0: 30.5 kN | Limiting speed: 15000 r/min
15578/15520d: 25.400 mm | D: 57.150 mm | T: 17.462 mm | C: 40.2 kN | C0: 45.5 kN | Limiting speed: 13000 r/min
M 84548/2/510/2/QVQ506d: 25.400 mm | D: 57.150 mm | T: 19.431 mm | C: 39.6 kN | C0: 45 kN | Limiting speed: 13000 r/min
15101/15245d: 25.400 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15103 S/15243/Qd: 26.157 mm | D: 61.912 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15103 S/15245/Qd: 26.157 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
L 44649/610/Qd: 26.988 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 30 kN | Limiting speed: 15000 r/min
1982 F/1924 A/QVQ519d: 27.500 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
1985/1922/Qd: 28.575 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
1988/1922/Qd: 28.575 mm | D: 57.150 mm | T: 19.845 mm | C: 45.7 kN | C0: 51 kN | Limiting speed: 13000 r/min
M 86647/610/QCL7Cd: 28.575 mm | D: 64.292 mm | T: 21.433 mm | C: 49.5 kN | C0: 61 kN | Limiting speed: 11000 r/min
02872/02820/Qd: 28.575 mm | D: 73.025 mm | T: 22.225 mm | C: 99 kN | C0: 140 kN | Limiting speed: 10000 r/min
L 45449/410/Qd: 29.000 mm | D: 50.292 mm | T: 14.224 mm | C: 26 kN | C0: 32.5 kN | Limiting speed: 14000 r/min
M 86649/2/610/2/QVQ506d: 30.162 mm | D: 64.292 mm | T: 21.433 mm | C: 49.5 kN | C0: 61 kN | Limiting speed: 11000 r/min
M 88043/010/2/QCL7Cd: 30.162 mm | D: 68.262 mm | T: 22.225 mm | C: 55 kN | C0: 69.5 kN | Limiting speed: 11000 r/min
LM 67048/010/Qd: 31.750 mm | D: 59.131 mm | T: 15.875 mm | C: 34.7 kN | C0: 41.5 kN | Limiting speed: 12000 r/min
15123/15243/Qd: 31.750 mm | D: 61.912 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
15123/15245/Qd: 31.750 mm | D: 62.000 mm | T: 19.050 mm | C: 48.4 kN | C0: 57 kN | Limiting speed: 12000 r/min
HM 88542/510/Qd: 31.750 mm | D: 73.025 mm | T: 29.370 mm | C: 70.4 kN | C0: 95 kN | Limiting speed: 10000 r/min
HM 88542/2/510/2/QCL7Cd: 31.750 mm | D: 73.025 mm | T: 29.370 mm | C: 70.4 kN | C0: 95 kN | Limiting speed: 10000 r/min
M 88048/2/010/2/QCL7Cd: 33.338 mm | D: 68.262 mm | T: 22.225 mm | C: 55 kN | C0: 69.5 kN | Limiting speed: 11000 r/min
14131/14276/Qd: 33.338 mm | D: 69.012 mm | T: 19.845 mm | C: 53.9 kN | C0: 67 kN | Limiting speed: 11000 r/min
LM 48548/510/Qd: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 47.3 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 48548 A/510/Qd: 34.925 mm | D: 65.088 mm | T: 18.034 mm | C: 47.3 kN | C0: 57 kN | Limiting speed: 11000 r/min
14137 A/14276/Qd: 34.925 mm | D: 69.012 mm | T: 19.845 mm | C: 53.9 kN | C0: 67 kN | Limiting speed: 11000 r/min
HM 88649/2/610/2/QCL7Cd: 34.925 mm | D: 72.233 mm | T: 25.400 mm | C: 67.1 kN | C0: 90 kN | Limiting speed: 10000 r/min
25877/2/25821/2/Qd: 34.925 mm | D: 73.025 mm | T: 23.812 mm | C: 72.1 kN | C0: 88 kN | Limiting speed: 10000 r/min
23690/23620/QCL7Cd: 34.925 mm | D: 73.025 mm | T: 26.988 mm | C: 76.5 kN | C0: 93 kN | Limiting speed: 10000 r/min
31594/31520/Qd: 34.925 mm | D: 76.200 mm | T: 29.370 mm | C: 85.8 kN | C0: 106 kN | Limiting speed: 10000 r/min
HM 89446/2/410/2/QCL7Cd: 34.925 mm | D: 76.200 mm | T: 29.370 mm | C: 78.1 kN | C0: 106 kN | Limiting speed: 9500 r/min
L 68149/110/Qd: 34.988 mm | D: 59.131 mm | T: 15.875 mm | C: 33 kN | C0: 44 kN | Limiting speed: 12000 r/min
L 68149/111/Qd: 34.988 mm | D: 59.974 mm | T: 15.875 mm | C: 33 kN | C0: 44 kN | Limiting speed: 12000 r/min
25880/25820/Qd: 36.487 mm | D: 73.025 mm | T: 23.812 mm | C: 72.1 kN | C0: 88 kN | Limiting speed: 10000 r/min
HM 89449/2/410/2/QCL7Cd: 36.512 mm | D: 76.200 mm | T: 29.370 mm | C: 78.1 kN | C0: 106 kN | Limiting speed: 9500 r/min
LM 29748/710/Qd: 38.100 mm | D: 65.088 mm | T: 18.034 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/710/Qd: 38.100 mm | D: 65.088 mm | T: 18.034 mm | C: 50 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/711/Qd: 38.100 mm | D: 65.088 mm | T: 19.812 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
LM 29749/711/QCL7CVA607d: 38.100 mm | D: 65.088 mm | T: 19.812 mm | C: 42.9 kN | C0: 57 kN | Limiting speed: 11000 r/min
16150/16284/Qd: 38.100 mm | D: 72.238 mm | T: 20.638 mm | C: 49.5 kN | C0: 60 kN | Limiting speed: 10000 r/min
16150/16283/Qd: 38.100 mm | D: 72.238 mm | T: 23.812 mm | C: 49.5 kN | C0: 60 kN | Limiting speed: 10000 r/min
2788/2720/QCL7Cd: 38.100 mm | D: 76.200 mm | T: 23.812 mm | C: 74.8 kN | C0: 93 kN | Limiting speed: 10000 r/min
3490/3420/QCL7CVQ492d: 38.100 mm | D: 79.375 mm | T: 29.370 mm | C: 91.3 kN | C0: 110 kN | Limiting speed: 9500 r/min
HM 801346/310/Qd: 38.100 mm | D: 82.550 mm | T: 29.370 mm | C: 85.8 kN | C0: 118 kN | Limiting speed: 8500 r/min
HM 801346 X/2/310/QVQ523 HMd: 38.100 mm | D: 82.550 mm | T: 29.370 mm | C: 85.8 kN | C0: 118 kN | Limiting speed: 8500 r/min
418/414/Qd: 38.100 mm | D: 88.500 mm | T: 26.988 mm | C: 101 kN | C0: 114 kN | Limiting speed: 9000 r/min
M 201047/011/Qd: 39.688 mm | D: 73.025 mm | T: 25.654 mm | C: 66 kN | C0: 86.5 kN | Limiting speed: 10000 r/min
LM 300849/811/Qd: 40.988 mm | D: 67.975 mm | T: 17.500 mm | C: 44 kN | C0: 58.5 kN | Limiting speed: 10000 r/min
18590/18520/Qd: 41.275 mm | D: 73.025 mm | T: 16.667 mm | C: 46.8 kN | C0: 56 kN | Limiting speed: 10000 r/min
LM 501349/310/Qd: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
LM 501349/2/310/2/QCL7Cd: 41.275 mm | D: 73.431 mm | T: 19.558 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
LM 501349/314/Qd: 41.275 mm | D: 73.431 mm | T: 21.430 mm | C: 55 kN | C0: 68 kN | Limiting speed: 10000 r/min
11162/11300/Qd: 41.275 mm | D: 76.200 mm | T: 18.009 mm | C: 45.7 kN | C0: 56 kN | Limiting speed: 9500 r/min
11163/11300/Qd: 41.275 mm | D: 76.200 mm | T: 18.009 mm | C: 45.7 kN | C0: 56 kN | Limiting speed: 9500 r/min
24780/24720/Qd: 41.275 mm | D: 76.200 mm | T: 22.225 mm | C: 68.2 kN | C0: 86.5 kN | Limiting speed: 9500 r/min
M 802048/011/QCL7Cd: 41.275 mm | D: 82.550 mm | T: 26.543 mm | C: 73.7 kN | C0: 91.5 kN | Limiting speed: 9000 r/min
3585/3525/Qd: 41.275 mm | D: 87.312 mm | T: 30.162 mm | C: 102 kN | C0: 132 kN | Limiting speed: 8500 r/min
HM 803146/110/Qd: 41.275 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 803146/2/110/2/QCL7Cd: 41.275 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
526/522/Qd: 41.275 mm | D: 101.600 mm | T: 34.925 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7500 r/min
25577/2/25520/2/Qd: 42.875 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25577/2/25523/2/Qd: 42.875 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25520/Qd: 44.450 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25523/Qd: 44.450 mm | D: 82.931 mm | T: 26.988 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25580/25522/Qd: 44.450 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
HM 803149/110/Qd: 44.450 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 803149/2/110/2/QCL7Cd: 44.450 mm | D: 88.900 mm | T: 30.162 mm | C: 95.2 kN | C0: 127 kN | Limiting speed: 8000 r/min
HM 903249/2/210/2/Qd: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 101 kN | C0: 122 kN | Limiting speed: 7000 r/min
HM 903249/W/210/QCL7Cd: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 101 kN | C0: 122 kN | Limiting speed: 7000 r/min
53178/53377/Qd: 44.450 mm | D: 95.250 mm | T: 30.958 mm | C: 88 kN | C0: 96.5 kN | Limiting speed: 7000 r/min
HM 807040/010/QCL7Cd: 44.450 mm | D: 104.775 mm | T: 36.512 mm | C: 145 kN | C0: 204 kN | Limiting speed: 6700 r/min
535/532 Xd: 44.450 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
535/532 Ad: 44.450 mm | D: 111.125 mm | T: 38.100 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
3586/3525/Qd: 45.237 mm | D: 87.313 mm | T: 30.162 mm | C: 102 kN | C0: 132 kN | Limiting speed: 8500 r/min
LM 102949/910/Qd: 45.242 mm | D: 73.431 mm | T: 19.558 mm | C: 53.9 kN | C0: 75 kN | Limiting speed: 9500 r/min
LM 603049/011/Qd: 45.242 mm | D: 77.788 mm | T: 19.842 mm | C: 53.9 kN | C0: 69.5 kN | Limiting speed: 9000 r/min
25590/25520/Qd: 45.618 mm | D: 82.931 mm | T: 23.812 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25590/25523/Qd: 45.618 mm | D: 82.931 mm | T: 26.988 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
25590/25522/Qd: 45.618 mm | D: 83.058 mm | T: 23.876 mm | C: 80.9 kN | C0: 106 kN | Limiting speed: 9000 r/min
18690/18620/Qd: 46.038 mm | D: 79.375 mm | T: 17.462 mm | C: 49.5 kN | C0: 62 kN | Limiting speed: 9000 r/min
359 S/354 X/Qd: 46.038 mm | D: 85.000 mm | T: 20.638 mm | C: 70.4 kN | C0: 81.5 kN | Limiting speed: 8500 r/min
369 S/2/362 A/2/Qd: 47.625 mm | D: 88.900 mm | T: 20.637 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
HM 804846/2/810/2/Qd: 47.625 mm | D: 95.250 mm | T: 30.162 mm | C: 108 kN | C0: 146 kN | Limiting speed: 7500 r/min
528 R/522d: 47.625 mm | D: 101.600 mm | T: 34.925 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7500 r/min
65390/65320/QCL7Cd: 49.212 mm | D: 114.300 mm | T: 44.450 mm | C: 183 kN | C0: 224 kN | Limiting speed: 6700 r/min
LM 104949/911Qd: 50.800 mm | D: 82.550 mm | T: 21.590 mm | C: 72.1 kN | C0: 100 kN | Limiting speed: 8500 r/min
18790/18720/Qd: 50.800 mm | D: 85.000 mm | T: 17.462 mm | C: 50.1 kN | C0: 65.5 kN | Limiting speed: 8500 r/min
368 A/362 A/Qd: 50.800 mm | D: 88.900 mm | T: 20.637 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
368 A/362 X/Qd: 50.800 mm | D: 90.000 mm | T: 25.000 mm | C: 76.5 kN | C0: 91.5 kN | Limiting speed: 8000 r/min
3780/3720/Qd: 50.800 mm | D: 93.264 mm | T: 30.162 mm | C: 110 kN | C0: 146 kN | Limiting speed: 7500 r/min
28678/28622 B/Qd: 50.800 mm | D: 97.630 mm | T: 24.608 mm | C: 89.7 kN | C0: 129 kN | Limiting speed: 7000 r/min
HM 807046/010/QCL7Cd: 50.800 mm | D: 104.775 mm | T: 36.512 mm | C: 145 kN | C0: 204 kN | Limiting speed: 6700 r/min
4580/2/4535/2/Qd: 50.800 mm | D: 104.775 mm | T: 39.688 mm | C: 157 kN | C0: 224 kN | Limiting speed: 7000 r/min
537/532 X/Qd: 50.800 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
LM 806649/610/Qd: 53.975 mm | D: 88.900 mm | T: 19.050 mm | C: 58.3 kN | C0: 78 kN | Limiting speed: 8000 r/min
33895/33821/Qd: 53.975 mm | D: 95.250 mm | T: 27.783 mm | C: 105 kN | C0: 137 kN | Limiting speed: 7500 r/min
33895/33822/Qd: 53.975 mm | D: 95.250 mm | T: 27.783 mm | C: 105 kN | C0: 137 kN | Limiting speed: 7500 r/min
539/532 Xd: 53.975 mm | D: 107.950 mm | T: 36.512 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
539/532 Ad: 53.975 mm | D: 111.125 mm | T: 38.100 mm | C: 151 kN | C0: 190 kN | Limiting speed: 7000 r/min
72212/2/72487/2/Qd: 53.975 mm | D: 123.825 mm | T: 36.512 mm | C: 147 kN | C0: 180 kN | Limiting speed: 5600 r/min
387 A/382 A/Qd: 57.150 mm | D: 96.838 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387/382 Ad: 57.150 mm | D: 96.838 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387 A/382 S/Qd: 57.150 mm | D: 96.838 mm | T: 25.400 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
387 A/382/Qd: 57.150 mm | D: 98.425 mm | T: 21.000 mm | C: 80.9 kN | C0: 102 kN | Limiting speed: 7500 r/min
462/453 Xd: 57.150 mm | D: 104.775 mm | T: 30.162 mm | C: 121 kN | C0: 160 kN | Limiting speed: 7000 r/min
39580/39520/Qd: 57.150 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39581/39520/Qd: 57.150 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39580/39528/Qd: 57.150 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39581/39528/Qd: 57.150 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
HM 911245/W/2/210/2/QCL7Cd: 60.325 mm | D: 130.175 mm | T: 36.512 mm | C: 151 kN | C0: 180 kN | Limiting speed: 5000 r/min
HM 911245/W/210/QV001d: 60.325 mm | D: 130.175 mm | T: 36.512 mm | C: 151 kN | C0: 180 kN | Limiting speed: 5000 r/min
H 913842/810/QCL7Cd: 61.912 mm | D: 146.050 mm | T: 41.275 mm | C: 198 kN | C0: 236 kN | Limiting speed: 4500 r/min
H 913843/810/QCL7Cd: 61.912 mm | D: 146.050 mm | T: 41.275 mm | C: 198 kN | C0: 236 kN | Limiting speed: 4500 r/min
3982/3920d: 63.500 mm | D: 112.712 mm | T: 30.162 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6300 r/min
6379/K-6320/Qd: 65.088 mm | D: 135.755 mm | T: 53.975 mm | C: 286 kN | C0: 400 kN | Limiting speed: 5600 r/min
3984/2/3920/2/Qd: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 123 kN | C0: 183 kN | Limiting speed: 6000 r/min
39590/39520/Qd: 66.675 mm | D: 112.712 mm | T: 30.162 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
39590/39528/Qd: 66.675 mm | D: 119.985 mm | T: 32.750 mm | C: 142 kN | C0: 204 kN | Limiting speed: 6300 r/min
6386/K-6320/Qd: 66.675 mm | D: 135.755 mm | T: 53.975 mm | C: 286 kN | C0: 400 kN | Limiting speed: 5600 r/min
29675/29620/3/Qd: 69.850 mm | D: 112.712 mm | T: 25.400 mm | C: 99 kN | C0: 156 kN | Limiting speed: 6000 r/min
482/472/Qd: 69.850 mm | D: 120.000 mm | T: 29.795 mm | C: 132 kN | C0: 186 kN | Limiting speed: 6000 r/min
47487/47420d: 69.850 mm | D: 120.000 mm | T: 32.545 mm | C: 154 kN | C0: 228 kN | Limiting speed: 6000 r/min
47487/47420 A/Qd: 69.850 mm | D: 120.000 mm | T: 32.545 mm | C: 154 kN | C0: 228 kN | Limiting speed: 6000 r/min
566/563/Qd: 69.850 mm | D: 127.000 mm | T: 36.512 mm | C: 176 kN | C0: 255 kN | Limiting speed: 5600 r/min
33281/33462/Qd: 71.438 mm | D: 117.475 mm | T: 30.162 mm | C: 123 kN | C0: 190 kN | Limiting speed: 6000 r/min
H 414249/210/Qd: 71.438 mm | D: 136.525 mm | T: 41.275 mm | C: 224 kN | C0: 290 kN | Limiting speed: 5300 r/min
29685/2/29620/3/Qd: 73.025 mm | D: 112.712 mm | T: 25.400 mm | C: 99 kN | C0: 156 kN | Limiting speed: 6000 r/min
33287/33462/Qd: 73.025 mm | D: 117.475 mm | T: 30.162 mm | C: 123 kN | C0: 190 kN | Limiting speed: 6000 r/min
567/563d: 73.025 mm | D: 127.000 mm | T: 36.512 mm | C: 176 kN | C0: 255 kN | Limiting speed: 5600 r/min
L 814749/710/QCL7Cd: 76.200 mm | D: 109.538 mm | T: 19.050 mm | C: 58.3 kN | C0: 102 kN | Limiting speed: 6000 r/min
42687/42620d: 76.200 mm | D: 127.000 mm | T: 30.162 mm | C: 138 kN | C0: 204 kN | Limiting speed: 5300 r/min
47678/47620/Qd: 76.200 mm | D: 133.350 mm | T: 33.338 mm | C: 165 kN | C0: 260 kN | Limiting speed: 5000 r/min
575/572/Qd: 76.200 mm | D: 139.992 mm | T: 36.512 mm | C: 187 kN | C0: 280 kN | Limiting speed: 5000 r/min
9285/9220/CL7Cd: 76.200 mm | D: 161.925 mm | T: 49.212 mm | C: 260 kN | C0: 335 kN | Limiting speed: 4000 r/min
580/572/Qd: 82.550 mm | D: 139.992 mm | T: 36.512 mm | C: 187 kN | C0: 280 kN | Limiting speed: 5000 r/min
663/653/Qd: 82.550 mm | D: 146.050 mm | T: 41.275 mm | C: 220 kN | C0: 320 kN | Limiting speed: 4800 r/min
593/592 A/Qd: 88.900 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
598/592 A/Qd: 92.075 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
47896/47820/Qd: 95.250 mm | D: 146.050 mm | T: 33.338 mm | C: 168 kN | C0: 280 kN | Limiting speed: 4500 r/min
594/592 A/Qd: 95.250 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
594 A/592 A/Qd: 95.250 mm | D: 152.400 mm | T: 39.688 mm | C: 194 kN | C0: 305 kN | Limiting speed: 4500 r/min
683/672d: 95.250 mm | D: 168.275 mm | T: 41.275 mm | C: 233 kN | C0: 365 kN | Limiting speed: 4000 r/min
687/672d: 101.600 mm | D: 168.275 mm | T: 41.275 mm | C: 233 kN | C0: 365 kN | Limiting speed: 4000 r/min
37425/2/37625/2/Qd: 107.950 mm | D: 158.750 mm | T: 23.020 mm | C: 101 kN | C0: 163 kN | Limiting speed: 4300 r/min
64450/64700d: 114.300 mm | D: 177.800 mm | T: 41.275 mm | C: 251 kN | C0: 415 kN | Limiting speed: 3800 r/min
68450/68712d: 114.300 mm | D: 180.975 mm | T: 34.925 mm | C: 183 kN | C0: 280 kN | Limiting speed: 3800 r/min
48290/48220/Qd: 127.000 mm | D: 182.562 mm | T: 39.688 mm | C: 229 kN | C0: 440 kN | Limiting speed: 3600 r/min
67388/67322d: 127.000 mm | D: 196.850 mm | T: 46.038 mm | C: 319 kN | C0: 585 kN | Limiting speed: 3400 r/min
L 327249/210d: 133.350 mm | D: 177.008 mm | T: 25.400 mm | C: 134 kN | C0: 280 kN | Limiting speed: 3600 r/min
67391/67322d: 133.350 mm | D: 196.850 mm | T: 46.038 mm | C: 319 kN | C0: 585 kN | Limiting speed: 3400 r/min
HM 231132/110d: 139.700 mm | D: 236.538 mm | T: 57.150 mm | C: 512 kN | C0: 850 kN | Limiting speed: 2800 r/min
HM 231148/110d: 149.225 mm | D: 236.538 mm | T: 57.150 mm | C: 512 kN | C0: 850 kN | Limiting speed: 2800 r/min
M 231649/610/VQ051d: 152.400 mm | D: 222.250 mm | T: 46.830 mm | C: 330 kN | C0: 630 kN | Limiting speed: 3000 r/min
L 432348/310d: 158.750 mm | D: 205.583 mm | T: 23.812 mm | C: 138 kN | C0: 280 kN | Limiting speed: 3000 r/min
L 432349/310d: 158.750 mm | D: 205.583 mm | T: 23.812 mm | C: 138 kN | C0: 280 kN | Limiting speed: 3000 r/min
36990/36920d: 177.800 mm | D: 227.012 mm | T: 30.162 mm | C: 187 kN | C0: 425 kN | Limiting speed: 2800 r/min
M 336948/912d: 178.595 mm | D: 265.112 mm | T: 51.595 mm | C: 495 kN | C0: 880 kN | Limiting speed: 2400 r/min
M 336949/912d: 179.934 mm | D: 265.112 mm | T: 51.595 mm | C: 495 kN | C0: 880 kN | Limiting speed: 2400 r/min
87737/87111d: 187.325 mm | D: 282.575 mm | T: 50.800 mm | C: 402 kN | C0: 695 kN | Limiting speed: 2200 r/min
M 239449/410d: 190.475 mm | D: 279.400 mm | T: 52.388 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2200 r/min
87750/87111d: 190.500 mm | D: 282.575 mm | T: 50.800 mm | C: 402 kN | C0: 695 kN | Limiting speed: 2200 r/min
M 239448 A/410d: 191.237 mm | D: 279.400 mm | T: 52.388 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2200 r/min
LL 639249/210d: 196.850 mm | D: 241.300 mm | T: 23.812 mm | C: 154 kN | C0: 315 kN | Limiting speed: 2600 r/min
LL 639249/2/210/4d: 196.850 mm | D: 241.300 mm | T: 23.812 mm | C: 154 kN | C0: 315 kN | Limiting speed: 2600 r/min
LM 739749/710/VE174d: 196.850 mm | D: 257.175 mm | T: 39.688 mm | C: 275 kN | C0: 655 kN | Limiting speed: 2400 r/min
LM 241147/110/QVQ051d: 200.025 mm | D: 276.225 mm | T: 42.862 mm | C: 391 kN | C0: 780 kN | Limiting speed: 2200 r/min
LM 241148/110/QVQ051d: 203.987 mm | D: 276.225 mm | T: 42.862 mm | C: 391 kN | C0: 780 kN | Limiting speed: 2200 r/min
67985/67920/HA3VQ117d: 206.375 mm | D: 282.575 mm | T: 46.038 mm | C: 380 kN | C0: 830 kN | Limiting speed: 2200 r/min
LM 742747/710d: 216.408 mm | D: 285.750 mm | T: 46.038 mm | C: 380 kN | C0: 850 kN | Limiting speed: 2200 r/min
LM 742747 A/710d: 216.713 mm | D: 285.750 mm | T: 46.038 mm | C: 380 kN | C0: 850 kN | Limiting speed: 2200 r/min
LM 245846/810d: 230.188 mm | D: 317.500 mm | T: 47.625 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2000 r/min
544091/2B/118 A/2Bd: 231.775 mm | D: 300.038 mm | T: 33.338 mm | C: 216 kN | C0: 425 kN | Limiting speed: 2000 r/min
LM 245848/810d: 231.775 mm | D: 317.500 mm | T: 47.625 mm | C: 523 kN | C0: 980 kN | Limiting speed: 2000 r/min
M 349547/510d: 255.600 mm | D: 342.900 mm | T: 57.150 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1800 r/min
M 349549/510/VE174d: 257.175 mm | D: 342.900 mm | T: 57.150 mm | C: 594 kN | C0: 1220 kN | Limiting speed: 1800 r/min
M 249747/710d: 257.175 mm | D: 358.775 mm | T: 71.438 mm | C: 842 kN | C0: 1760 kN | Limiting speed: 1700 r/min
38880/38820d: 263.525 mm | D: 325.438 mm | T: 28.575 mm | C: 220 kN | C0: 550 kN | Limiting speed: 1800 r/min
L 555249/210d: 292.100 mm | D: 374.650 mm | T: 47.625 mm | C: 501 kN | C0: 1140 kN | Limiting speed: 1600 r/min
L 555249/210/VE174d: 292.100 mm | D: 374.650 mm | T: 47.625 mm | C: 501 kN | C0: 1140 kN | Limiting speed: 1600 r/min
L 357049/010/VE174d: 304.800 mm | D: 393.700 mm | T: 50.800 mm | C: 528 kN | C0: 1220 kN | Limiting speed: 1500 r/min
LM 361649 A/610d: 343.154 mm | D: 450.850 mm | T: 66.675 mm | C: 935 kN | C0: 2200 kN | Limiting speed: 1300 r/min
HM 262749/710d: 346.075 mm | D: 488.950 mm | T: 95.250 mm | C: 1420 kN | C0: 3150 kN | Limiting speed: 1200 r/min
L 865547/512d: 381.000 mm | D: 479.425 mm | T: 49.213 mm | C: 594 kN | C0: 1500 kN | Limiting speed: 1200 r/min
HM 266449/410d: 384.175 mm | D: 546.100 mm | T: 104.775 mm | C: 1870 kN | C0: 4150 kN | Limiting speed: 1100 r/min
LL 566848/810/HA1d: 403.225 mm | D: 460.375 mm | T: 28.575 mm | C: 246 kN | C0: 765 kN | Limiting speed: 1200 r/min
LM 567949/910/HA1d: 406.400 mm | D: 549.275 mm | T: 85.725 mm | C: 1380 kN | C0: 3050 kN | Limiting speed: 1000 r/min
LM 770949/910d: 457.200 mm | D: 603.250 mm | T: 85.725 mm | C: 1450 kN | C0: 3400 kN | Limiting speed: 950 r/min
LM 772748/710/HA1d: 488.950 mm | D: 634.873 mm | T: 84.138 mm | C: 1450 kN | C0: 3650 kN | Limiting speed: 850 r/min
EE 243196/250/HA2d: 498.475 mm | D: 634.873 mm | T: 80.962 mm | C: 1470 kN | C0: 3650 kN | Limiting speed: 850 r/min
EE 843220/290d: 558.800 mm | D: 736.600 mm | T: 88.108 mm | C: 1830 kN | C0: 4150 kN | Limiting speed: 750 r/min
LM 377449/410d: 558.800 mm | D: 736.600 mm | T: 104.775 mm | C: 2330 kN | C0: 5700 kN | Limiting speed: 750 r/min
EE 649240/310d: 609.600 mm | D: 787.400 mm | T: 93.662 mm | C: 2160 kN | C0: 5300 kN | Limiting speed: 670 r/min
LM 283649/610/HA1d: 749.300 mm | D: 990.600 mm | T: 159.500 mm | C: 4570 kN | C0: 12000 kN | Limiting speed: 500 r/min
LL 483448/418d: 760.000 mm | D: 889.000 mm | T: 69.850 mm | C: 1230 kN | C0: 3800 kN | Limiting speed: 560 r/min
L 183448/410d: 760.000 mm | D: 889.000 mm | T: 88.900 mm | C: 1870 kN | C0: 5850 kN | Limiting speed: 530 r/min
LL 483449/418d: 762.000 mm | D: 889.000 mm | T: 69.850 mm | C: 1230 kN | C0: 3800 kN | Limiting speed: 560 r/min
L 183449/410d: 762.000 mm | D: 889.000 mm | T: 88.900 mm | C: 1870 kN | C0: 5850 kN | Limiting speed: 530 r/min
EE 763330/410d: 838.200 mm | D: 1041.400 mm | T: 93.662 mm | C: 1900 kN | C0: 4800 kN | Limiting speed: 460 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
