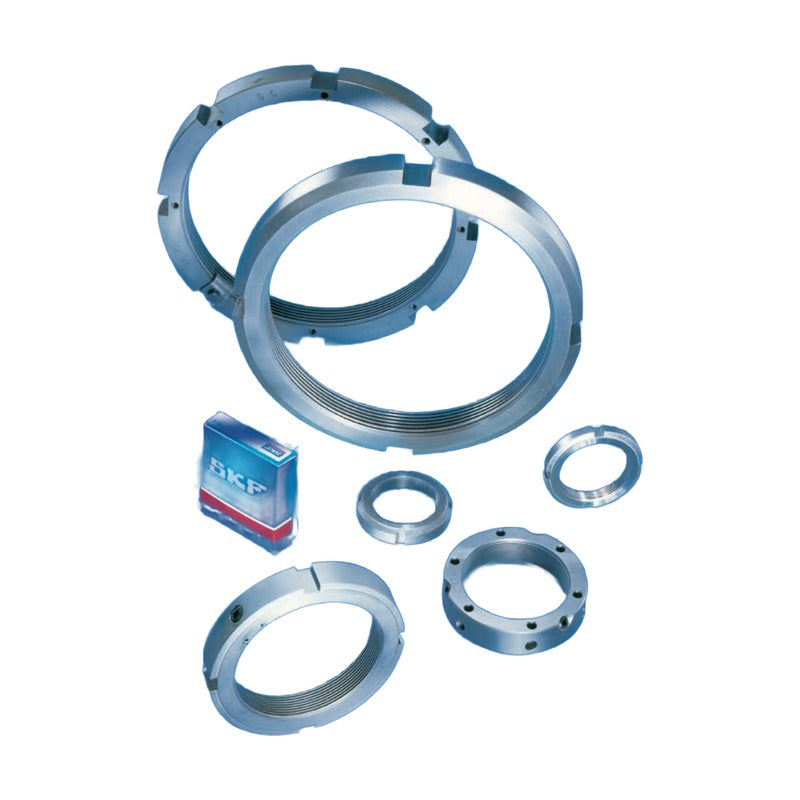

SKF KMFE Lock Nuts with Locking Screw

SKF KMFE Lock Nuts with Locking Screw

SKF KMFE lock nuts with a locking screw, used mainly with adapter sleeves of the H .. E design where a lock washer cannot be used.

Key features

  • Locked with a set screw pressing a plug against the thread
  • Wider nut with stepped face to clear the bearing cage
  • Metric fine thread M 20x1 to M 130x2
  • Used with H .. E adapter sleeves

Specifications

Product Lock nut with locking screw
Thread Metric fine thread
Ca Axial static load carrying capacity
Source SKF General Catalogue 6000, p. 1023
KMFE 4 Thread: M 20x1 | Outside dia.: 32 mm | Width: 9.5 mm | Axial load Ca: 24 kN | Mass: 0.031 kg
KMFE 5 Thread: M 25x1.5 | Outside dia.: 38 mm | Width: 10.5 mm | Axial load Ca: 31.5 kN | Mass: 0.042 kg
KMFE 6 Thread: M 30x1.5 | Outside dia.: 45 mm | Width: 10.5 mm | Axial load Ca: 36.5 kN | Mass: 0.058 kg
KMFE 7 Thread: M 35x1.5 | Outside dia.: 52 mm | Width: 11.5 mm | Axial load Ca: 50 kN | Mass: 0.080 kg
KMFE 8 Thread: M 40x1.5 | Outside dia.: 58 mm | Width: 13 mm | Axial load Ca: 62 kN | Mass: 0.11 kg
KMFE 9 Thread: M 45x1.5 | Outside dia.: 65 mm | Width: 13 mm | Axial load Ca: 78 kN | Mass: 0.14 kg
KMFE 10 Thread: M 50x1.5 | Outside dia.: 70 mm | Width: 14 mm | Axial load Ca: 91.5 kN | Mass: 0.16 kg
KMFE 11 Thread: M 55x2 | Outside dia.: 75 mm | Width: 14 mm | Axial load Ca: 91.5 kN | Mass: 0.18 kg
KMFE 12 Thread: M 60x2 | Outside dia.: 80 mm | Width: 14 mm | Axial load Ca: 95 kN | Mass: 0.19 kg
KMFE 13 Thread: M 65x2 | Outside dia.: 85 mm | Width: 15 mm | Axial load Ca: 108 kN | Mass: 0.23 kg
KMFE 14 Thread: M 70x2 | Outside dia.: 92 mm | Width: 15 mm | Axial load Ca: 118 kN | Mass: 0.26 kg
KMFE 15 Thread: M 75x2 | Outside dia.: 98 mm | Width: 16 mm | Axial load Ca: 134 kN | Mass: 0.32 kg
KMFE 16 Thread: M 80x2 | Outside dia.: 105 mm | Width: 18 mm | Axial load Ca: 173 kN | Mass: 0.42 kg
KMFE 17 Thread: M 85x2 | Outside dia.: 110 mm | Width: 19 mm | Axial load Ca: 190 kN | Mass: 0.46 kg
KMFE 18 Thread: M 90x2 | Outside dia.: 120 mm | Width: 19 mm | Axial load Ca: 216 kN | Mass: 0.58 kg
KMFE 19 Thread: M 95x2 | Outside dia.: 125 mm | Width: 20 mm | Axial load Ca: 236 kN | Mass: 0.66 kg
KMFE 20 Thread: M 100x2 | Outside dia.: 130 mm | Width: 21 mm | Axial load Ca: 255 kN | Mass: 0.71 kg
KMFE 21 Thread: M 105x2 | Outside dia.: 140 mm | Width: 21 mm | Axial load Ca: 290 kN | Mass: 0.85 kg
KMFE 22 Thread: M 110x2 | Outside dia.: 145 mm | Width: 21.5 mm | Axial load Ca: 310 kN | Mass: 0.93 kg
KMFE 23 Thread: M 115x2 | Outside dia.: 150 mm | Width: 25 mm | Axial load Ca: 315 kN | Mass: 1.11 kg
KMFE 24 Thread: M 120x2 | Outside dia.: 155 mm | Width: 26 mm | Axial load Ca: 340 kN | Mass: 1.16 kg
KMFE 25 Thread: M 125x2 | Outside dia.: 160 mm | Width: 27 mm | Axial load Ca: 360 kN | Mass: 1.26 kg
KMFE 26 Thread: M 130x2 | Outside dia.: 165 mm | Width: 28 mm | Axial load Ca: 365 kN | Mass: 1.33 kg
