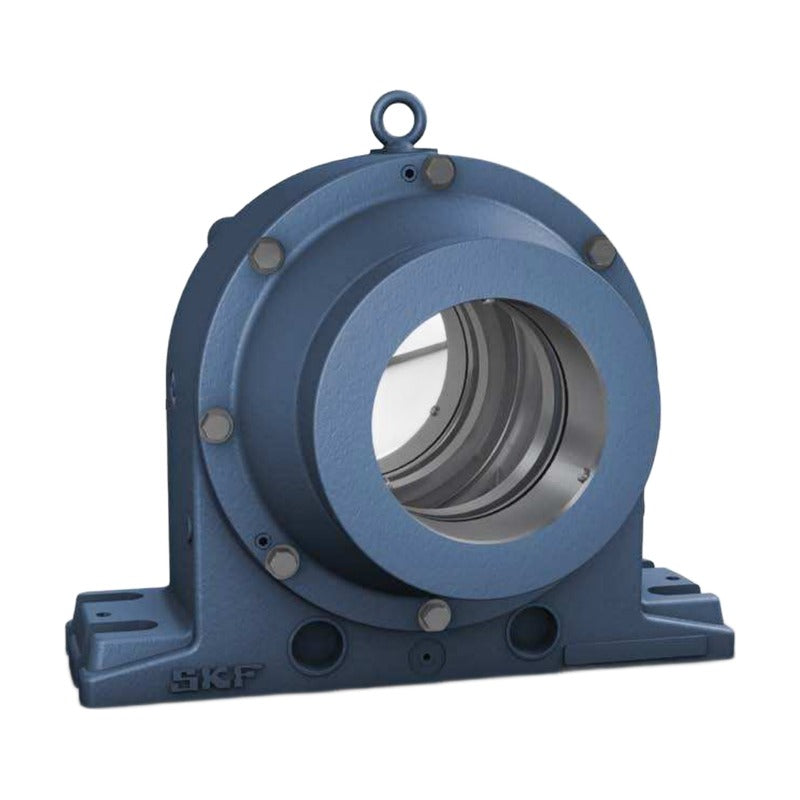

SKF SBPN and ASBPN Drying Cylinder Housings for Paper Machines

SKF SBPN and ASBPN Drying Cylinder Housings for Paper Machines

SKF SBPN drying cylinder housings (ASBPN short, wide-base version) for paper machine dryer sections, with locating (F) and non-locating (RA) variants; N9 versions have inch connection threads.

Key features

  • Designed for the drying cylinders of paper machines
  • F = locating housing, RA = non-locating housing for CARB bearings
  • ASBPN version with short, wide base
  • N9 suffix: inch connection threads
  • For spherical roller and CARB bearings on a tapered journal

Specifications

Series SBPN, ASBPN
Application Paper machine drying cylinders
Suffix F / RA Locating / non-locating
Suffix N9 Inch connection threads
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 606-613
SBPN 3136 F Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 520 mm
SBPN 3136 RA Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 520 mm
SBPN 3140 F Shaft: 200 mm | Bore Da: 340 mm | Centre height H1: 240 mm | Length L: 570 mm
SBPN 3140 RA Shaft: 200 mm | Bore Da: 340 mm | Centre height H1: 240 mm | Length L: 570 mm
SBPN 3144 F Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 640 mm
SBPN 3144 RA Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 640 mm
SBPN 3148 F Shaft: 240 mm | Bore Da: 400 mm | Centre height H1: 285 mm | Length L: 680 mm
SBPN 3148 RA Shaft: 240 mm | Bore Da: 400 mm | Centre height H1: 285 mm | Length L: 680 mm
SBPN 3152 F Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 720 mm
SBPN 3152 RA Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 720 mm
SBPN 3160 F Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 820 mm
SBPN 3160 RA Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 820 mm
SBPN 3164 F Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 880 mm
SBPN 3164 RA Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 880 mm
ASBPN 3136 F Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 400 mm
ASBPN 3136 RA Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 400 mm
ASBPN 3144 F Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 490 mm
ASBPN 3144 RA Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 490 mm
ASBPN 3152 F Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 580 mm
ASBPN 3152 RA Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 580 mm
ASBPN 3160 F Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 670 mm
ASBPN 3160 RA Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 670 mm
ASBPN 3164 F Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 710 mm
ASBPN 3164 RA Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 710 mm
SBPN 3136 FN9 Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 520 mm
SBPN 3136 RAN9 Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 520 mm
SBPN 3140 FN9 Shaft: 200 mm | Bore Da: 340 mm | Centre height H1: 240 mm | Length L: 570 mm
SBPN 3140 RAN9 Shaft: 200 mm | Bore Da: 340 mm | Centre height H1: 240 mm | Length L: 570 mm
SBPN 3144 FN9 Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 640 mm
SBPN 3144 RAN9 Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 640 mm
SBPN 3148 FN9 Shaft: 240 mm | Bore Da: 400 mm | Centre height H1: 285 mm | Length L: 680 mm
SBPN 3148 RAN9 Shaft: 240 mm | Bore Da: 400 mm | Centre height H1: 285 mm | Length L: 680 mm
SBPN 3152 FN9 Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 720 mm
SBPN 3152 RAN9 Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 720 mm
SBPN 3160 FN9 Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 820 mm
SBPN 3160 RAN9 Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 820 mm
SBPN 3164 FN9 Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 880 mm
SBPN 3164 RAN9 Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 880 mm
ASBPN 3136 FN9 Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 400 mm
ASBPN 3136 RAN9 Shaft: 180 mm | Bore Da: 300 mm | Centre height H1: 220 mm | Length L: 400 mm
ASBPN 3144 FN9 Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 490 mm
ASBPN 3144 RAN9 Shaft: 220 mm | Bore Da: 370 mm | Centre height H1: 265 mm | Length L: 490 mm
ASBPN 3152 FN9 Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 580 mm
ASBPN 3152 RAN9 Shaft: 260 mm | Bore Da: 440 mm | Centre height H1: 310 mm | Length L: 580 mm
ASBPN 3160 FN9 Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 670 mm
ASBPN 3160 RAN9 Shaft: 300 mm | Bore Da: 500 mm | Centre height H1: 335 mm | Length L: 670 mm
ASBPN 3164 FN9 Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 710 mm
ASBPN 3164 RAN9 Shaft: 320 mm | Bore Da: 540 mm | Centre height H1: 360 mm | Length L: 710 mm
Bearing HousingsSKF
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SBPN and ASBPN Drying Cylinder Housings for Paper Machines

Brand SKF·Bearing Housings

Available part numbers (48)

SBPN 3136 F, SBPN 3136 RA, SBPN 3140 F, SBPN 3140 RA, SBPN 3144 F, SBPN 3144 RA, SBPN 3148 F, SBPN 3148 RA, SBPN 3152 F, SBPN 3152 RA + 38 more — see full table ↓
