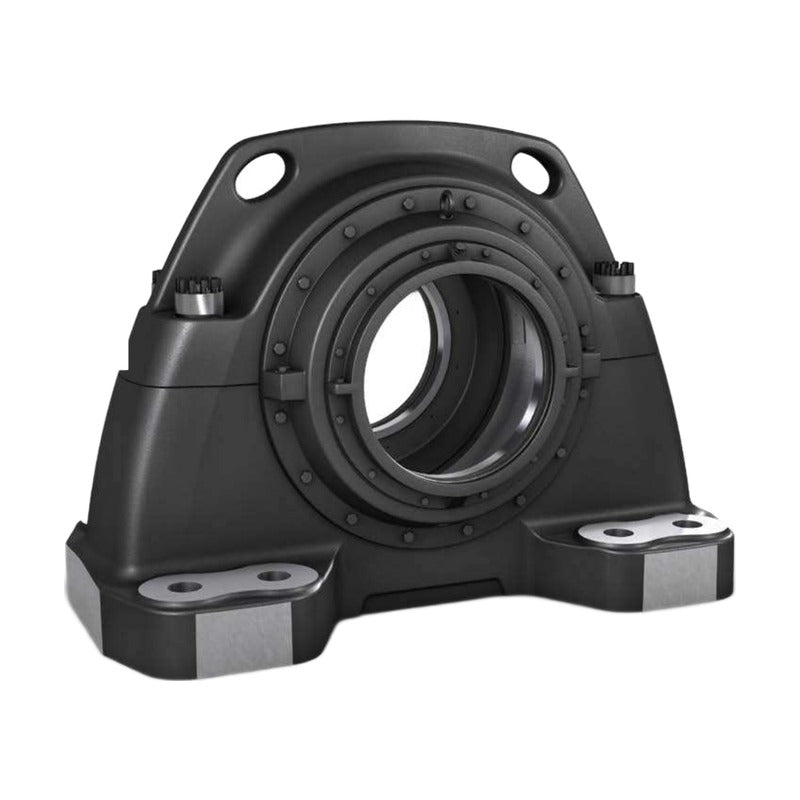

SKF SED 30, 31, 32 and 39 Series Split Plummer Block Housings

SKF SED 30, 31, 32 and 39 Series Split Plummer Block Housings

SKF SED split plummer block housings for very large spherical roller and CARB bearings in the 239, 230, 231 and 232 series on an adapter or withdrawal sleeve.

Key features

  • For shaft diameters from 430 to 800 mm
  • Split housing for large bearings on OH .. H adapter sleeves
  • Designed for heavy industries such as mining and mineral processing
  • Housing bodies in several sizes per bearing size
  • Supplied with seals and relubrication provisions

Specifications

Series SED 30, 31, 32, 39
Housing type Split plummer block
Bearing types Spherical roller, CARB
Mounting Adapter sleeve
Shaft range 430-800 mm
Source SKF Bearing housings and roller bearing units, p. 344-347
SED 3292 Shaft: 430 mm | Bore Da: 830 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 3296 Shaft: 450 mm | Bore Da: 870 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/500 Shaft: 470 mm | Bore Da: 830 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 32/500 Shaft: 470 mm | Bore Da: 920 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 31/530 Shaft: 500 mm | Bore Da: 870 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 32/530 Shaft: 500 mm | Bore Da: 980 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 30/560 Shaft: 530 mm | Bore Da: 820 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 31/560 Shaft: 530 mm | Bore Da: 920 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 32/560 Shaft: 530 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/600 Shaft: 560 mm | Bore Da: 800 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 30/600 Shaft: 560 mm | Bore Da: 870 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 31/600 Shaft: 560 mm | Bore Da: 980 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 32/600 Shaft: 560 mm | Bore Da: 1090 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/630 Shaft: 600 mm | Bore Da: 850 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 30/630 Shaft: 600 mm | Bore Da: 920 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/630 Shaft: 600 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/670 Shaft: 630 mm | Bore Da: 900 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/670 Shaft: 630 mm | Bore Da: 980 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/670 Shaft: 630 mm | Bore Da: 1090 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 32/670 Shaft: 630 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/710 Shaft: 670 mm | Bore Da: 950 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/710 Shaft: 670 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 31/710 Shaft: 670 mm | Bore Da: 1150 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 32/710 Shaft: 670 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/750 Shaft: 710 mm | Bore Da: 1000 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/750 Shaft: 710 mm | Bore Da: 1090 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 31/750 Shaft: 710 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 32/750 Shaft: 710 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/800 Shaft: 750 mm | Bore Da: 1060 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/800 Shaft: 750 mm | Bore Da: 1150 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 31/800 Shaft: 750 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/850 Shaft: 800 mm | Bore Da: 1120 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/850 Shaft: 800 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 31/850 Shaft: 800 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/900 Shaft: 850 mm | Bore Da: 1180 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/900 Shaft: 850 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 39/950 Shaft: 900 mm | Bore Da: 1250 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 30/950 Shaft: 900 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
Bearing HousingsSKF
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SED 30, 31, 32 and 39 Series Split Plummer Block Housings

Brand SKF·Bearing Housings

Available part numbers (38)

SED 3292, SED 3296, SED 31/500, SED 32/500, SED 31/530, SED 32/530, SED 30/560, SED 31/560, SED 32/560, SED 39/600 + 28 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SED 3292Shaft: 430 mm | Bore Da: 830 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 3296Shaft: 450 mm | Bore Da: 870 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/500Shaft: 470 mm | Bore Da: 830 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 32/500Shaft: 470 mm | Bore Da: 920 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 31/530Shaft: 500 mm | Bore Da: 870 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 32/530Shaft: 500 mm | Bore Da: 980 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 30/560Shaft: 530 mm | Bore Da: 820 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 31/560Shaft: 530 mm | Bore Da: 920 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 32/560Shaft: 530 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/600Shaft: 560 mm | Bore Da: 800 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 30/600Shaft: 560 mm | Bore Da: 870 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 31/600Shaft: 560 mm | Bore Da: 980 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 32/600Shaft: 560 mm | Bore Da: 1090 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/630Shaft: 600 mm | Bore Da: 850 mm | Centre height H1: 575 mm | Length L: 1600 mm | Mass: 2300 kg
SED 30/630Shaft: 600 mm | Bore Da: 920 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/630Shaft: 600 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3550 kg
SED 39/670Shaft: 630 mm | Bore Da: 900 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/670Shaft: 630 mm | Bore Da: 980 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 31/670Shaft: 630 mm | Bore Da: 1090 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 32/670Shaft: 630 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/710Shaft: 670 mm | Bore Da: 950 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/710Shaft: 670 mm | Bore Da: 1030 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 31/710Shaft: 670 mm | Bore Da: 1150 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 32/710Shaft: 670 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/750Shaft: 710 mm | Bore Da: 1000 mm | Centre height H1: 630 mm | Length L: 1700 mm | Mass: 2900 kg
SED 30/750Shaft: 710 mm | Bore Da: 1090 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 31/750Shaft: 710 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 32/750Shaft: 710 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/800Shaft: 750 mm | Bore Da: 1060 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/800Shaft: 750 mm | Bore Da: 1150 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 31/800Shaft: 750 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/850Shaft: 800 mm | Bore Da: 1120 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/850Shaft: 800 mm | Bore Da: 1220 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 31/850Shaft: 800 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2200 mm | Mass: 6500 kg
SED 39/900Shaft: 850 mm | Bore Da: 1180 mm | Centre height H1: 675 mm | Length L: 1900 mm | Mass: 3600 kg
SED 30/900Shaft: 850 mm | Bore Da: 1280 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 39/950Shaft: 900 mm | Bore Da: 1250 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
SED 30/950Shaft: 900 mm | Bore Da: 1360 mm | Centre height H1: 840 mm | Length L: 2100 mm | Mass: 4175 kg
