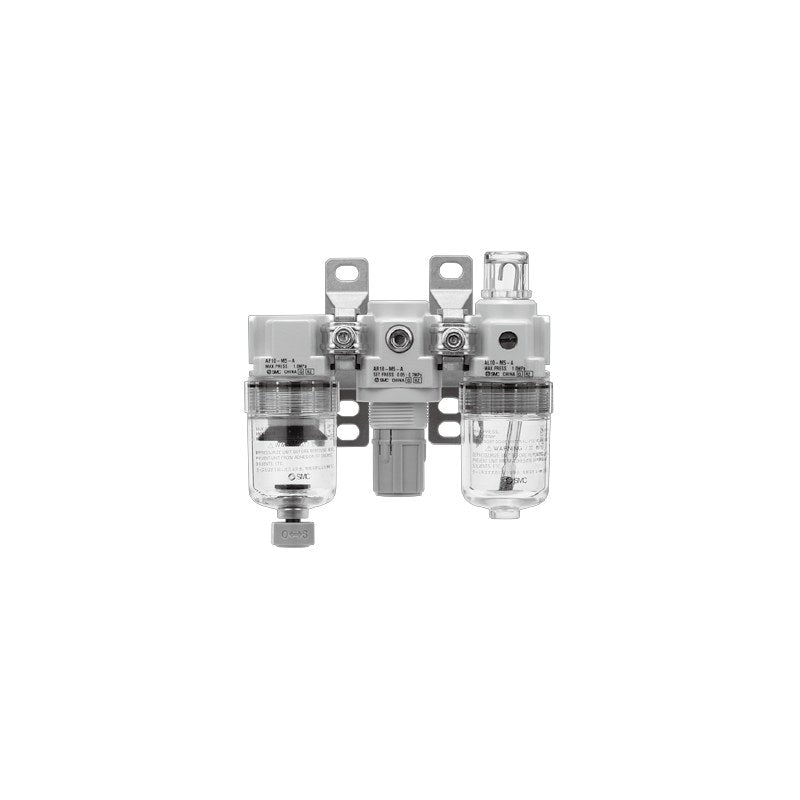

SMC AC10-A Modular F.R.L. Combination (Size 10, M5)

SMC AC10-A series miniature modular air combination units in M5 port size, in three configurations: filter + regulator + lubricator (AC10-A), filter regulator + lubricator (AC10A-A) and filter + regulator (AC10B-A).

Key features

Smallest modular F.R.L. body size (10) with M5 x 0.8 ports, continued in production alongside the AC-D series (sizes 20 to 60)
Configurations: AC10-A (AF10-A + AR10-A + AL10-A), AC10A-A (AW10-A + AL10-A), AC10B-A (AF10-A + AR10-A)
Float type auto drain N.C. (C) and round gauge G27-10-R1 (G, 1.0 MPa, packed unassembled) as listed options
T spacer (bracket repositioning) available as an attachment on AC10-A and AC10B-A
Semi-standard on order: 0.02 to 0.2 MPa setting (1), metal or nylon case (2/6), lubricator drain cock (3), non-relief (N), right-to-left flow (R), psi units (Z)

Specifications

Fluid	Air
Port size	M5 x 0.8
Ambient and fluid temperature	-5 to 60°C (no freezing)
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Set pressure range	0.05 to 0.7 MPa
Filtration rating	5 µm
Gauge port	1/16
Recommended lubricant	Class 1 turbine oil (ISO VG32)
Case material	Polycarbonate
Mass	0.27 kg (AC10), 0.20 kg (AC10A), 0.16 kg (AC10B)
Source	SMC Korea catalog AC10-A series (SMCKR_AC-A.pdf), p. 1-8

AC10-M5-A		Series: AC10-A \| Configuration: AF + AR + AL \| Auto drain: None \| Gauge: None
AC10-M5G-A		Series: AC10-A \| Configuration: AF + AR + AL \| Auto drain: None \| Gauge: Round (G)
AC10-M5C-A		Series: AC10-A \| Configuration: AF + AR + AL \| Auto drain: Float N.C. (C) \| Gauge: None
AC10-M5CG-A		Series: AC10-A \| Configuration: AF + AR + AL \| Auto drain: Float N.C. (C) \| Gauge: Round (G)
AC10A-M5-A		Series: AC10A-A \| Configuration: AW + AL \| Auto drain: None \| Gauge: None
AC10A-M5G-A		Series: AC10A-A \| Configuration: AW + AL \| Auto drain: None \| Gauge: Round (G)
AC10A-M5C-A		Series: AC10A-A \| Configuration: AW + AL \| Auto drain: Float N.C. (C) \| Gauge: None
AC10A-M5CG-A		Series: AC10A-A \| Configuration: AW + AL \| Auto drain: Float N.C. (C) \| Gauge: Round (G)
AC10B-M5-A		Series: AC10B-A \| Configuration: AF + AR \| Auto drain: None \| Gauge: None
AC10B-M5G-A		Series: AC10B-A \| Configuration: AF + AR \| Auto drain: None \| Gauge: Round (G)
AC10B-M5C-A		Series: AC10B-A \| Configuration: AF + AR \| Auto drain: Float N.C. (C) \| Gauge: None
AC10B-M5CG-A		Series: AC10B-A \| Configuration: AF + AR \| Auto drain: Float N.C. (C) \| Gauge: Round (G)
