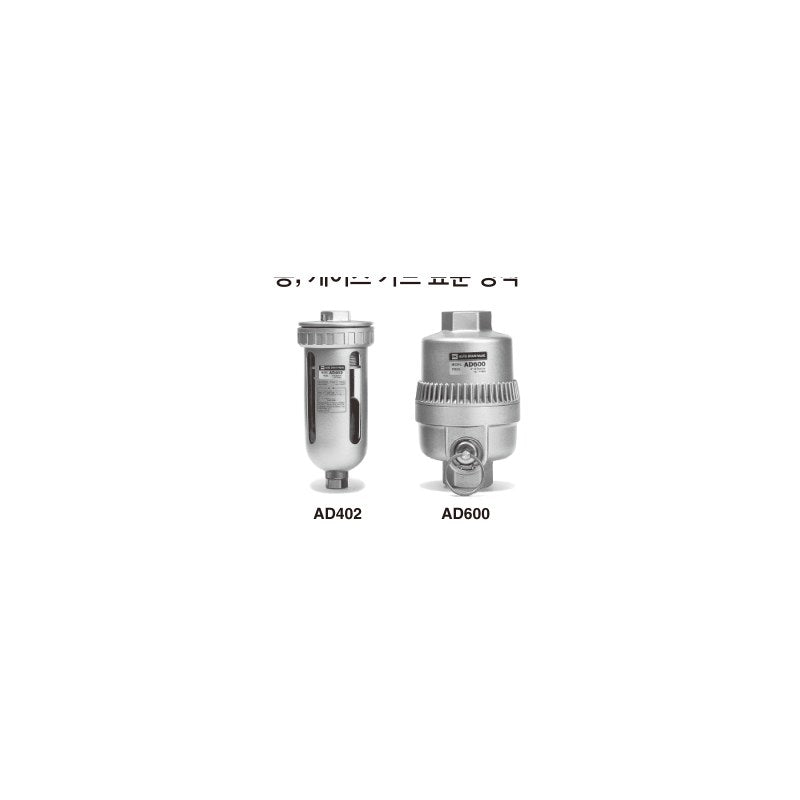

SMC AD600 Auto Drain Valve (Large Flow, Rc3/4 / Rc1)

SMC AD600 heavy-duty float auto drain valve for discharging condensate automatically from large compressed air lines, receivers and dryers.

Key features

Automatic and reliable drain discharge with no manual work
Resistant to dust and rust for dependable operation
Case guard fitted as standard
Port sizes 3/4 and 1 with equal-size drain outlet; NPT (N) and G (F) available on order

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Operating pressure range	0.3 to 1.0 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Mass	1310 g
Compressor requirement	3.7 kW (400 L/min ANR) or more
Source	SMC Korea catalog AD402/600 (SMCKR_AD402-600.pdf), p. 496-497 (PDF p. 1-2)

AD600-06		Port: Rc3/4 \| Drain outlet: 3/4
AD600-10		Port: Rc1 \| Drain outlet: 1

FiltersSMC

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AD600 Auto Drain Valve (Large Flow, Rc3/4 / Rc1)

Brand SMC·Filters

Available part numbers (2)

AD600-06, AD600-10

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
