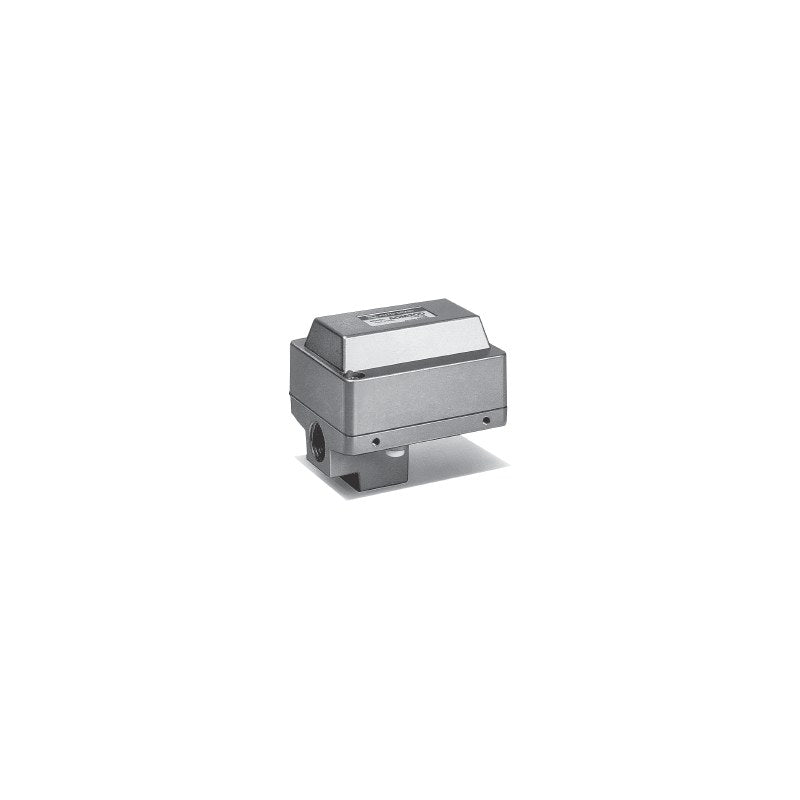

SMC ADM200 Motor Operated Auto Drain (AC/DC Coil Options)

SMC ADM200 Motor Operated Auto Drain (AC/DC Coil Options)

SMC ADM200 motor operated auto drain that opens its valve on a fixed cycle to discharge condensate reliably, even sludge-laden or viscous drain.

Key features

  • Motor-driven valve opens forcibly, discharging hardened or sticky drain reliably
  • Large discharge capacity per operation with large exhaust port; long drain piping possible
  • Low power consumption 4 W; can be mounted directly to compressor tanks
  • Operating time 2, 4, 6 or 8 s per minute selected to compressor size
  • NPT (N) and G (F) threads available on order

Specifications

Fluid Air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Operating cycle 1 cycle per minute (standard)
Power consumption 4 W
Mass 550 g
Source SMC Korea catalog ADM200 (SMCKR_ADM.pdf), p. 498-499 (PDF p. 1-2)
ADM200-031 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-031-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-031-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-031-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-032 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-032-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-032-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-032-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-033 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-033-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-033-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-033-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-034 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-034-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-034-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-034-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-035 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-035-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-035-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-035-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-036 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC24V | Operating time: 2 s/min (3.7-37 kW)
ADM200-036-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC24V | Operating time: 4 s/min (37-75 kW)
ADM200-036-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC24V | Operating time: 6 s/min (75-110 kW)
ADM200-036-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC24V | Operating time: 8 s/min (220-370 kW)
ADM200-037 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC12V | Operating time: 2 s/min (3.7-37 kW)
ADM200-037-4 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC12V | Operating time: 4 s/min (37-75 kW)
ADM200-037-6 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC12V | Operating time: 6 s/min (75-110 kW)
ADM200-037-8 Port: IN Rc3/8 / OUT Rc3/8 | Voltage: DC12V | Operating time: 8 s/min (220-370 kW)
ADM200-041 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-041-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-041-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-041-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC100V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-042 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-042-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-042-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-042-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC200V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-043 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-043-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-043-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-043-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC240V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-044 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-044-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-044-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-044-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC110V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-045 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 2 s/min (3.7-37 kW)
ADM200-045-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 4 s/min (37-75 kW)
ADM200-045-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 6 s/min (75-110 kW)
ADM200-045-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: AC220V 50/60Hz | Operating time: 8 s/min (220-370 kW)
ADM200-046 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC24V | Operating time: 2 s/min (3.7-37 kW)
ADM200-046-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC24V | Operating time: 4 s/min (37-75 kW)
ADM200-046-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC24V | Operating time: 6 s/min (75-110 kW)
ADM200-046-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC24V | Operating time: 8 s/min (220-370 kW)
ADM200-047 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC12V | Operating time: 2 s/min (3.7-37 kW)
ADM200-047-4 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC12V | Operating time: 4 s/min (37-75 kW)
ADM200-047-6 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC12V | Operating time: 6 s/min (75-110 kW)
ADM200-047-8 Port: IN Rc1/2 / OUT Rc3/8 | Voltage: DC12V | Operating time: 8 s/min (220-370 kW)
FiltersSMC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ADM200 Motor Operated Auto Drain (AC/DC Coil Options)

Brand SMC·Filters

Available part numbers (56)

ADM200-031, ADM200-031-4, ADM200-031-6, ADM200-031-8, ADM200-032, ADM200-032-4, ADM200-032-6, ADM200-032-8, ADM200-033, ADM200-033-4 + 46 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
