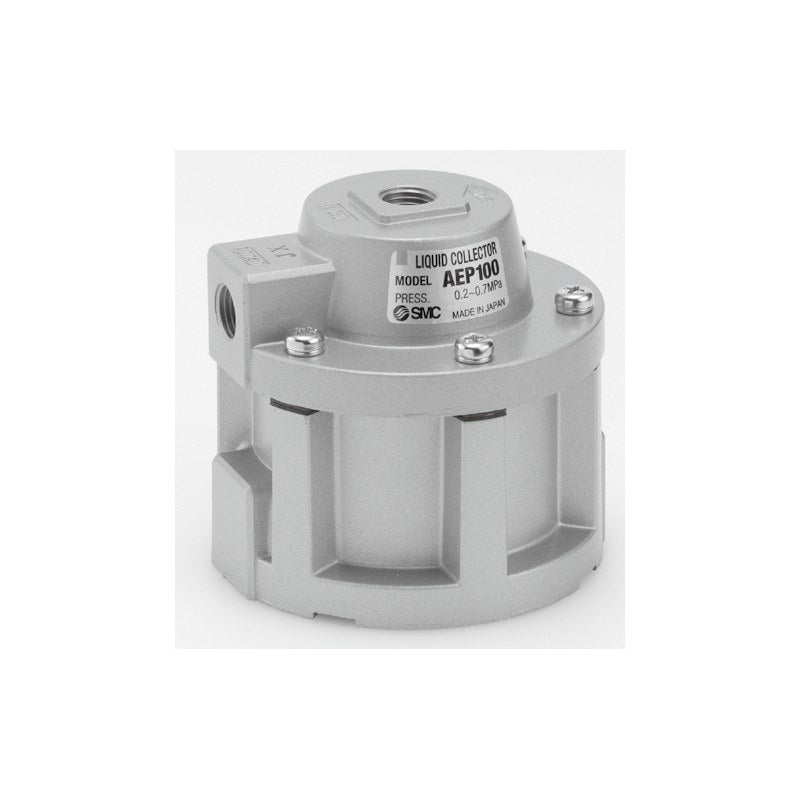

SMC AEP100 Liquid Collector (Exhaust Pressure Driven)

SMC AEP100 liquid collector that uses valve exhaust air to pump leaked lubricating or hydraulic oil back for reuse, with no other power source.

Key features

Recovers leaked hydraulic or lubricating oil around machines for reuse, avoiding waste of expensive oil
Driven by exhaust air from a switching valve that would otherwise be released to atmosphere
Eliminates manual oil collection work
Diaphragm pump with check balls, 40-mesh wire strainer; 10 mL per stroke and 8 m head at 0.5 MPa
Use with cylinders of ø40 bore or larger, 100 mm stroke or longer, 100 mm/s or faster; recommended silencer AN200-02

Specifications

Recovered fluid	Hydraulic oil, lubricating oil
Operating fluid	Air
Operating pressure	0.2 to 0.7 MPa
Fluid / recovered fluid temperature	5 to 60°C
Discharge volume	10 mL per cycle (0.5 MPa)
Discharge head	8 m (0.5 MPa)
Exhaust port effective area	21 mm² (Cv 1.1)
Port size	3x PT1/4
Filtration	40 mesh (wire mesh)
Mass	0.8 kg
Source	SMC Korea catalog AEP100-02 (SMCKR_AEP100.pdf), p. 1340-1341 (PDF p. 1-2)

AEP100-02

Model: AEP100 | Port: 3x PT1/4 | Discharge: 10 mL/cycle at 0.5 MPa
