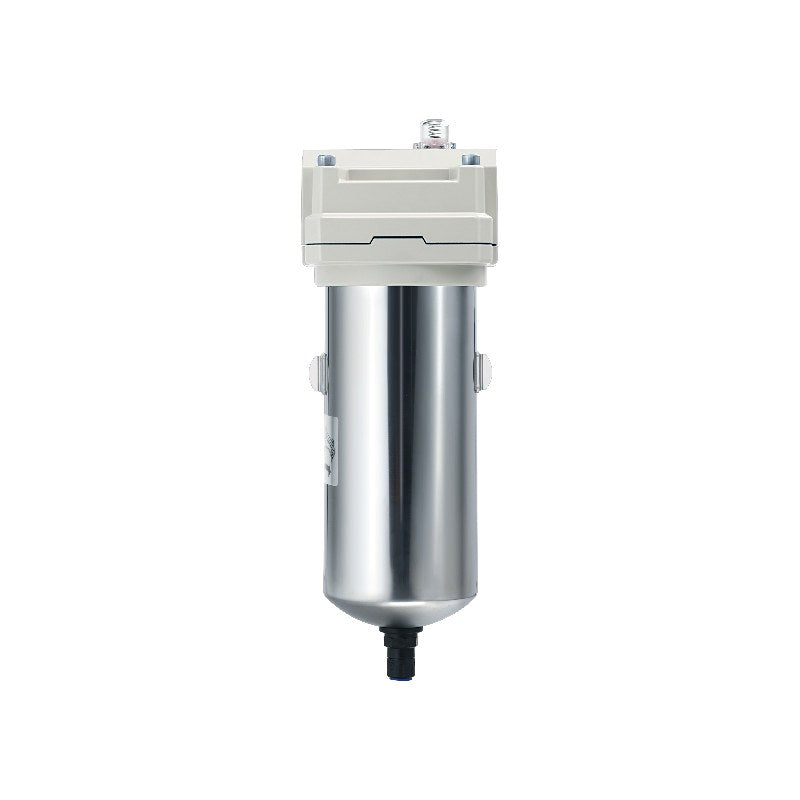

SMC AFF 70D-90D Large Flow Main Line Filter (1 to 2 in)

SMC AFF 70D-90D Large Flow Main Line Filter (1 to 2 in)

SMC AFF 70D to 90D series large-flow main line filter that removes solids and water droplets, 7.0 to 14.5 m3/min (ANR) with 1 to 2 inch ports.

Key features

  • 1 um filtration (99% capture), 99% water droplet removal, ISO8573-1:2010 class [4:7:4]
  • Replaces an AMG water separator + AFF pair: face-to-face shortened by approx. 320 mm (AFF90D)
  • Pressure drop 5 kPa or less; up to 52% lighter than previous models
  • Thin-wall stainless steel case with drop-prevention stopper
  • Standard N.O. float auto drain (1.0 MPa); H = 1.6 MPa auto drain, J = drain guide; bracket (B) as accessory

Specifications

Fluid Compressed air
Operating pressure range 0.1 to 1.0 MPa (H/J: up to 1.6 MPa)
Proof pressure 1.5 MPa
Ambient and fluid temperature -5 to 60 C (no freezing)
Body / flange material Aluminum die-cast
Case material Stainless steel
Mass 3.4 / 4.7 / 5.0 kg (70D / 80D / 90D)
Element replacement 2 years or when clogging checker operates
Port thread Rc standard; G (F) and NPT (N) available
Source SMC Korea catalog CAT.KS30-17C (SMCKR_AFF_AM_AMD.pdf), p. 1-5 (PDF p. 2-6)
AFF70D-10 Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF70D-10-H Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF70D-10-J Body size: 70D | Port size: Rc1 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF70D-14 Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF70D-14-H Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF70D-14-J Body size: 70D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AFF80D-14 Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 11.0 m3/min (ANR)
AFF80D-14-H Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AFF80D-14-J Body size: 80D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AFF90D-14 Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AFF90D-14-H Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AFF90D-14-J Body size: 90D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AFF90D-20 Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AFF90D-20-H Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AFF90D-20-J Body size: 90D | Port size: Rc2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
