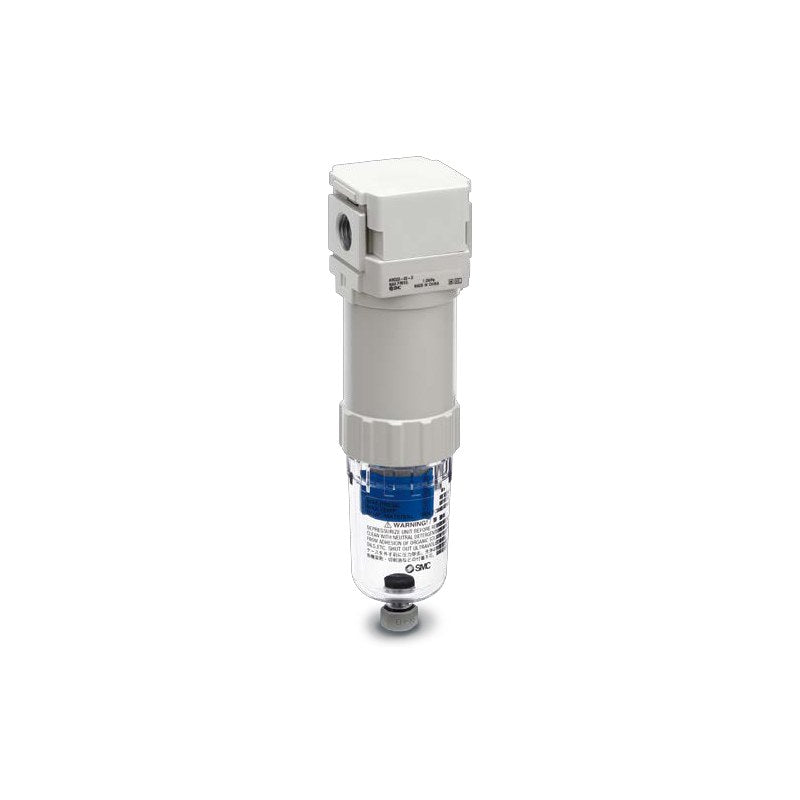

SMC AFF-D Modular Line Filter (Size 20 to 60)

SMC AFF-D Modular Line Filter (Size 20 to 60)

SMC AFF series modular line filter (-D generation) that removes large dust particles and water droplets from compressed air, sizes 20 to 60 for 300 to 3700 L/min (ANR).

Key features

  • 1 um filtration (99% capture) and 99% water droplet removal, ISO8573-1:2010 class [4:7:4]
  • One unit removes droplets and solids, so a separate water separator (AMG) is not required
  • Modular connection with AF/AR/AW/AM-D units via spacers; up to 50% lighter than previous models
  • Gray element end cap; clogging checker (L) and clogging switch (M/MM) available
  • Semi-standard: metal/nylon case, case guard, drain guide/barb fitting, reverse flow (R), psi/F unit (Z); bracket (B) packed separately

Specifications

Fluid Compressed air
Ambient and fluid temperature -5 to 60 C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Auto drain min. operating pressure N.C. 0.1 MPa (size 20) / 0.15 MPa; N.O. 0.1 MPa
Filtration 1 um (99% capture), water droplet removal 99%
Case material Polycarbonate (sizes 20-40), stainless steel (sizes 50/60)
Mass 0.19 / 0.39 / 0.79 / 1.23 / 1.46 kg (size 20/30/40/50/60)
Port thread Rc standard; NPT (N) and G (F) available
Source SMC Korea catalog CAT.KS30-22E (SMCKR_AFF_AM_AMD_AMK.pdf), p. 5, 8-10 (PDF p. 6, 9-11)
AFF20-01-D Body size: 20 | Port size: Rc1/8 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AFF20-01C-D Body size: 20 | Port size: Rc1/8 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AFF20-02-D Body size: 20 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AFF20-02C-D Body size: 20 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AFF30-02-D Body size: 30 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AFF30-02C-D Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AFF30-02D-D Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AFF30-03-D Body size: 30 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AFF30-03C-D Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AFF30-03D-D Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AFF40-02-D Body size: 40 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-02C-D Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-02D-D Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF40-03-D Body size: 40 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-03C-D Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-03D-D Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF40-04-D Body size: 40 | Port size: Rc1/2 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-04C-D Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-04D-D Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF50-06-D Body size: 50 | Port size: Rc3/4 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AFF50-06C-D Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AFF50-06D-D Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AFF50-10-D Body size: 50 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AFF50-10C-D Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AFF50-10D-D Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AFF60-10-D Body size: 60 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 3700 L/min (ANR)
AFF60-10C-D Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 3700 L/min (ANR)
AFF60-10D-D Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 3700 L/min (ANR)
FiltersSMC
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AFF-D Modular Line Filter (Size 20 to 60)

Brand SMC·Filters

Available part numbers (28)

AFF20-01-D, AFF20-01C-D, AFF20-02-D, AFF20-02C-D, AFF30-02-D, AFF30-02C-D, AFF30-02D-D, AFF30-03-D, AFF30-03C-D, AFF30-03D-D + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFF20-01-DBody size: 20 | Port size: Rc1/8 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AFF20-01C-DBody size: 20 | Port size: Rc1/8 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AFF20-02-DBody size: 20 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AFF20-02C-DBody size: 20 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AFF30-02-DBody size: 30 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AFF30-02C-DBody size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AFF30-02D-DBody size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AFF30-03-DBody size: 30 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AFF30-03C-DBody size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AFF30-03D-DBody size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AFF40-02-DBody size: 40 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-02C-DBody size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-02D-DBody size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF40-03-DBody size: 40 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-03C-DBody size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-03D-DBody size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF40-04-DBody size: 40 | Port size: Rc1/2 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AFF40-04C-DBody size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AFF40-04D-DBody size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AFF50-06-DBody size: 50 | Port size: Rc3/4 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AFF50-06C-DBody size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AFF50-06D-DBody size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AFF50-10-DBody size: 50 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AFF50-10C-DBody size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AFF50-10D-DBody size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AFF60-10-DBody size: 60 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 3700 L/min (ANR)
AFF60-10C-DBody size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 3700 L/min (ANR)
AFF60-10D-DBody size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 3700 L/min (ANR)
