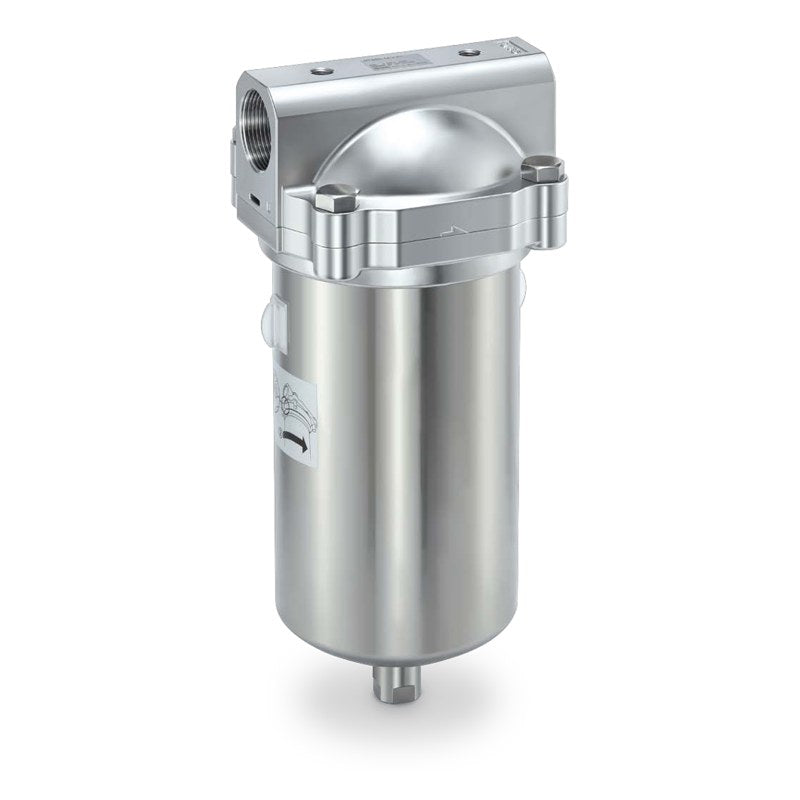

SMC AFF DS Stainless Steel Main Line Filter (70DS to 90DS)

SMC AFF DS Stainless Steel Main Line Filter (70DS to 90DS)

SMC AFF-DS series all-stainless main line filter for corrosive environments, removing solids and water droplets at 7.0 to 14.5 m3/min (ANR) with 1 to 2 inch ports.

Key features

  • Stainless steel body and case for improved corrosion resistance
  • 1 um filtration (99% capture), 99% water droplet removal, ISO8573-1:2010 class [4:7:4]
  • Pressure drop 5 kPa or less; case drop-prevention stopper, 40 mm min. maintenance space
  • Drain outlet: J drain guide (up to 1.6 MPa) or V drain cock with ball valve and nipple (packed, not assembled)
  • Branch port plug accessory (P1) available

Specifications

Fluid Air
Max. operating pressure 1.0 MPa (1.6 MPa with J)
Min. operating pressure 0.1 MPa
Proof pressure 1.5 MPa (2.4 MPa with J)
Ambient and fluid temperature -5 to 60 C (no freezing)
Body / case material Stainless steel
Mass 4.6 / 7.3 / 8.2 kg (70DS / 80DS / 90DS)
Port thread Rc standard; G (F) and NPT (N) available
Source SMC Korea catalog CAT.KS30-27A (SMCKR_AFF_DS.pdf), p. 1-4 (PDF p. 2-5)
AFF70DS-10-J Body size: 70DS | Port size: Rc1 | Drain outlet: Drain guide | Max. flow: 7.0 m3/min (ANR)
AFF70DS-10-V Body size: 70DS | Port size: Rc1 | Drain outlet: Drain cock (ball valve + nipple) | Max. flow: 7.0 m3/min (ANR)
AFF80DS-14-J Body size: 80DS | Port size: Rc1 1/2 | Drain outlet: Drain guide | Max. flow: 11.0 m3/min (ANR)
AFF80DS-14-V Body size: 80DS | Port size: Rc1 1/2 | Drain outlet: Drain cock (ball valve + nipple) | Max. flow: 11.0 m3/min (ANR)
AFF90DS-20-J Body size: 90DS | Port size: Rc2 | Drain outlet: Drain guide | Max. flow: 14.5 m3/min (ANR)
AFF90DS-20-V Body size: 90DS | Port size: Rc2 | Drain outlet: Drain cock (ball valve + nipple) | Max. flow: 14.5 m3/min (ANR)
