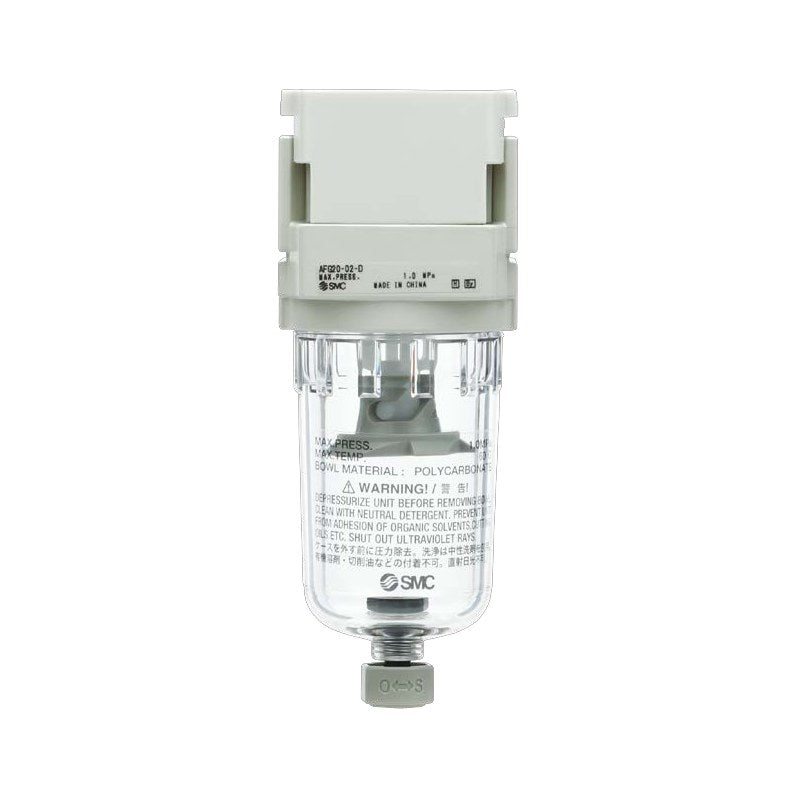

SMC AFG-D Modular Water Separator (AFG20-D to AFG40-D)

SMC AFG-D series modular water separator that removes water droplets from compressed air by centrifugal separation, without a filter element.

Key features

Element-less centrifugal construction: high flow and maintenance free
Water droplet removal rate 99% (SMC measurement conditions)
Modular connection with AC-D series F.R.L. units; compact design with minimal protrusions
Float type auto drain N.C. (C) or N.O. (D, size 30 and larger) available
Bracket (B) and semi-standard metal/nylon case, level gauge, drain guide, right-to-left flow (R) on order

Specifications

Fluid	Air
Ambient and fluid temperature	-5 to 60°C (no freezing)
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Auto drain min. operating pressure	N.C. 0.1 MPa (20), 0.15 MPa (30, 40); N.O. 0.1 MPa
Water droplet removal rate	99%
Max. flow capacity	1,000 / 1,500 / 4,000 L/min (ANR) for size 20 / 30 / 40
Drain capacity	8 cm³ (20), 25 cm³ (30), 45 cm³ (40)
Case material	Polycarbonate
Mass	0.09 kg (20) to 0.39 kg (40-06)
Source	SMC Korea catalog CAT.KS30-25A (SMCKR_AFG-D.pdf), p. 1-3

AFG20-01-D		Body size: 20 \| Port: Rc1/8 \| Auto drain: None
AFG20-01C-D		Body size: 20 \| Port: Rc1/8 \| Auto drain: N.C. (C)
AFG20-02-D		Body size: 20 \| Port: Rc1/4 \| Auto drain: None
AFG20-02C-D		Body size: 20 \| Port: Rc1/4 \| Auto drain: N.C. (C)
AFG30-02-D		Body size: 30 \| Port: Rc1/4 \| Auto drain: None
AFG30-02C-D		Body size: 30 \| Port: Rc1/4 \| Auto drain: N.C. (C)
AFG30-02D-D		Body size: 30 \| Port: Rc1/4 \| Auto drain: N.O. (D)
AFG30-03-D		Body size: 30 \| Port: Rc3/8 \| Auto drain: None
AFG30-03C-D		Body size: 30 \| Port: Rc3/8 \| Auto drain: N.C. (C)
AFG30-03D-D		Body size: 30 \| Port: Rc3/8 \| Auto drain: N.O. (D)
AFG40-02-D		Body size: 40 \| Port: Rc1/4 \| Auto drain: None
AFG40-02C-D		Body size: 40 \| Port: Rc1/4 \| Auto drain: N.C. (C)
AFG40-02D-D		Body size: 40 \| Port: Rc1/4 \| Auto drain: N.O. (D)
AFG40-03-D		Body size: 40 \| Port: Rc3/8 \| Auto drain: None
AFG40-03C-D		Body size: 40 \| Port: Rc3/8 \| Auto drain: N.C. (C)
AFG40-03D-D		Body size: 40 \| Port: Rc3/8 \| Auto drain: N.O. (D)
AFG40-04-D		Body size: 40 \| Port: Rc1/2 \| Auto drain: None
AFG40-04C-D		Body size: 40 \| Port: Rc1/2 \| Auto drain: N.C. (C)
AFG40-04D-D		Body size: 40 \| Port: Rc1/2 \| Auto drain: N.O. (D)
AFG40-06-D		Body size: 40-06 body \| Port: Rc3/4 \| Auto drain: None
AFG40-06C-D		Body size: 40-06 body \| Port: Rc3/4 \| Auto drain: N.C. (C)
AFG40-06D-D		Body size: 40-06 body \| Port: Rc3/4 \| Auto drain: N.O. (D)
