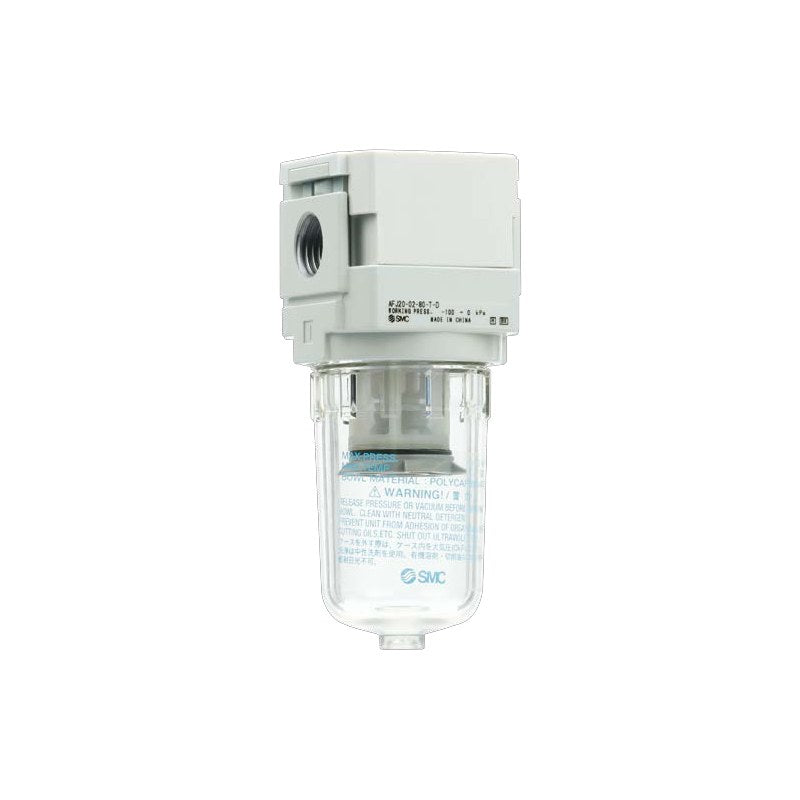

SMC AFJ-D Vacuum Filter (AFJ20-D to AFJ40-D, 5/40/80 µm)

SMC AFJ-D Vacuum Filter (AFJ20-D to AFJ40-D, 5/40/80 µm)

SMC AFJ-D series vacuum filter that prevents vacuum equipment trouble by removing contaminants, offered as a water droplet removal type or a high flow type with 5, 40 or 80 µm elements.

Key features

  • Two types: water droplet removal (S), with deflector swirl separation, and high flow (T) up to 660 L/min (ANR)
  • Filtration 5 µm (fiber element), 40 µm or 80 µm (resin mesh elements, washable and reusable)
  • Three body sizes, AFJ20-D to AFJ40-D, Rc1/8 to Rc1/2 ports
  • Polycarbonate case with case guard on AFJ30-D and AFJ40-D
  • Bracket (B), nylon case (6), right-to-left flow (R), NPT (N) and G (F) threads are ordered as options

Specifications

Fluid Air
Operating pressure range -100 to 0 kPa
Proof pressure 0.5 MPa
Vacuum break pressure 0.5 MPa or less
Ambient and fluid temperature -5 to 60°C (no freezing)
Drain capacity 8 cm³ (AFJ20-D), 25 cm³ (AFJ30-D), 45 cm³ (AFJ40-D)
Case material Polycarbonate
Mass 0.09 kg (AFJ20-D), 0.17 kg (AFJ30-D), 0.35 kg (AFJ40-D)
Port thread Rc (standard)
Source SMC Korea catalog CAT.KS100-165A AFJ-D Series (SMCKR_AFJ-D.pdf), p. 2-3 (PDF p. 3-4)
AFJ20-01-5-S-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 80 L/min (ANR)
AFJ20-01-5-T-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 100 L/min (ANR)
AFJ20-01-40-S-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 100 L/min (ANR)
AFJ20-01-40-T-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 120 L/min (ANR)
AFJ20-01-80-S-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 100 L/min (ANR)
AFJ20-01-80-T-D Body size: AFJ20-D | Port size: Rc1/8 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 120 L/min (ANR)
AFJ20-02-5-S-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 100 L/min (ANR)
AFJ20-02-5-T-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 140 L/min (ANR)
AFJ20-02-40-S-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 130 L/min (ANR)
AFJ20-02-40-T-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 180 L/min (ANR)
AFJ20-02-80-S-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 130 L/min (ANR)
AFJ20-02-80-T-D Body size: AFJ20-D | Port size: Rc1/4 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 180 L/min (ANR)
AFJ30-02-5-S-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 180 L/min (ANR)
AFJ30-02-5-T-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 190 L/min (ANR)
AFJ30-02-40-S-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 210 L/min (ANR)
AFJ30-02-40-T-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 230 L/min (ANR)
AFJ30-02-80-S-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 210 L/min (ANR)
AFJ30-02-80-T-D Body size: AFJ30-D | Port size: Rc1/4 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 230 L/min (ANR)
AFJ30-03-5-S-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 230 L/min (ANR)
AFJ30-03-5-T-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 250 L/min (ANR)
AFJ30-03-40-S-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 340 L/min (ANR)
AFJ30-03-40-T-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 380 L/min (ANR)
AFJ30-03-80-S-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 340 L/min (ANR)
AFJ30-03-80-T-D Body size: AFJ30-D | Port size: Rc3/8 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 380 L/min (ANR)
AFJ40-02-5-S-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 200 L/min (ANR)
AFJ40-02-5-T-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 210 L/min (ANR)
AFJ40-02-40-S-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 230 L/min (ANR)
AFJ40-02-40-T-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 250 L/min (ANR)
AFJ40-02-80-S-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 230 L/min (ANR)
AFJ40-02-80-T-D Body size: AFJ40-D | Port size: Rc1/4 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 250 L/min (ANR)
AFJ40-03-5-S-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 310 L/min (ANR)
AFJ40-03-5-T-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 350 L/min (ANR)
AFJ40-03-40-S-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 390 L/min (ANR)
AFJ40-03-40-T-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 480 L/min (ANR)
AFJ40-03-80-S-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 390 L/min (ANR)
AFJ40-03-80-T-D Body size: AFJ40-D | Port size: Rc3/8 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 480 L/min (ANR)
AFJ40-04-5-S-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 5 µm | Type: Water droplet removal (S) | Recommended flow: 370 L/min (ANR)
AFJ40-04-5-T-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 5 µm | Type: High flow (T) | Recommended flow: 440 L/min (ANR)
AFJ40-04-40-S-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 40 µm | Type: Water droplet removal (S) | Recommended flow: 500 L/min (ANR)
AFJ40-04-40-T-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 40 µm | Type: High flow (T) | Recommended flow: 660 L/min (ANR)
AFJ40-04-80-S-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 80 µm | Type: Water droplet removal (S) | Recommended flow: 500 L/min (ANR)
AFJ40-04-80-T-D Body size: AFJ40-D | Port size: Rc1/2 | Filtration: 80 µm | Type: High flow (T) | Recommended flow: 660 L/min (ANR)
