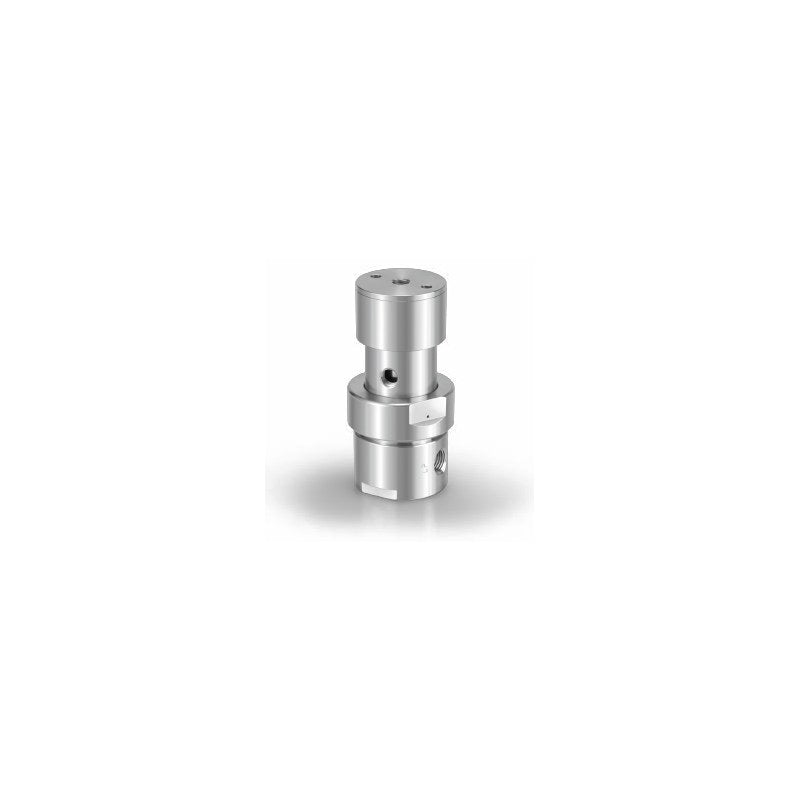

SMC AK10PA Air-Operated General Gas Regulator (Low Flow)

SMC AK10PA Air-Operated General Gas Regulator (Low Flow)

SMC AK10PA series air-operated general gas regulator in stainless steel or brass, outlet pressure set by pilot air, inlet up to 24.1 MPa.

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • Stainless steel (SUS316) or brass body for general and specialty gases; Ni-Cr-Mo internals available for corrosive gases
  • Inlet up to 3500 psig (24.1 MPa); flow below 30 slpm, HF below 120 slpm
  • NPT1/4 female, 1/4 or 3/8 compression fitting connections
  • 2P, 3P, 4P bodies (stainless) and 4PL, 5PC bodies (stainless or brass)
  • Listed codes: gauge ports "0" (NPT1/4 port, no gauge); gauges (V3 to 40), plug C, MPA scale, VS/PK/TF seat and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
External leakage 1x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Port connection NPT female thread or compression fitting
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 24.1 MPa
Internal volume 8 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 744-745
AK10PAB4PL4400 Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PAB4PL4T4T00 Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PAB4PL6T6T00 Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PAB5PC44000 Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PAB5PC4T4T000 Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PAB5PC6T6T000 Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK10PAS2P44 Material: SUS316 | Ports: 2 ports | Connection: NPT1/4 female
AK10PAS2P4T4T Material: SUS316 | Ports: 2 ports | Connection: 1/4 compression fitting
AK10PAS2P6T6T Material: SUS316 | Ports: 2 ports | Connection: 3/8 compression fitting
AK10PAS3P440 Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK10PAS3P4T4T0 Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK10PAS3P6T6T0 Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK10PAS4P4400 Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: NPT1/4 female
AK10PAS4P4T4T00 Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 compression fitting
AK10PAS4P6T6T00 Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 compression fitting
AK10PAS4PL4400 Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PAS4PL4T4T00 Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PAS4PL6T6T00 Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PAS5PC44000 Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PAS5PC4T4T000 Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PAS5PC6T6T000 Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK10PASH2P44 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: NPT1/4 female
AK10PASH2P4T4T Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 compression fitting
AK10PASH2P6T6T Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 compression fitting
AK10PASH3P440 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK10PASH3P4T4T0 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK10PASH3P6T6T0 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK10PASH4P4400 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: NPT1/4 female
AK10PASH4P4T4T00 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 compression fitting
AK10PASH4P6T6T00 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 compression fitting
AK10PASH4PL4400 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PASH4PL4T4T00 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PASH4PL6T6T00 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PASH5PC44000 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PASH5PC4T4T000 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PASH5PC6T6T000 Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
RegulatorsSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AK10PA Air-Operated General Gas Regulator (Low Flow)

Brand SMC·Regulators

Available part numbers (36)

AK10PAB4PL4400, AK10PAB4PL4T4T00, AK10PAB4PL6T6T00, AK10PAB5PC44000, AK10PAB5PC4T4T000, AK10PAB5PC6T6T000, AK10PAS2P44, AK10PAS2P4T4T, AK10PAS2P6T6T, AK10PAS3P440 + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AK10PAB4PL4400Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PAB4PL4T4T00Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PAB4PL6T6T00Material: Brass body | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PAB5PC44000Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PAB5PC4T4T000Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PAB5PC6T6T000Material: Brass body | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK10PAS2P44Material: SUS316 | Ports: 2 ports | Connection: NPT1/4 female
AK10PAS2P4T4TMaterial: SUS316 | Ports: 2 ports | Connection: 1/4 compression fitting
AK10PAS2P6T6TMaterial: SUS316 | Ports: 2 ports | Connection: 3/8 compression fitting
AK10PAS3P440Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK10PAS3P4T4T0Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK10PAS3P6T6T0Material: SUS316 | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK10PAS4P4400Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: NPT1/4 female
AK10PAS4P4T4T00Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 compression fitting
AK10PAS4P6T6T00Material: SUS316 | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 compression fitting
AK10PAS4PL4400Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PAS4PL4T4T00Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PAS4PL6T6T00Material: SUS316 | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PAS5PC44000Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PAS5PC4T4T000Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PAS5PC6T6T000Material: SUS316 | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK10PASH2P44Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: NPT1/4 female
AK10PASH2P4T4TMaterial: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 compression fitting
AK10PASH2P6T6TMaterial: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 compression fitting
AK10PASH3P440Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK10PASH3P4T4T0Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK10PASH3P6T6T0Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK10PASH4P4400Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: NPT1/4 female
AK10PASH4P4T4T00Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 compression fitting
AK10PASH4P6T6T00Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 compression fitting
AK10PASH4PL4400Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK10PASH4PL4T4T00Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK10PASH4PL6T6T00Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK10PASH5PC44000Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK10PASH5PC4T4T000Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK10PASH5PC6T6T000Material: SUS316, Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
